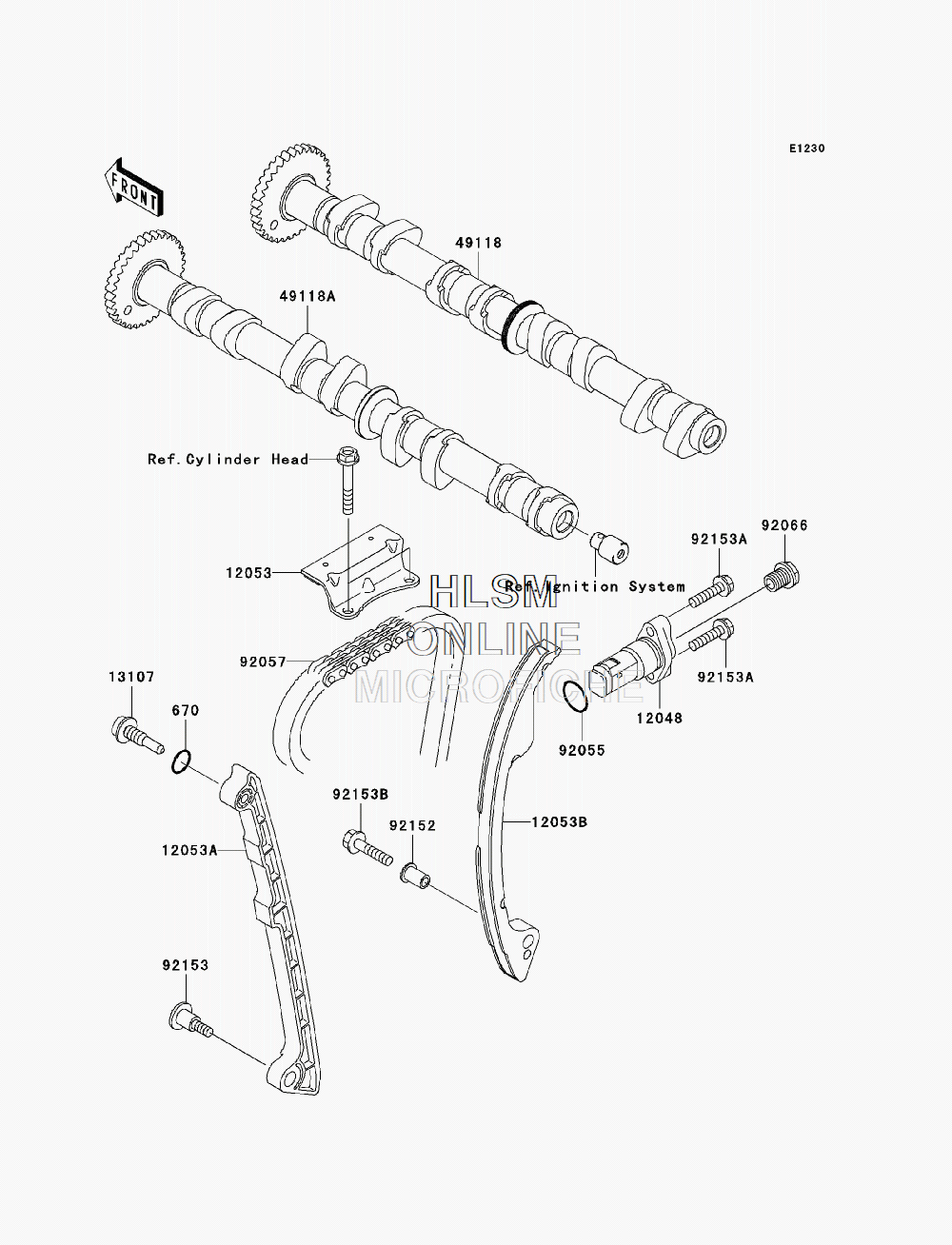

CAMSHAFT(S)/TENSIONER для Kawasaki STX (JT1500DAF) - 2010 года выпуска
-
№АртикулНазвание
-
670670D1509 O RING,9MMO RING,9MM
-
1204812048-3701 TENSIONER-ASSYTENSIONER-ASSY
-
1205312053-1432 GUIDE-CHAIN,UPPGUIDE-CHAIN,UPP
-
12053A12053-3701 GUIDE-CHAIN,EX SIDEGUIDE-CHAIN,EX SIDE
-
12053B12053-3705 GUIDE-CHAIN,IN SIDEGUIDE-CHAIN,IN SIDE
-
1310713107-0157 SHAFT,CHAIN GUIDESHAFT,CHAIN GUIDE
-
4911849118-3709 CAMSHAFT-COMP,INTAKECAMSHAFT-COMP,INTAKE
-
49118A49118-3710 CAMSHAFT-COMP,EXHAUSTCAMSHAFT-COMP,EXHAUST
-
9205592055-086 RING-O,18.8X1.9RING-O,18.8X1.9
-
9205792057-3714 CHAIN,CAM,98XRIGHT HAND2015-136LCHAIN,CAM,98XRIGHT HAND2015-136L
-
9206692066-3780 PLUGPLUG
-
9215292152-1167 COLLARCOLLAR
-
9215392153-1200 BOLT,SOCKET,6X24.5BOLT,SOCKET,6X24.5
-
92153A92153-3705 BOLT,6X25BOLT,6X25
-
92153B92153-3710 BOLT,6X28BOLT,6X28
