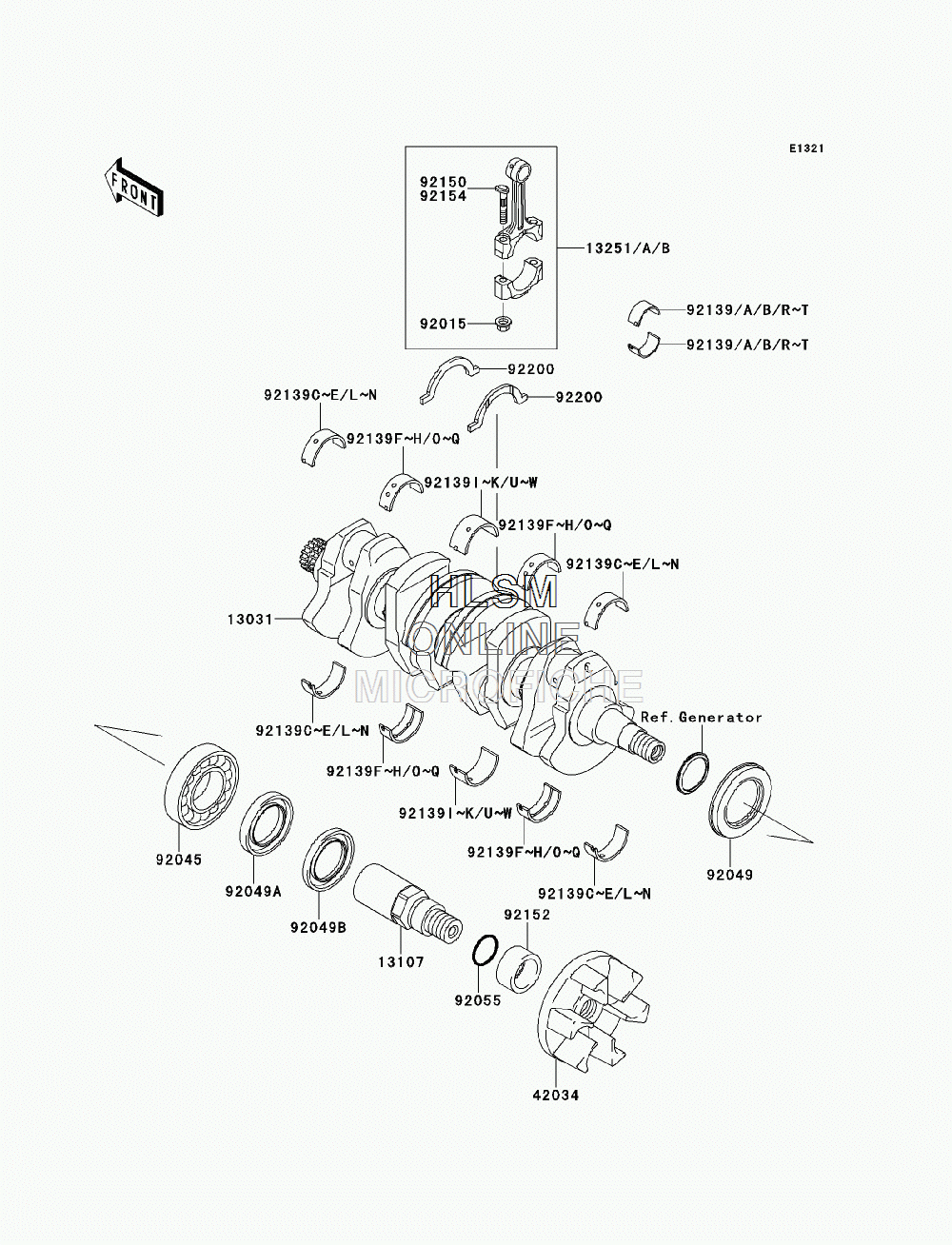

CRANKSHAFT для Kawasaki STX-15F (JT1500ABF) - 2011 года выпуска
-
№АртикулНазвание
-
1303113031-3742 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1310713107-3785 SHAFTSHAFT
-
1325113251-3702-II ROD-ASSY-CONNECTING,I (UP TO JTT50AE036455)ROD-ASSY-CONNECTING,I (UP TO JTT50AE036455)
-
13251A13251-3702-JJ ROD-ASSY-CONNECTING,J (UP TO JTT50AE036455)ROD-ASSY-CONNECTING,J (UP TO JTT50AE036455)
-
13251B13251-3703-II ROD-ASSY-CONNECTING,I (JTT50AE036456 AND ABOVE)ROD-ASSY-CONNECTING,I (JTT50AE036456 AND ABOVE)
-
4203442034-3711 COUPLINGCOUPLING
-
9201592015-1559 NUT,CONNECTING RODNUT,CONNECTING ROD
-
9204592045-3739 BEARING-BALL,6208ZZ AS2SBEARING-BALL,6208ZZ AS2S
-
9204992049-3736 SEAL-OIL,SD347626LEFT HANDSSEAL-OIL,SD347626LEFT HANDS
-
92049A92049-3737 SEAL-OIL,FPJ740628.5ZSSEAL-OIL,FPJ740628.5ZS
-
92049B92049-3738 SEAL-OIL,S40626NSSEAL-OIL,S40626NS
-
9205592055-091 RING-O,27.7X2.4RING-O,27.7X2.4
-
92139L92139-3702 BUSHING,CRANKSHAFT,#1 & #5,(BLUE)BUSHING,CRANKSHAFT,#1 & #5,(BLUE)
-
92139M92139-3703 BUSHING,CRANKSHAFT,#1 & #5,(BLACK)BUSHING,CRANKSHAFT,#1 & #5,(BLACK)
-
92139N92139-3704 BUSHING,CRANKSHAFT,#1 & #5,(BROWN)BUSHING,CRANKSHAFT,#1 & #5,(BROWN)
-
92139O92139-3705 BUSHING,CRANKSHAFT,#2 & #4,(BLUE)BUSHING,CRANKSHAFT,#2 & #4,(BLUE)
-
92139P92139-3706 BUSHING,CRANKSHAFT,#2 & #4,(BLACK)BUSHING,CRANKSHAFT,#2 & #4,(BLACK)
-
92139Q92139-3707 BUSHING,CRANKSHAFT,#2 & #4,(BROWN)BUSHING,CRANKSHAFT,#2 & #4,(BROWN)
-
92139R92139-3708 BUSHING,CONNECTING ROD,(BLUE)BUSHING,CONNECTING ROD,(BLUE)
-
92139S92139-3709 BUSHING,CONNECTING ROD,(BLACK)BUSHING,CONNECTING ROD,(BLACK)
-
92139T92139-3710 BUSHING,CONNECTING ROD,(BROWN)BUSHING,CONNECTING ROD,(BROWN)
-
92139U92139-3711 BUSHING,CRANKSHAFT,#3,(BLUE)BUSHING,CRANKSHAFT,#3,(BLUE)
-
92139V92139-3712 BUSHING,CRANKSHAFT,#3,(BLACK)BUSHING,CRANKSHAFT,#3,(BLACK)
-
92139W92139-3713 BUSHING,CRANKSHAFT,#3,(BROWN)BUSHING,CRANKSHAFT,#3,(BROWN)
-
9215092150-1362 BOLT,CONNECTING ROD,9MM (UP TO JTT50AE036455)BOLT,CONNECTING ROD,9MM (UP TO JTT50AE036455)
-
9215292152-3733 COLLAR,OUTPUT REAR,L=19.5COLLAR,OUTPUT REAR,L=19.5
-
9215492154-3720 BOLT,CONNECTING ROD,9MM (JTT50AE036456 AND ABOVE)BOLT,CONNECTING ROD,9MM (JTT50AE036456 AND ABOVE)
-
9220092200-3789 WASHERWASHER
