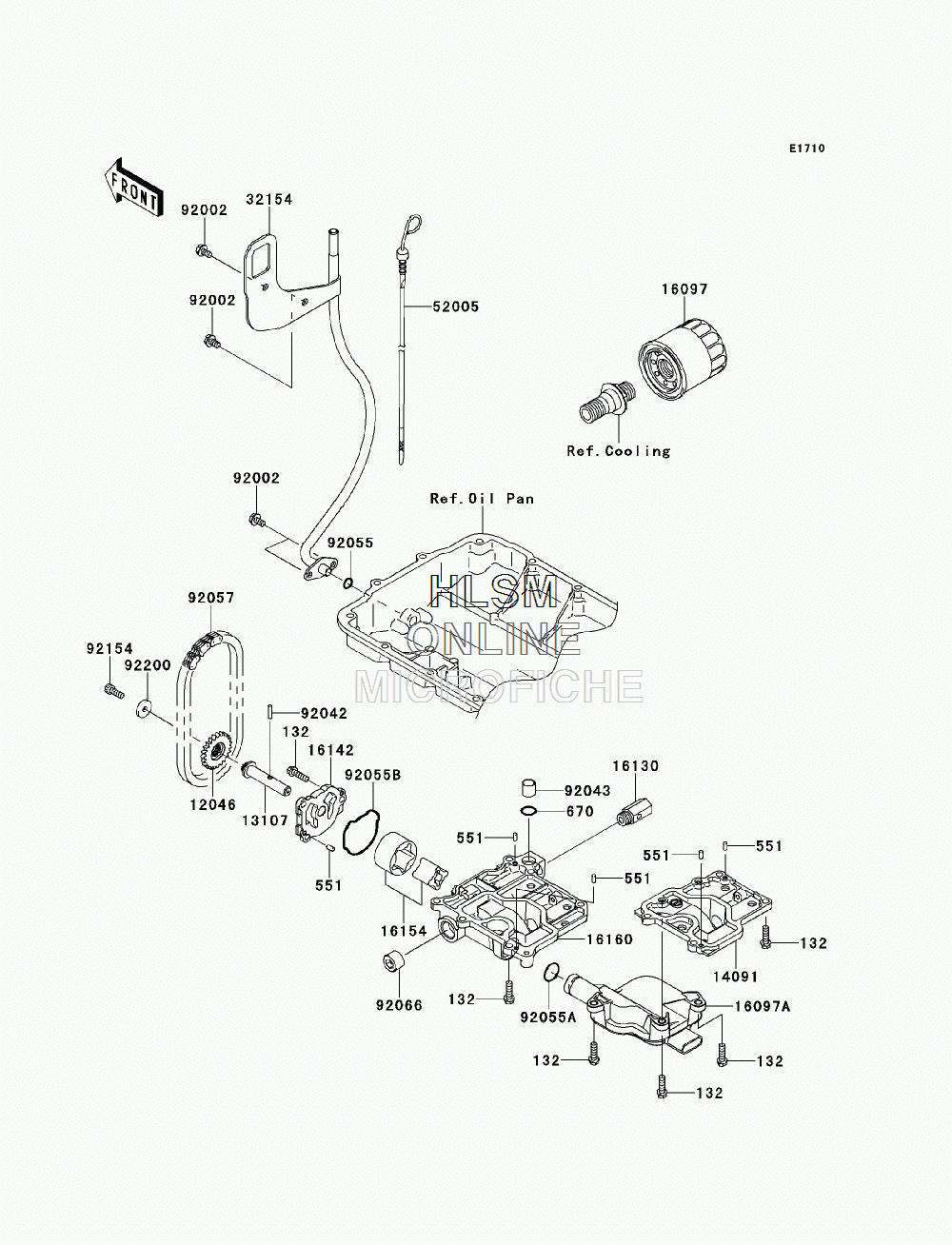

OIL PUMP для Kawasaki ULTRA 300LX (JT1500JBF) - 2011 года выпуска
-
№АртикулНазвание
-
132132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
551551R0408 PIN-DOWELPIN-DOWEL
-
670670D2014 O RING, 14MMO RING, 14MM
-
1204612046-3708 SPROCKET, 23TSPROCKET, 23T
-
1310713107-0730 SHAFTSHAFT
-
1409114091-3767 COVERCOVER
-
1609716097-0003 FILTER-ASSY-OILFILTER-ASSY-OIL
-
16097A16097-3702 FILTER-ASSY-OILFILTER-ASSY-OIL
-
1613016130-3701 VALVE-ASSY-RELIEFVALVE-ASSY-RELIEF
-
1614216142-3703 COVER-PUMPCOVER-PUMP
-
1615416154-1124 ROTOR-PUMPROTOR-PUMP
-
1616016160-0705 BODY, OIL PUMPBODY, OIL PUMP
-
3215432154-3721 PIPE, OIL LEVELPIPE, OIL LEVEL
-
5200552005-0716 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200292002-3763 BOLT, 6X12BOLT, 6X12
-
9204292042-014 PIN, DOWEL, 4X15.8PIN, DOWEL, 4X15.8
-
9204392043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9205592055-1150 RING-O, 9.8X2.4RING-O, 9.8X2.4
-
92055A92055-1332 RING-O, 19.8X1.9RING-O, 19.8X1.9
-
92055B92055-3764 RING-ORING-O
-
9205792057-3713 CHAIN, OIL PUMP, 98XRIGHT HAND2010-52LCHAIN, OIL PUMP, 98XRIGHT HAND2010-52L
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
9215492154-3709 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9220092200-0120 WASHER, 6X20X3.2WASHER, 6X20X3.2
