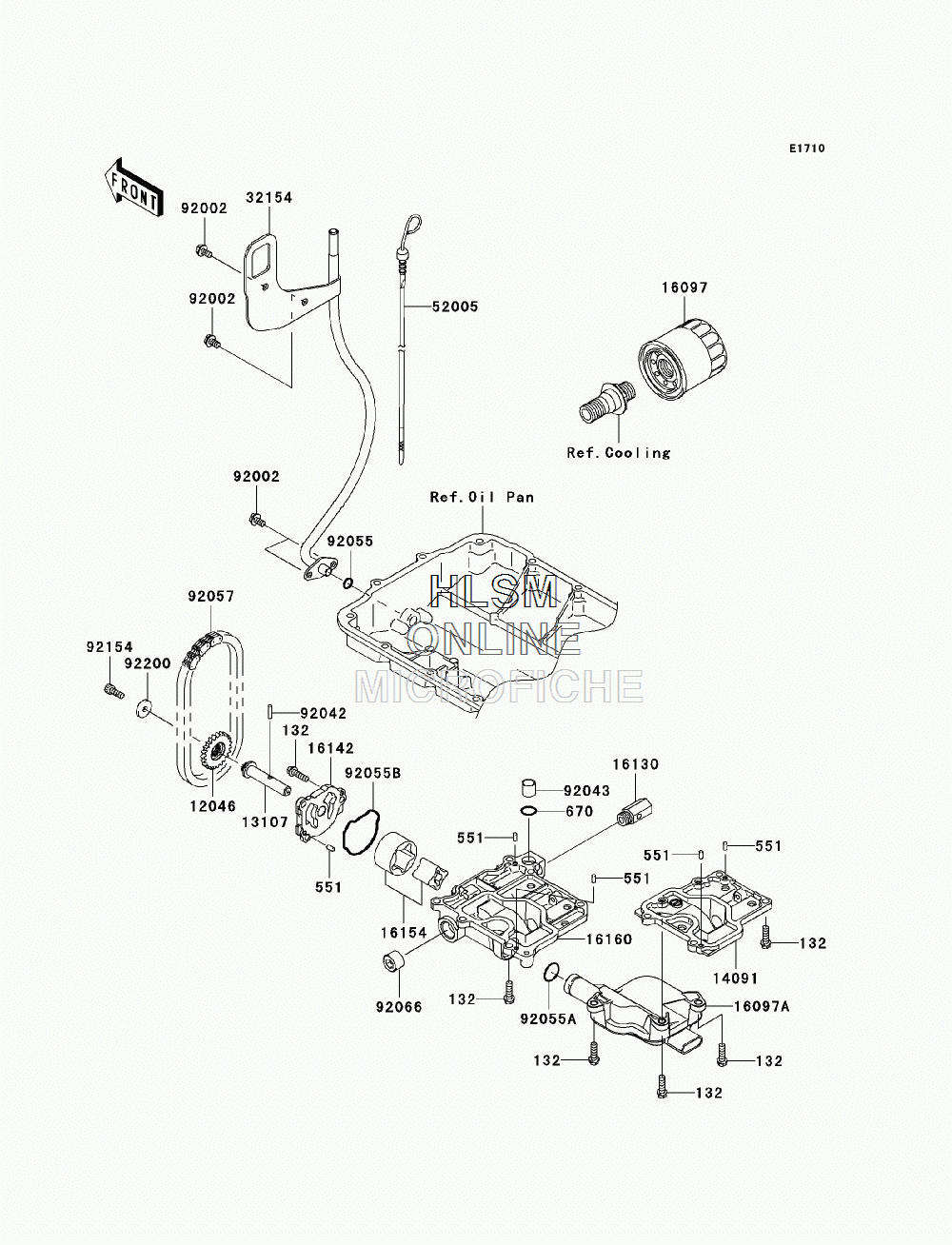

OIL PUMP для Kawasaki ULTRA 300X (JT1500HBF) - 2011 года выпуска
-
№АртикулНазвание
-
132132BD0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
551551R0408 PIN-DOWELPIN-DOWEL
-
670670D2014 O RING,14MMO RING,14MM
-
1204612046-3708 SPROCKET,23TSPROCKET,23T
-
1310713107-0730 SHAFTSHAFT
-
1409114091-3767 COVERCOVER
-
1609716097-0003 FILTER-ASSY-OILFILTER-ASSY-OIL
-
16097A16097-3702 FILTER-ASSY-OILFILTER-ASSY-OIL
-
1613016130-3701 VALVE-ASSY-RELIEFVALVE-ASSY-RELIEF
-
1614216142-3703 COVER-PUMPCOVER-PUMP
-
1615416154-1124 ROTOR-PUMPROTOR-PUMP
-
1616016160-0705 BODY,OIL PUMPBODY,OIL PUMP
-
3215432154-3721 PIPE,OIL LEVELPIPE,OIL LEVEL
-
5200552005-0716 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
9200292002-3763 BOLT,6X12BOLT,6X12
-
9204292042-014 PIN,DOWEL,4X15.8PIN,DOWEL,4X15.8
-
9204392043-1279 PIN,11.5X14X14PIN,11.5X14X14
-
9205592055-1150 RING-O,9.8X2.4RING-O,9.8X2.4
-
92055A92055-1332 RING-O,19.8X1.9RING-O,19.8X1.9
-
92055B92055-3764 RING-ORING-O
-
9205792057-3713 CHAIN,OIL PUMP,98XRIGHT HAND2010-52LCHAIN,OIL PUMP,98XRIGHT HAND2010-52L
-
9206692066-0002 PLUG,PT1/2X12.5PLUG,PT1/2X12.5
-
9215492154-3709 BOLT,SOCKET,6X16BOLT,SOCKET,6X16
-
9220092200-0120 WASHER,6X20X3.2WASHER,6X20X3.2
