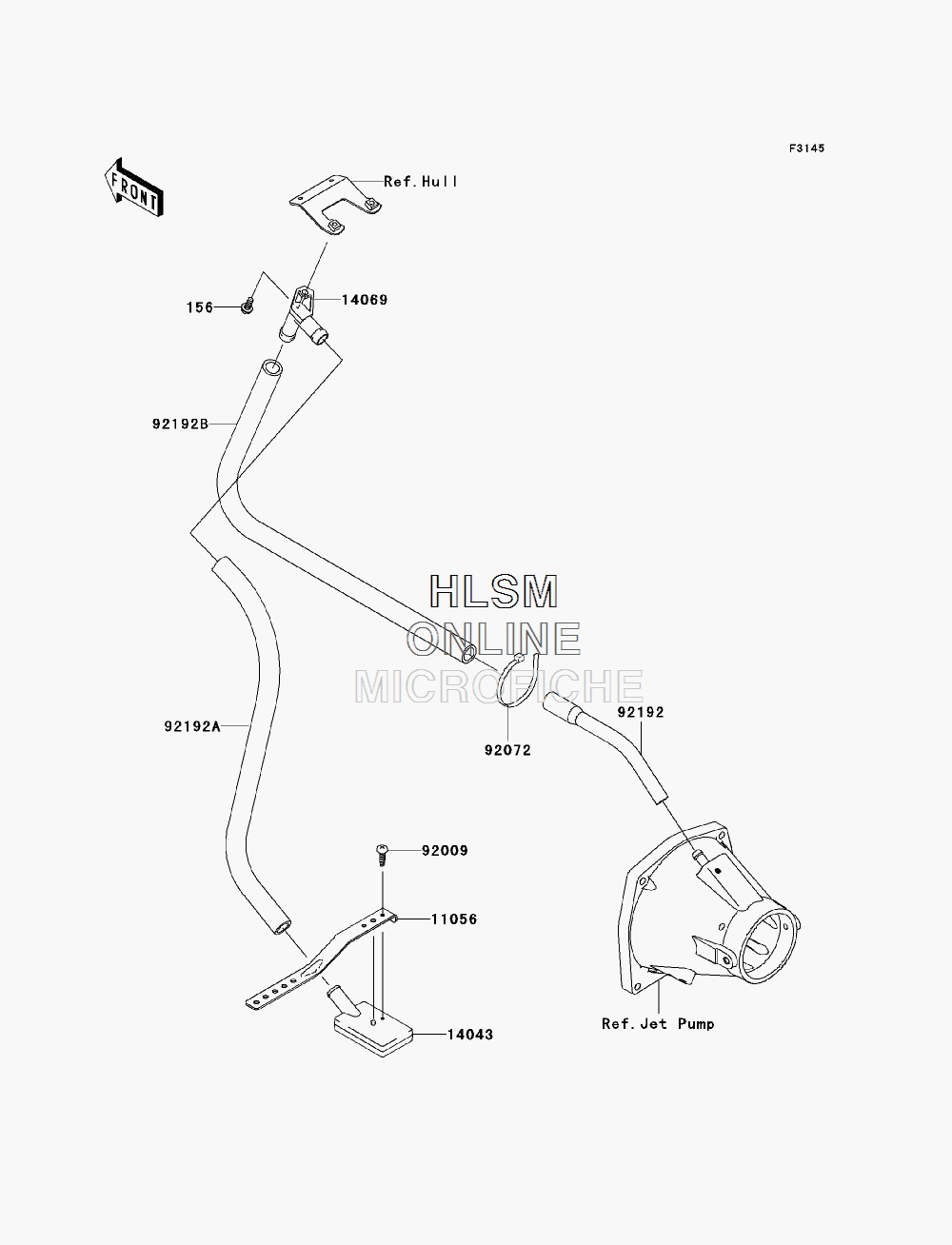

BILGE SYSTEM для Kawasaki ULTRA 300X (JT1500HBFA) - 2011 года выпуска
-
№АртикулНазвание
-
156156R0616 BOLT-WP,6X16BOLT-WP,6X16
-
1105611056-3721 BRACKET, LEFT HAND & RIGHT HANDBRACKET, LEFT HAND & RIGHT HAND
-
1404314043-3711 FILTERFILTER
-
1406914069-3708 BREATHERBREATHER
-
9200992009-3762 SCREW,TAPPING,4X14SCREW,TAPPING,4X14
-
9207292072-0105 BAND,L=188.85BAND,L=188.85
-
9219292192-3753 TUBE,HULL-NOZZLETUBE,HULL-NOZZLE
-
92192A92192-3755 TUBE,FILTER-BREATHERTUBE,FILTER-BREATHER
-
92192B92192-3826 TUBE,BREATHER-HULLTUBE,BREATHER-HULL
