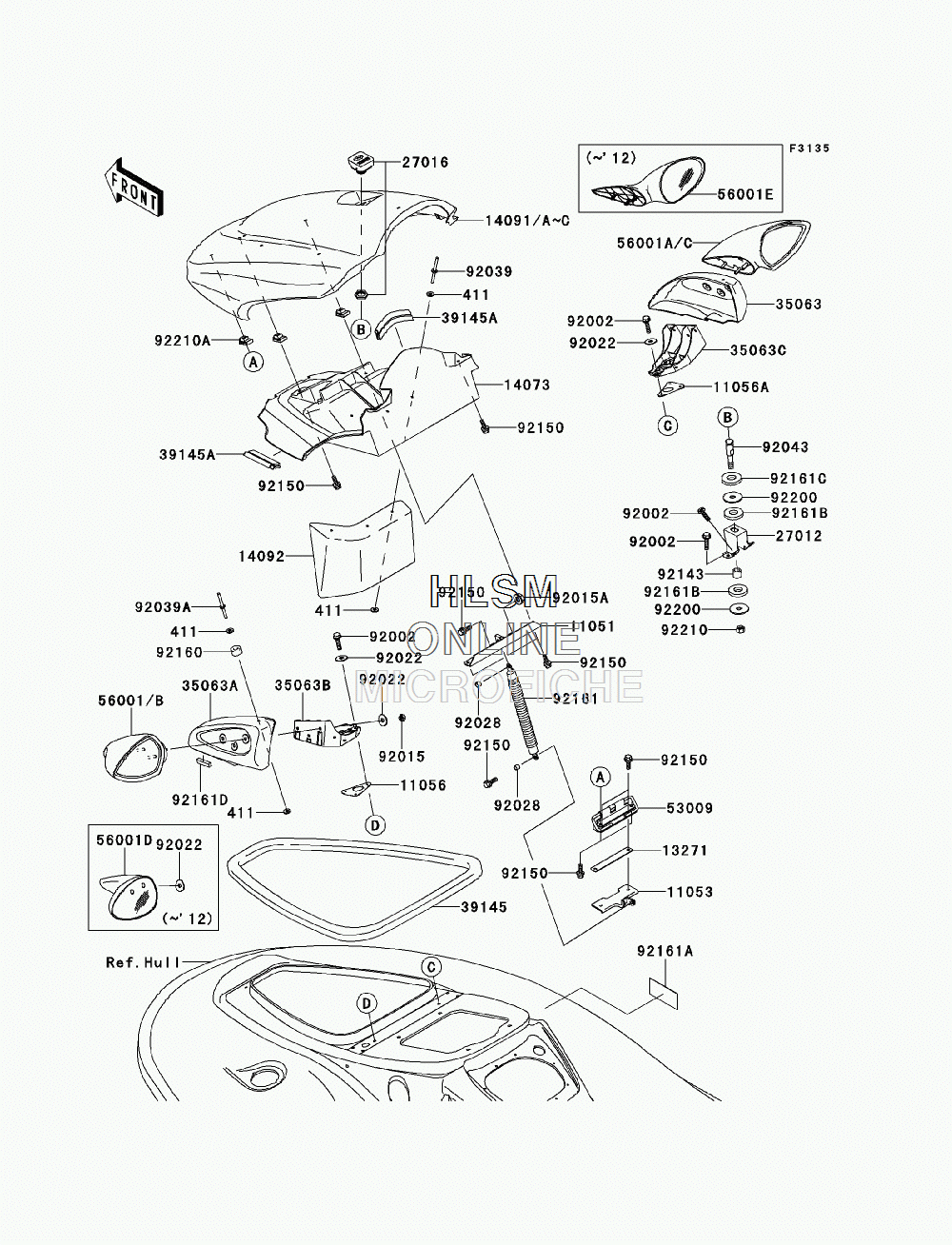

HULL FRONT FITTINGS для Kawasaki STX-15F (JT1500ACF) - 2012 года выпуска
-
№АртикулНазвание
-
1105111051-3766 BRACKETBRACKET
-
1105311053-3752 BRACKETBRACKET
-
1105611056-3715 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
11056A11056-3717 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1327113271-3897 PLATEPLATE
-
1407314073-3800 DUCT,HATCH,INNERDUCT,HATCH,INNER
-
14091B14091-3778-386 COVER,HATCH,(C.T.BLUE)COVER,HATCH,(C.T.BLUE)
-
1409214092-0842 COVER, FRONT DUCTCOVER, FRONT DUCT
-
2701227012-3855 HOOKHOOK
-
2701627016-0049 LOCK-ASSYLOCK-ASSY
-
3506335063-3709-6Z STAY,MIRROR, RIGHT HAND,(F.BLACK)STAY,MIRROR, RIGHT HAND,(F.BLACK)
-
35063A35063-3710-6Z STAY,MIRROR, LEFT HAND,(F.BLACK)STAY,MIRROR, LEFT HAND,(F.BLACK)
-
35063B35063-3713 STAY,MIRROR, LEFT HANDSTAY,MIRROR, LEFT HAND
-
35063C35063-3714 STAY,MIRROR, RIGHT HANDSTAY,MIRROR, RIGHT HAND
-
3914539145-3773 TRIM-SEAL,L=1380TRIM-SEAL,L=1380
-
39145A39145-3789 TRIM-SEAL,L=260TRIM-SEAL,L=260
-
5300953009-3725 HINGE,HATCH COVERHINGE,HATCH COVER
-
56001D56001-3721-8J MIRROR-ASSY, LEFT HAND,(F.S.BLACK)MIRROR-ASSY, LEFT HAND,(F.S.BLACK)
-
56001E56001-3722-8J MIRROR-ASSY, RIGHT HAND,(F.S.BLACK)MIRROR-ASSY, RIGHT HAND,(F.S.BLACK)
-
9200292002-3714 BOLT,6X25BOLT,6X25
-
9201592015-3766 NUT,LOCK,6MMNUT,LOCK,6MM
-
92015A92015-3767 NUT,6MMNUT,6MM
-
9202292022-3710 WASHER,6.5X20X1.5WASHER,6.5X20X1.5
-
9202892028-3765 BUSHINGBUSHING
-
9203992039-3714 RIVETRIVET
-
92039A92039-3747 RIVETRIVET
-
9204392043-0754 PINPIN
-
9214392143-3724 COLLAR,8.2X14X11.2COLLAR,8.2X14X11.2
-
9215092150-3729 BOLT,6X18BOLT,6X18
-
9216092160-3738 DAMPERDAMPER
-
9216192161-1581 DAMPER,HATCHDAMPER,HATCH
-
92161A92161-3728 DAMPERDAMPER
-
92161B92161-3739 DAMPERDAMPER
-
411411S0500 WASHER-PLAIN,5MMWASHER-PLAIN,5MM
-
92161C92161-3747 DAMPERDAMPER
-
92161D92161-3754 DAMPERDAMPER
-
9220092200-3786 WASHER,8.5X32X2WASHER,8.5X32X2
-
9221092210-3742 NUT,LOCK,8MMNUT,LOCK,8MM
-
92210A92210-3768 NUT,6MMNUT,6MM
