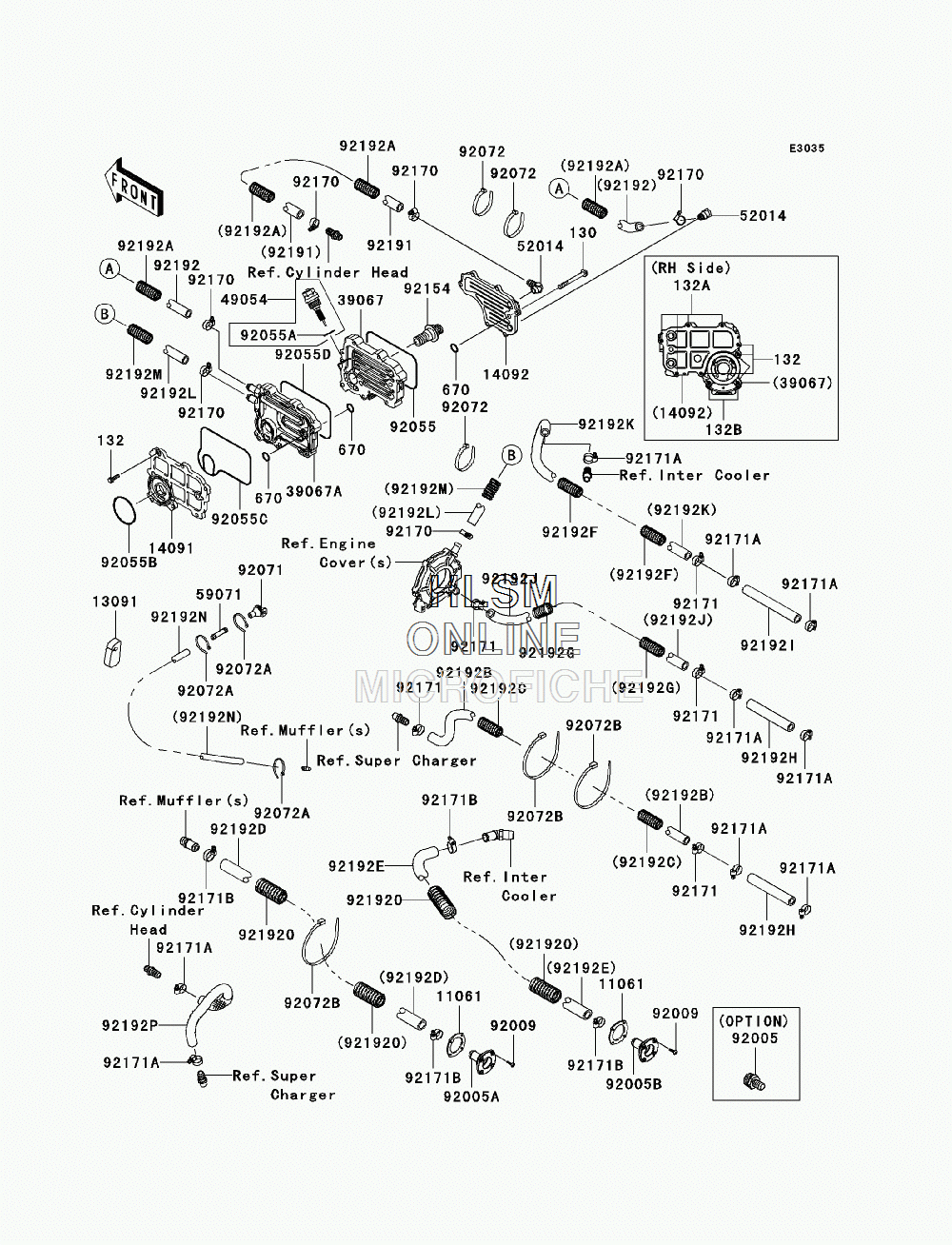

COOLING для Kawasaki ULTRA 300X (JT1500HCFA) - 2012 года выпуска
-
№АртикулНазвание
-
1106111061-3769 GASKETGASKET
-
1309113091-3712 HOLDERHOLDER
-
1409114091-3755 COVER,INSIDECOVER,INSIDE
-
1409214092-0765 COVER,OUTSIDECOVER,OUTSIDE
-
3906739067-0708 COOLER-OIL,OUTSIDECOOLER-OIL,OUTSIDE
-
39067A39067-3707 COOLER-OIL,INSIDECOOLER-OIL,INSIDE
-
4905449054-3701 THERMOSTATTHERMOSTAT
-
5201452014-3711 ELBOWELBOW
-
5907159071-3764 JOINTJOINT
-
9200592005-3748 FITTING,FLUSH (OPTION)FITTING,FLUSH (OPTION)
-
92005A92005-3770 FITTING,BLACKFITTING,BLACK
-
92005B92005-3771 FITTING,GRAYFITTING,GRAY
-
9200992009-3849 SCREW,TAPPING,4X16SCREW,TAPPING,4X16
-
9205592055-0708 RING-ORING-O
-
92055A92055-0727 RING-ORING-O
-
92055B92055-3767 RING-O,58X3RING-O,58X3
-
92055C92055-3770 RING-ORING-O
-
92055D92055-3772 RING-ORING-O
-
9207192071-3815 GROMMETGROMMET
-
9207292072-0106 BAND,L=200BAND,L=200
-
92072A92072-3882 BAND,L=100.08BAND,L=100.08
-
92072B92072-3883 BAND,L=372.24BAND,L=372.24
-
9215492154-3719 BOLTBOLT
-
9217092170-3729 CLAMPCLAMP
-
9217192171-3701 CLAMPCLAMP
-
92171A92171-3714 CLAMPCLAMP
-
92171B92171-3720 CLAMP,26MMCLAMP,26MM
-
9219192191-3919 TUBE,WATER FILTER-HULLTUBE,WATER FILTER-HULL
-
9219292192-0971 TUBE,OIL COOLER-ELBOWTUBE,OIL COOLER-ELBOW
-
92192A92192-0986 TUBE,OIL COOLER-HEADTUBE,OIL COOLER-HEAD
-
92192B92192-1037 TUBE,COMPRESSOR-HULLTUBE,COMPRESSOR-HULL
-
92192C92192-1038 TUBE,COREARUGATED,L=620TUBE,COREARUGATED,L=620
-
92192D92192-1039 TUBE,16X23X950TUBE,16X23X950
-
92192E92192-1040 TUBE,INTER COOLER-HULLTUBE,INTER COOLER-HULL
-
92192F92192-3714 TUBE,COREARUGATED,19.5X23.8X380TUBE,COREARUGATED,19.5X23.8X380
-
92192G92192-3783 TUBE,COREARUGATED,19.5X23.8X500TUBE,COREARUGATED,19.5X23.8X500
-
92192H92192-3796 TUBE,12X19X120TUBE,12X19X120
-
92192I92192-3797 TUBE,12X19X150TUBE,12X19X150
-
92192J92192-3798 TUBE,12X19X55 & 620TUBE,12X19X55 & 620
-
130130BD0870 BOLT-FLANGED,8X70BOLT-FLANGED,8X70
-
132132BD0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
132A132BD0640 BOLT-FLANGED-SMALL,6X40BOLT-FLANGED-SMALL,6X40
-
132B132BD0645 BOLT-FLANGED-SMALL,6X45BOLT-FLANGED-SMALL,6X45
-
670670D2014 O RING,14MMO RING,14MM
-
92192K92192-3800 TUBE,HULL-I/CTUBE,HULL-I/C
-
92192L92192-3816 TUBE,GENE.COVER-O/CTUBE,GENE.COVER-O/C
-
92192M92192-3817 TUBE,COREARUGATED,19.5X23.8X700TUBE,COREARUGATED,19.5X23.8X700
-
92192N92192-3821 TUBE,7X12X1590/30TUBE,7X12X1590/30
-
92192O92192-3862 TUBE,COREARUGATED,L=870TUBE,COREARUGATED,L=870
-
92192P92192-3866 TUBE,COMPRESSOR-HEADTUBE,COMPRESSOR-HEAD
