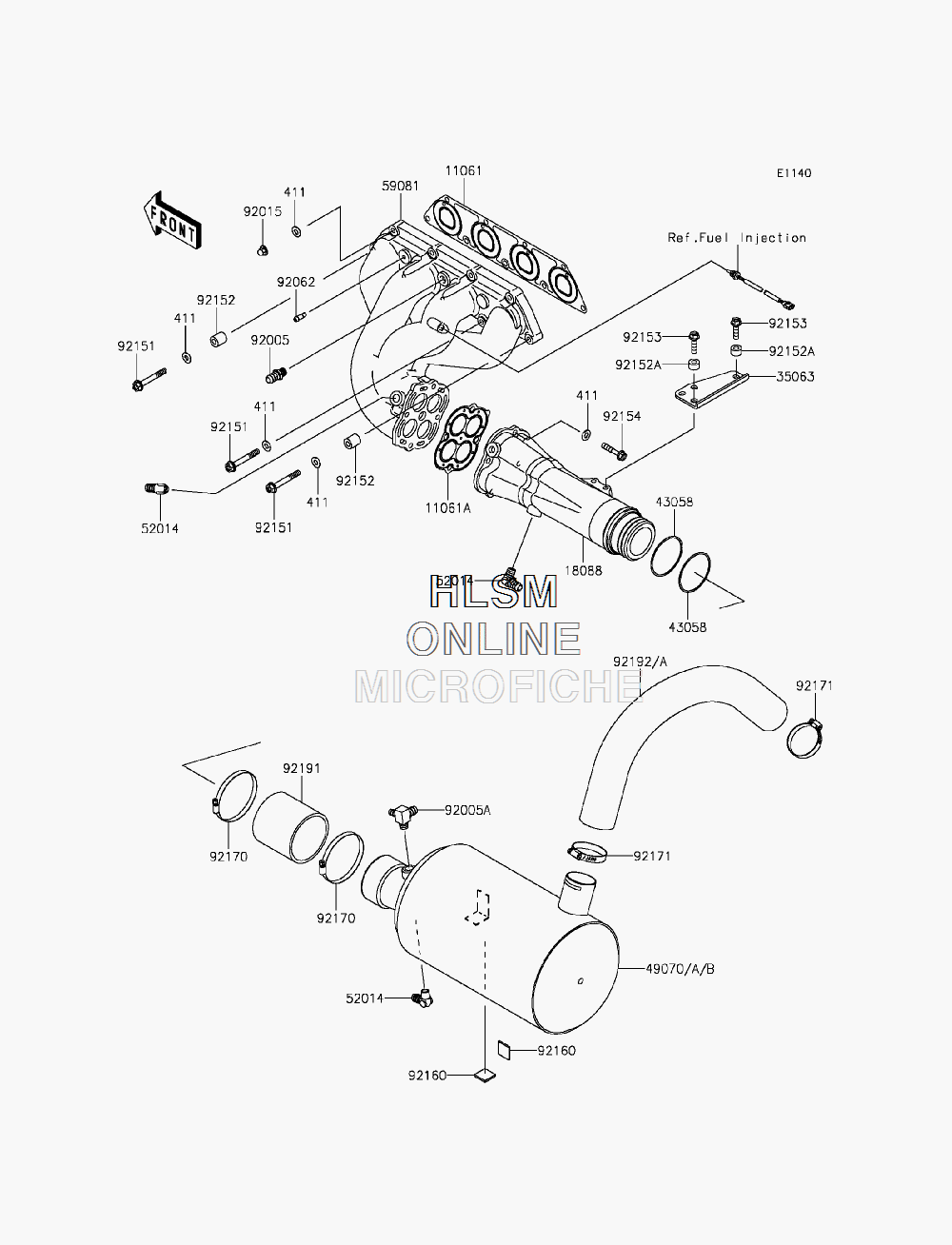

MUFFLER(S) для Kawasaki ULTRA LX (JT1500KCF) - 2012 года выпуска
-
№АртикулНазвание
-
411411S0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
1106111061-3713 GASKET, MANIFOLD EXHAUSTGASKET, MANIFOLD EXHAUST
-
11061A11061-3714 GASKET, PIPE EXHAUSTGASKET, PIPE EXHAUST
-
1808818088-3723 PIPE-EXHAUSTPIPE-EXHAUST
-
3506335063-3704 STAYSTAY
-
4305843058-3733 RING, GASKETRING, GASKET
-
49070B49070-3751 MUFFLER-COMPMUFFLER-COMP
-
5201452014-3711 ELBOWELBOW
-
5908159081-3741 MANIFOLD-EXHAUSTMANIFOLD-EXHAUST
-
9200592005-3714 FITTINGFITTING
-
92005A92005-3751 FITTINGFITTING
-
9201592015-1371 NUT, CAP, 8MMNUT, CAP, 8MM
-
9206292062-0562 NOZZLENOZZLE
-
9215192151-3730 BOLT, 8X60BOLT, 8X60
-
9215292152-3736 COLLARCOLLAR
-
92152A92152-3740 COLLAR, 8.2X17X10COLLAR, 8.2X17X10
-
9215392153-3722 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9215492154-0992 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
9216092160-3864 DAMPER, 25X25DAMPER, 25X25
-
9217092170-3760 CLAMPCLAMP
-
9217192171-3723 CLAMPCLAMP
-
9219192191-3986 TUBE, PIPE EX-MUFFLERTUBE, PIPE EX-MUFFLER
-
92192A92192-3833 TUBE, W/M-TAIL PIPETUBE, W/M-TAIL PIPE
