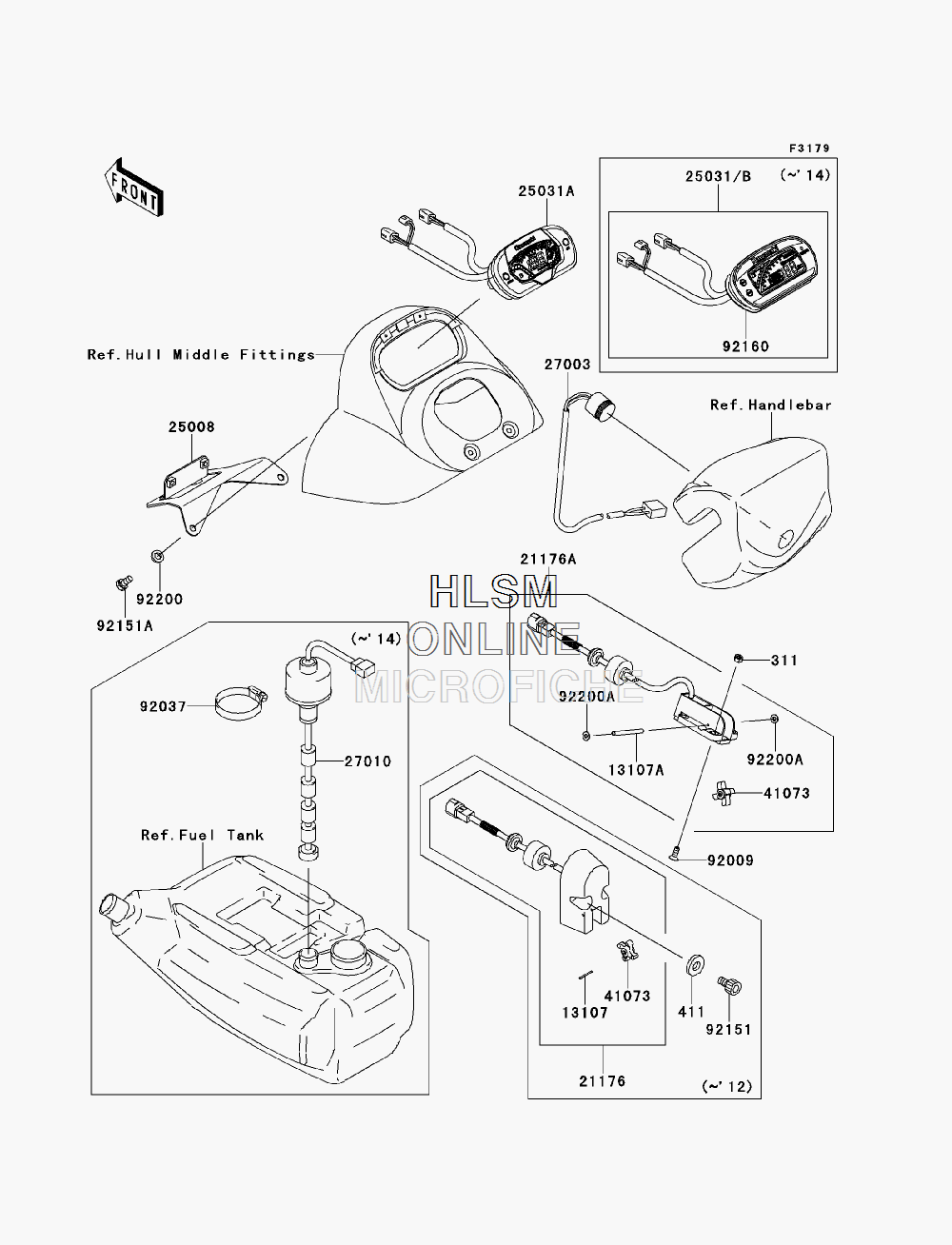

METERS для Kawasaki STX-15F (JT1500ADF) - 2013 года выпуска
-
№АртикулНазвание
-
311311R0600 NUT-HEX,6MMNUT-HEX,6MM
-
13107A13107-3807 SHAFTSHAFT
-
21176A21176-3775 SENSOR,SPEEDSENSOR,SPEED
-
2500825008-3714 BRACKET-METERBRACKET-METER
-
2503125031-0430 METER-ASSY,MILE & KMMETER-ASSY,MILE & KM
-
2700327003-3706 HORNHORN
-
2701027010-0740 SWITCH,FUEL LEVELSWITCH,FUEL LEVEL
-
4107341073-3701 WHEEL-ASSY,PADDLEWHEEL-ASSY,PADDLE
-
9200992009-3703 SCREW,6X16SCREW,6X16
-
9203792037-3009 CLAMPCLAMP
-
92151A92151-3707 BOLT,5X10BOLT,5X10
-
9216092160-3881 DAMPER,METERDAMPER,METER
-
9220092200-3714 WASHER,5.9X16X1.5WASHER,5.9X16X1.5
-
92200A92200-3805 WASHERWASHER
