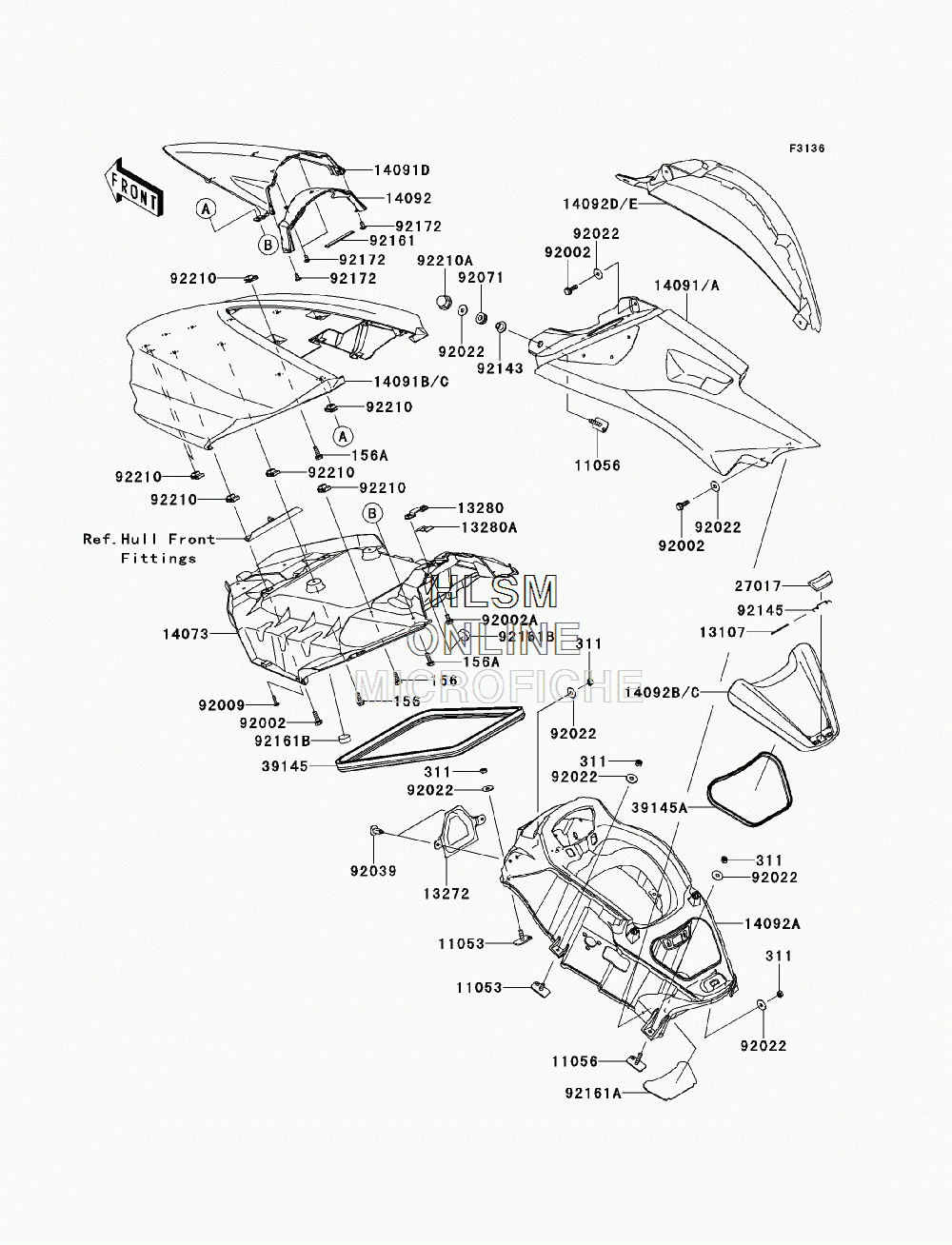

HULL MIDDLE FITTINGS для Kawasaki ULTRA 300X (JT1500HDF) - 2013 года выпуска
-
№АртикулНазвание
-
156156R0618 BOLT-WP, 6X18BOLT-WP, 6X18
-
156A156R0620 BOLT-WP, 6X20BOLT-WP, 6X20
-
311311R0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
1105311053-3776 BRACKETBRACKET
-
1105611056-3724 BRACKETBRACKET
-
1310713107-3790 SHAFTSHAFT
-
1327213272-1221 PLATE, INTAKE COVERPLATE, INTAKE COVER
-
1328013280-3749 HOLDER, RODHOLDER, ROD
-
13280A13280-3751 HOLDER, RODHOLDER, ROD
-
1407314073-3837 DUCT, HATCH, INNERDUCT, HATCH, INNER
-
1409114091-3780-31Y COVER, SIDE, LEFT HAND, (M.S.WHITE) (FOR 31Y)COVER, SIDE, LEFT HAND, (M.S.WHITE) (FOR 31Y)
-
14091A14091-3780-367 COVER, SIDE, LEFT HAND, (C.L.GREEN) (FOR 367)COVER, SIDE, LEFT HAND, (C.L.GREEN) (FOR 367)
-
14091B14091-3824-H8 COVER, FRONT HATCH, (EBONY) (FOR 367)COVER, FRONT HATCH, (EBONY) (FOR 367)
-
14091C14091-3824-31Y COVER, FRONT HATCH, (M.S.WHITE) (FOR 31Y)COVER, FRONT HATCH, (M.S.WHITE) (FOR 31Y)
-
14091D14091-3825 COVER, METERCOVER, METER
-
1409214092-0776-H8 COVER, METER, REAR, (EBONY)COVER, METER, REAR, (EBONY)
-
14092A14092-0980-6Z COVER, CENTER, (F.BLACK)COVER, CENTER, (F.BLACK)
-
14092B14092-3701-31Y COVER, CENTER STORAGE, (M.S.WHITE) (FOR 31Y)COVER, CENTER STORAGE, (M.S.WHITE) (FOR 31Y)
-
14092C14092-3701-367 COVER, CENTER STORAGE, (C.L.GREEN) (FOR 367)COVER, CENTER STORAGE, (C.L.GREEN) (FOR 367)
-
14092D14092-3708-31Y COVER, SIDE, RIGHT HAND, (M.S.WHITE) (FOR 31Y)COVER, SIDE, RIGHT HAND, (M.S.WHITE) (FOR 31Y)
-
14092E14092-3708-367 COVER, SIDE, RIGHT HAND, (C.L.GREEN) (FOR 367)COVER, SIDE, RIGHT HAND, (C.L.GREEN) (FOR 367)
-
2701727017-3726 LOCK, CENTER STORAGELOCK, CENTER STORAGE
-
3914539145-3793 TRIM-SEALTRIM-SEAL
-
39145A39145-3802 TRIM-SEAL, L=720TRIM-SEAL, L=720
-
9200292002-3755 BOLT, 6X20BOLT, 6X20
-
92002A92002-3763 BOLT, 6X12BOLT, 6X12
-
9200992009-3849 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9203992039-3788 RIVETRIVET
-
9207192071-3716 GROMMETGROMMET
-
9214392143-3750 COLLARCOLLAR
-
9214592145-3729 SPRINGSPRING
-
9216192161-0968 DAMPER, 16X100X3.18DAMPER, 16X100X3.18
-
92161A92161-3773 DAMPER, CENTER STORAGEDAMPER, CENTER STORAGE
-
92161B92161-3790 DAMPERDAMPER
-
9217292172-3714 SCREW, 5X12SCREW, 5X12
-
9221092210-3768 NUT, 6MMNUT, 6MM
-
92210A92210-3785 NUT, CAP, 6MMNUT, CAP, 6MM
