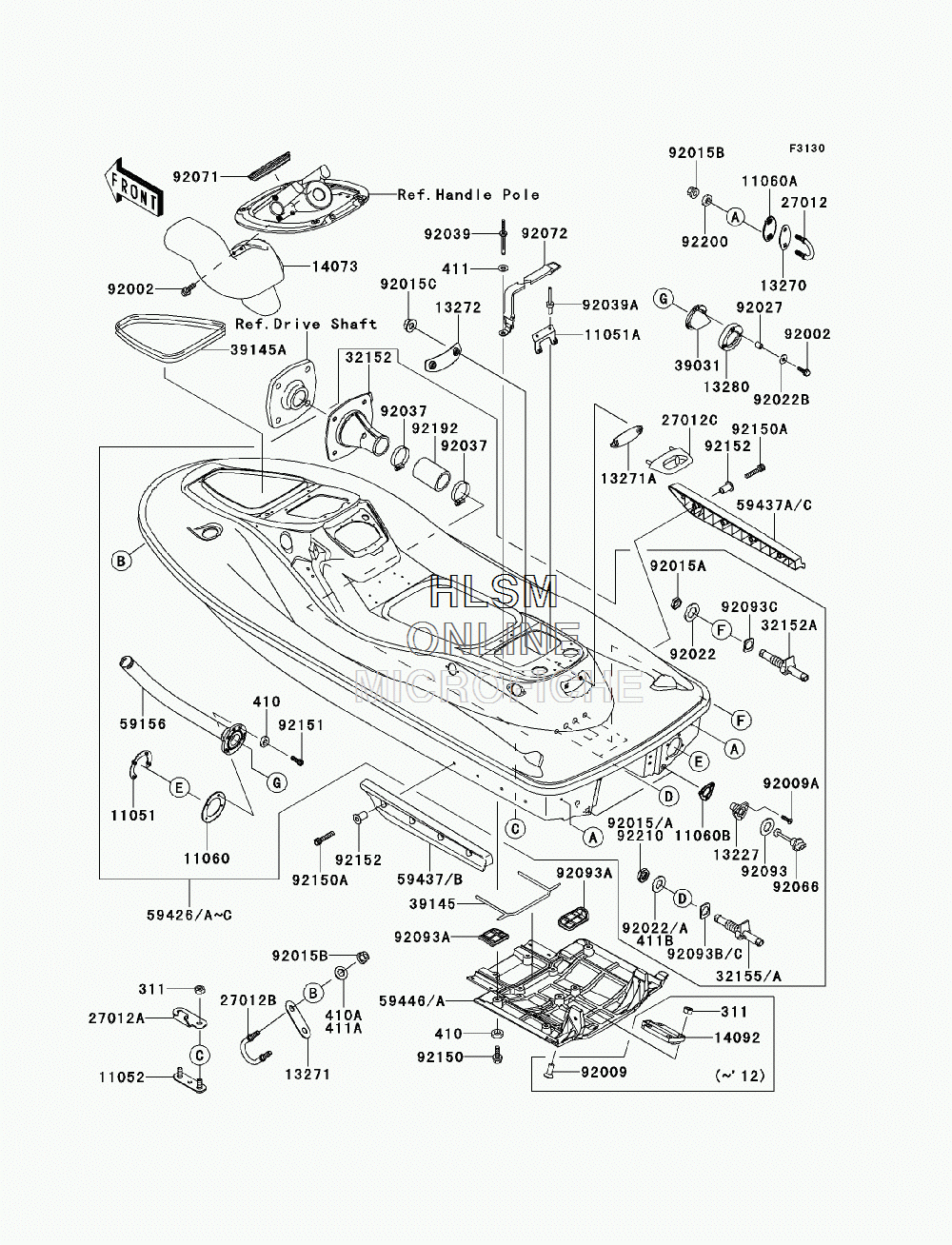

HULL для Kawasaki STX-15F (JT1500AEF) - 2014 года выпуска
-
№АртикулНазвание
-
1105111051-3731 BRACKETBRACKET
-
11051A11051-3802 BRACKET,BREATHER-BILGEBRACKET,BREATHER-BILGE
-
1105211052-3712 BRACKET, REAR DUCTBRACKET, REAR DUCT
-
1106011060-3781 GASKETGASKET
-
11060A11060-3800 GASKET,U HOOK, REARGASKET,U HOOK, REAR
-
11060B11060-3801 GASKET,DRAIN PLUGGASKET,DRAIN PLUG
-
1322713227-3721-6Z HOUSING,DRAIN PLUG,(F.BLACK)HOUSING,DRAIN PLUG,(F.BLACK)
-
1327013270-3860 PLATEPLATE
-
1327113271-3724 PLATEPLATE
-
13271A13271-3889 PLATEPLATE
-
1327213272-3702 PLATE, REAR TOWING HOOKPLATE, REAR TOWING HOOK
-
1328013280-3718 HOLDER,EXHAUST VALVEHOLDER,EXHAUST VALVE
-
1407314073-3801 DUCTDUCT
-
2701227012-3797 HOOKHOOK
-
27012A27012-3816 HOOKHOOK
-
27012B27012-3821 HOOKHOOK
-
27012C27012-3836-6Z HOOK, REAR TOWING,(F.BLACK)HOOK, REAR TOWING,(F.BLACK)
-
3215232152-3703 PIPE,DRIVE SHAFTPIPE,DRIVE SHAFT
-
32152A32152-3749 PIPEPIPE
-
3215532155-1511 PIPE,COOLINGPIPE,COOLING
-
3903139031-3704 CAP-ENDCAP-END
-
3914539145-3768 TRIM-SEAL,JET PUMP COVERTRIM-SEAL,JET PUMP COVER
-
39145A39145-3787 TRIM-SEAL,L=1412TRIM-SEAL,L=1412
-
5915659156-3740 PIPE-TAILPIPE-TAIL
-
5942659426-0007-43D HULL-COMP,(BLACK/EBONY)HULL-COMP,(BLACK/EBONY)
-
59437B59437-3745-6Z STABILIZER, LEFT HAND,(F.BLACK)STABILIZER, LEFT HAND,(F.BLACK)
-
59437C59437-3746-6Z STABILIZER, RIGHT HAND,(F.BLACK)STABILIZER, RIGHT HAND,(F.BLACK)
-
5944659446-0078 COVER-JET PUMPCOVER-JET PUMP
-
311311R0600 NUT-HEX,6MMNUT-HEX,6MM
-
410410S0600 WASHER-PLAIN-SMALL,6MMWASHER-PLAIN-SMALL,6MM
-
411411S0500 WASHER-PLAIN,5MMWASHER-PLAIN,5MM
-
411A411S0800 WASHER-PLAIN,8MMWASHER-PLAIN,8MM
-
9200292002-3755 BOLT,6X20BOLT,6X20
-
92009A92009-3849 SCREW,TAPPING,4X16SCREW,TAPPING,4X16
-
92015A92015-1589 NUT,20MMNUT,20MM
-
92015B92015-1933 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
92015C92015-3709 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
9202292022-1116 WASHER,20.3X36X2.3WASHER,20.3X36X2.3
-
92022B92022-567 WASHERWASHER
-
9202792027-3705 COLLAR,6.2X10X10COLLAR,6.2X10X10
-
9203792037-3009 CLAMPCLAMP
-
9203992039-3741 RIVETRIVET
-
92039A92039-3755 RIVETRIVET
-
9206692066-3783-6Z PLUG, REAR,DRAIN,(F.BLACK)PLUG, REAR,DRAIN,(F.BLACK)
-
9207192071-3812 GROMMETGROMMET
-
9207292072-3814 BAND,314X18BAND,314X18
-
9209392093-3720 SEALSEAL
-
92093A92093-3765 SEALSEAL
-
92093C92093-3784 SEALSEAL
-
9215092150-3775 BOLT,SOCKET,6X18BOLT,SOCKET,6X18
-
92150A92150-3822 BOLT,SOCKET,6X30BOLT,SOCKET,6X30
-
9215192151-3774 BOLT,SOCKET,6X20BOLT,SOCKET,6X20
-
9215292152-3715 COLLARCOLLAR
-
9219292192-3845 TUBE,39X51X90TUBE,39X51X90
-
9220092200-3779 WASHERWASHER
