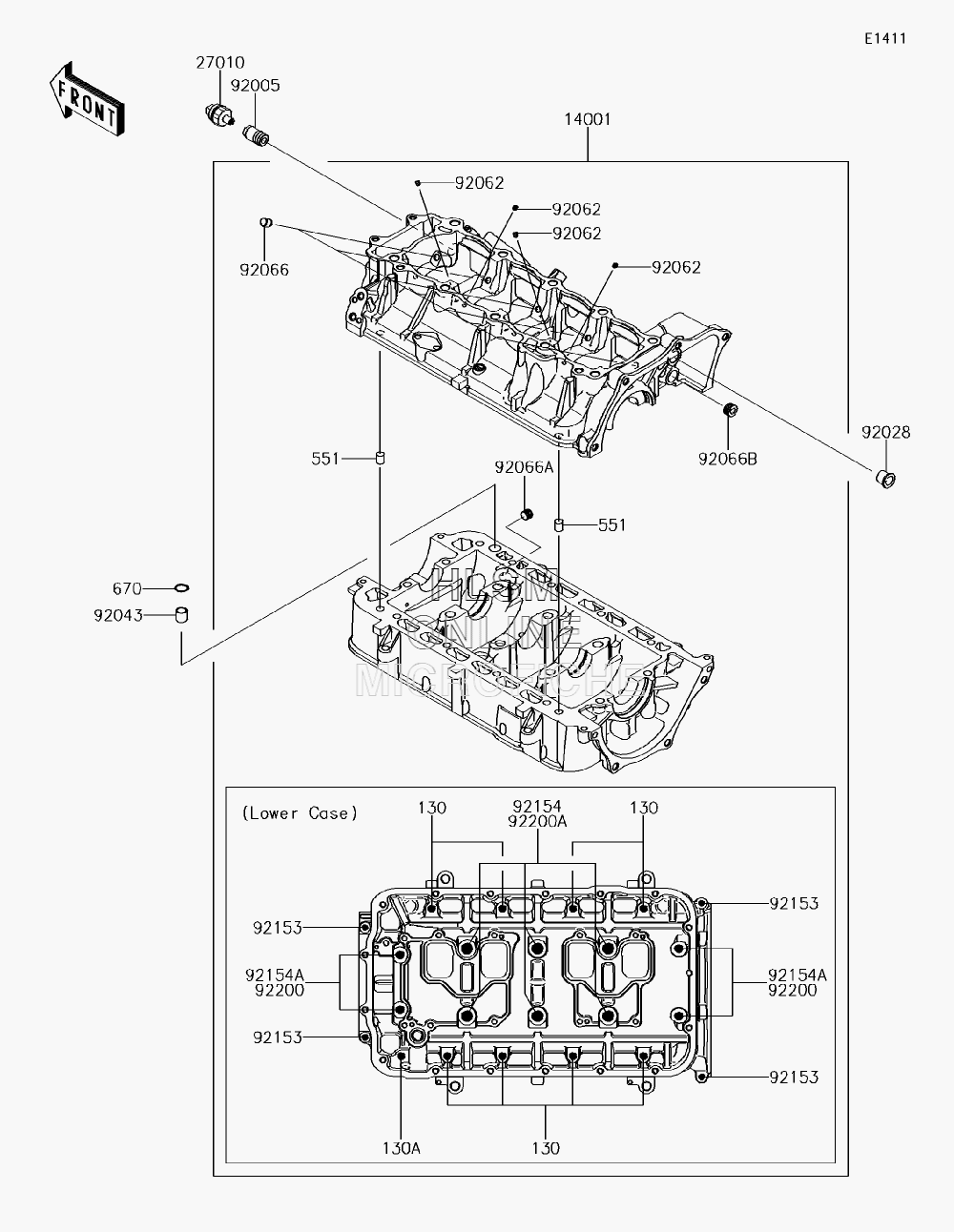

CRANKCASE для Kawasaki ULTRA 310X (JT1500LFF) - 2015 года выпуска
-
№АртикулНазвание
-
130130CD0845 BOLT-FLANGED, 8X45BOLT-FLANGED, 8X45
-
130A130CD0855 BOLT-FLANGED, 8X55BOLT-FLANGED, 8X55
-
1400114001-0614 SET-CRANKCASESET-CRANKCASE
-
2701027010-3786 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
551551R1012 PIN-DOWELPIN-DOWEL
-
670670D2014 O RING, 14MMO RING, 14MM
-
9200592005-0714 FITTINGFITTING
-
9202892028-3718 BUSHINGBUSHING
-
9204392043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9206292062-0029 NOZZLENOZZLE
-
9206692066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
92066A92066-3778 PLUGPLUG
-
92066B92066-3782 PLUGPLUG
-
9215392153-3707 BOLT, 6X30BOLT, 6X30
-
9215492154-0719 BOLTBOLT
-
92154A92154-0720 BOLTBOLT
-
9220092200-0743 WASHERWASHER
-
92200A92200-0747 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
