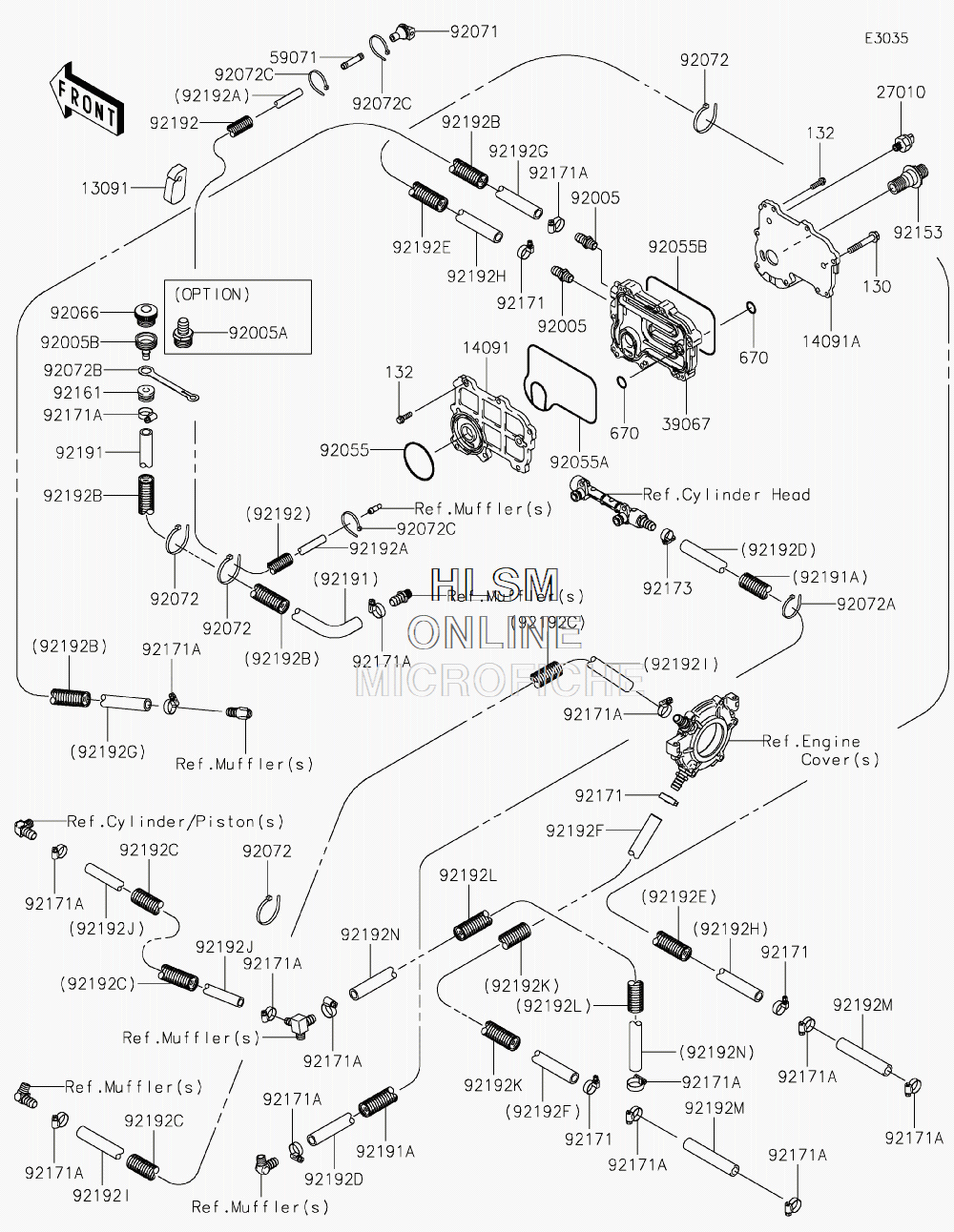

COOLING для Kawasaki STX-15F [JT1500AHF] - 2017 года выпуска
-
№АртикулНазвание
-
130130BD0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
1309113091-3712 HOLDERHOLDER
-
132132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
1409114091-3755 COVER, INSIDECOVER, INSIDE
-
14091A14091-3756 COVER, OUTSIDECOVER, OUTSIDE
-
2701027010-3786 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3906739067-3704 COOLER-OILCOOLER-OIL
-
5907159071-3764 JOINTJOINT
-
670670D2014 O RING, 14MMO RING, 14MM
-
9200592005-3714 FITTINGFITTING
-
92005A92005-3748 FITTING, FLUSH (OPTION)FITTING, FLUSH (OPTION)
-
92005B92005-3757 FITTING, FLUSHFITTING, FLUSH
-
9205592055-3767 RING-O, 58X3RING-O, 58X3
-
92055A92055-3770 RING-ORING-O
-
92055B92055-3772 RING-ORING-O
-
9206692066-3787 PLUGPLUG
-
9207192071-3815 GROMMETGROMMET
-
9207292072-0105 BAND, L=188.85BAND, L=188.85
-
92072A92072-3874 BAND, L=152BAND, L=152
-
92072B92072-3877 BANDBAND
-
92072C92072-3882 BAND, L=100.08BAND, L=100.08
-
9215392153-3713 BOLT, OIL COOLERBOLT, OIL COOLER
-
9216192161-1331 DAMPERDAMPER
-
9217192171-3701 CLAMPCLAMP
-
92171A92171-3714 CLAMPCLAMP
-
9217392173-1482 CLAMPCLAMP
-
9219192191-3850 TUBE, CHAMBER-TAIL PIPETUBE, CHAMBER-TAIL PIPE
-
92191A92191-3884 TUBE, CORRUGATED, 19.5X23.8X500TUBE, CORRUGATED, 19.5X23.8X500
-
9219292192-1235 TUBE, CORRUGATEDTUBE, CORRUGATED
-
92192A92192-1514 TUBE, 7X12X1590TUBE, 7X12X1590
-
92192B92192-3711 TUBE, CORRUGATED, 19.5X23.8X900TUBE, CORRUGATED, 19.5X23.8X900
-
92192C92192-3714 TUBE, CORRUGATED, 19.5X23.8X380TUBE, CORRUGATED, 19.5X23.8X380
-
92192D92192-3716 TUBE, 12X18X630TUBE, 12X18X630
-
92192E92192-3732 TUBE, CORRUGATED, 19.5X23.8X1400TUBE, CORRUGATED, 19.5X23.8X1400
-
92192F92192-3739 TUBE, GENERATOR-HULLTUBE, GENERATOR-HULL
-
92192G92192-3740 TUBE, 12X18X1000TUBE, 12X18X1000
-
92192H92192-3741 TUBE, 12X18X1520TUBE, 12X18X1520
-
92192I92192-3742 TUBE, 12X18X480TUBE, 12X18X480
-
92192J92192-3745 TUBE, 12X18X450TUBE, 12X18X450
-
92192K92192-3751 TUBE, CORRUGATED, L=600MTUBE, CORRUGATED, L=600M
-
92192L92192-3781 TUBE, CORRUGATED, 19.5X23.8X800TUBE, CORRUGATED, 19.5X23.8X800
-
92192M92192-3789 TUBE, PUMP-HULLTUBE, PUMP-HULL
-
92192N92192-3799 TUBE, 12X19X55 & 1000TUBE, 12X19X55 & 1000
