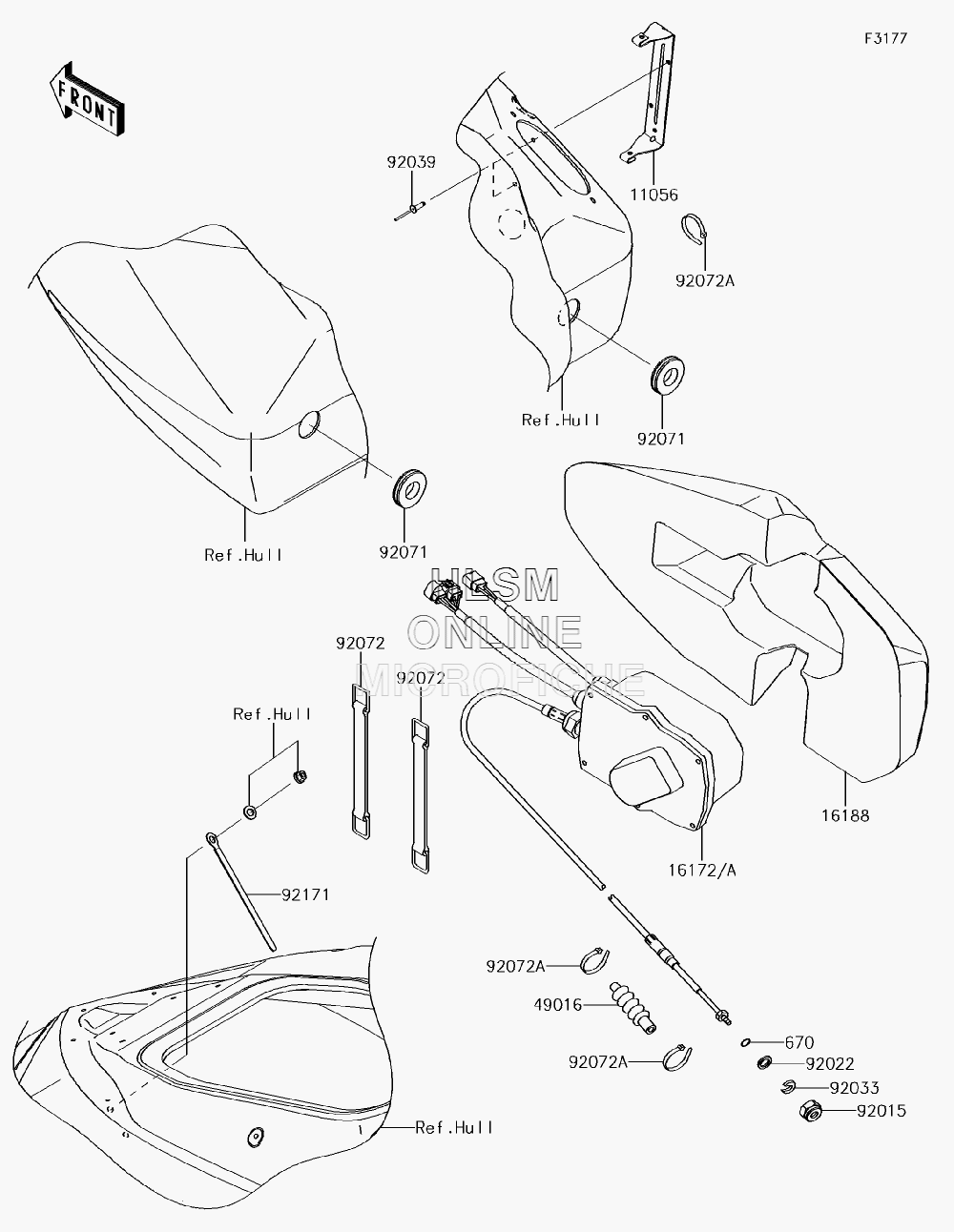

CONTROL для Kawasaki ULTRA 310LX [JT1500MHF] - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-0711 BRACKETBRACKET
-
16172A16172-0033 ACTUATOR, JET PUMPACTUATOR, JET PUMP
-
1618816188-0037 FLOATFLOAT
-
4901649016-3702 COVER-SEAL, TILT CABLECOVER-SEAL, TILT CABLE
-
670670B2011 O RING, 11MMO RING, 11MM
-
9201592015-526 NUT, 20MMNUT, 20MM
-
9202292022-535 WASHERWASHER
-
9203392033-3737 RING-SNAP, 7.7X17.5X3.0RING-SNAP, 7.7X17.5X3.0
-
9203992039-3714 RIVETRIVET
-
9207192071-3840 GROMMETGROMMET
-
9207292072-3879 BAND, BATTERYBAND, BATTERY
-
92072A92072-3882 BAND, L=100.08BAND, L=100.08
-
9217192171-3717 CLAMP, L=150CLAMP, L=150
