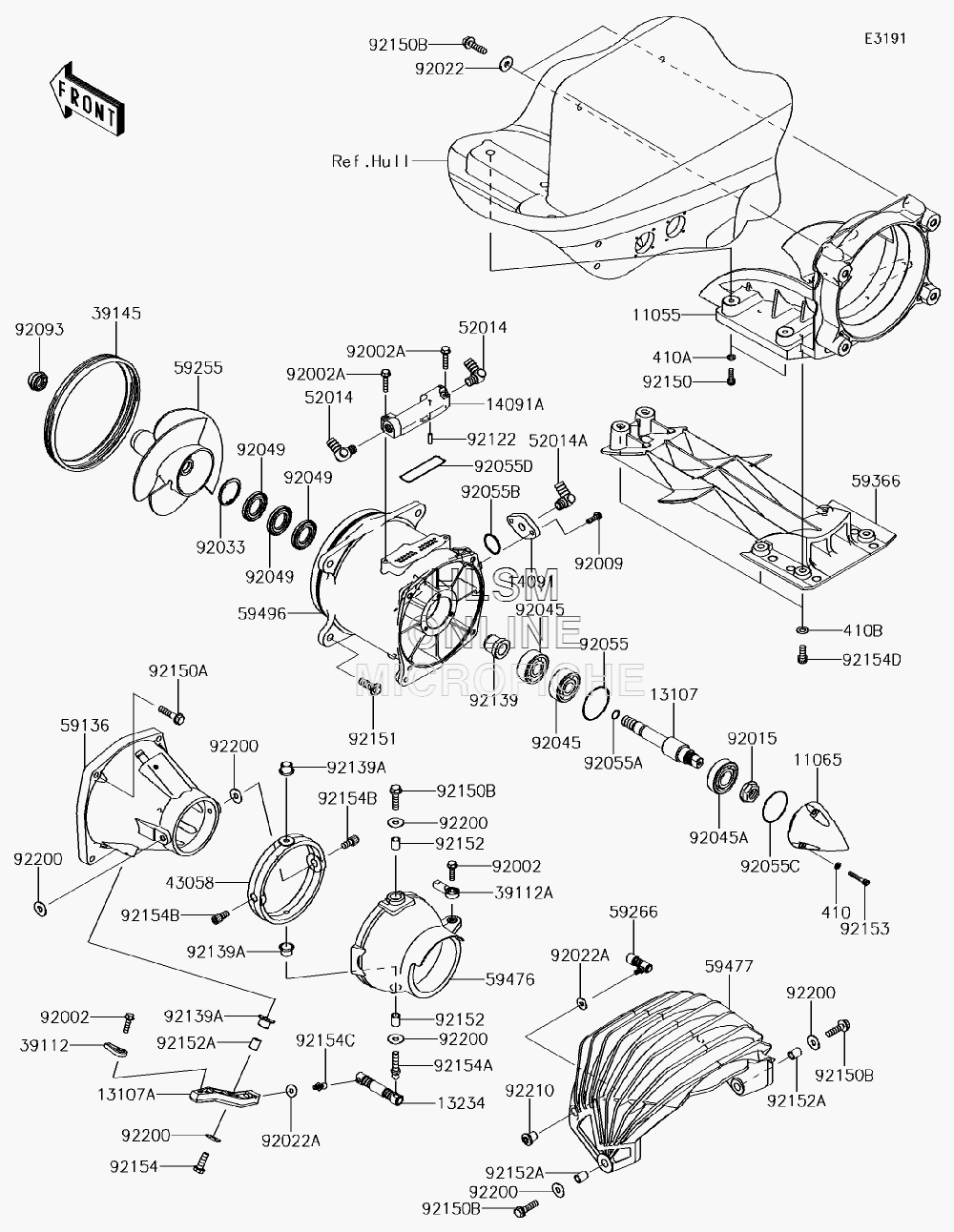

JET PUMP для Kawasaki ULTRA 310X [JT1500LHF] - 2017 года выпуска
-
№АртикулНазвание
-
1105511055-3710 BRACKET, PUMPBRACKET, PUMP
-
1106511065-0888 CAPCAP
-
1310713107-0764 SHAFTSHAFT
-
13107A13107-3804 SHAFTSHAFT
-
1323413234-3712 SHAFT-COMPSHAFT-COMP
-
1409114091-3808 COVER, COOLING TUBECOVER, COOLING TUBE
-
14091A14091-3817 COVER, VANE GUIDECOVER, VANE GUIDE
-
3911239112-3703 RODEND-TIERODEND-TIE
-
39112A39112-3707 RODEND-TIERODEND-TIE
-
3914539145-3809 TRIM-SEALTRIM-SEAL
-
410410S0500 W-PLAIN-S, 5MMW-PLAIN-S, 5MM
-
410A410S0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
410B410S0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
4305843058-3735 RINGRING
-
5201452014-3711 ELBOWELBOW
-
52014A52014-3727 ELBOWELBOW
-
5913659136-3768 NOZZLE-PUMPNOZZLE-PUMP
-
5925559255-0001 IMPELLER-COMPIMPELLER-COMP
-
5926659266-3710 JOINT-BALLJOINT-BALL
-
5936659366-3724 GRATEGRATE
-
5947659476-0063 NOZZLE-STRGNOZZLE-STRG
-
5947759477-0001 BUCKET-REVERSEBUCKET-REVERSE
-
5949659496-3767 VANE-GUIDEVANE-GUIDE
-
9200292002-3714 BOLT, 6X25BOLT, 6X25
-
92002A92002-3726 BOLT, 6X30BOLT, 6X30
-
9200992009-3848 SCREW, 6X20SCREW, 6X20
-
9201592015-1512 NUT, 18MMNUT, 18MM
-
9202292022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
92022A92022-567 WASHERWASHER
-
9203392033-3730 RING-SNAPRING-SNAP
-
9204592045-3740 BEARING-BALL, 6303R-6BEARING-BALL, 6303R-6
-
92045A92045-3743 BEARING-BALL, 62/222RSBEARING-BALL, 62/222RS
-
9204992049-3739 SEAL-OILSEAL-OIL
-
9205592055-0183 RING-O, 49.7X2.4RING-O, 49.7X2.4
-
92055A92055-025 RING-O, 12X1.5RING-O, 12X1.5
-
92055B92055-1272 RING-O, 27.7X1.9RING-O, 27.7X1.9
-
92055C92055-3741 RING-ORING-O
-
92055D92055-3784 RING-O, 66.5X2.0RING-O, 66.5X2.0
-
9209392093-3749 SEALSEAL
-
9212292122-0044 ROLLERROLLER
-
9213992139-0767 BUSHINGBUSHING
-
92139A92139-3720 BUSHINGBUSHING
-
9215092150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92150A92150-3792 BOLT, 8X35BOLT, 8X35
-
92150B92150-3803 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9215192151-3706 BOLT, 10X30BOLT, 10X30
-
9215292152-1694 COLLAR, 8.2X11.8X13.5COLLAR, 8.2X11.8X13.5
-
92152A92152-3703 COLLAR, 8.2X11.8X15COLLAR, 8.2X11.8X15
-
9215392153-3742 BOLT, SOCKET, 5X30BOLT, SOCKET, 5X30
-
9215492154-3705 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
92154A92154-3706 BOLT, BALL, 8X30BOLT, BALL, 8X30
-
92154B92154-3707 BOLT, SOCKET, 8X15BOLT, SOCKET, 8X15
-
92154C92154-3710 BOLT, BALL, 6MMBOLT, BALL, 6MM
-
92154D92154-3711 BOLT, SOCKET, 8X18BOLT, SOCKET, 8X18
-
9220092200-0174 WASHER, 8.0X22.0X1.5WASHER, 8.0X22.0X1.5
-
9221092210-3789 NUT, 6MMNUT, 6MM
