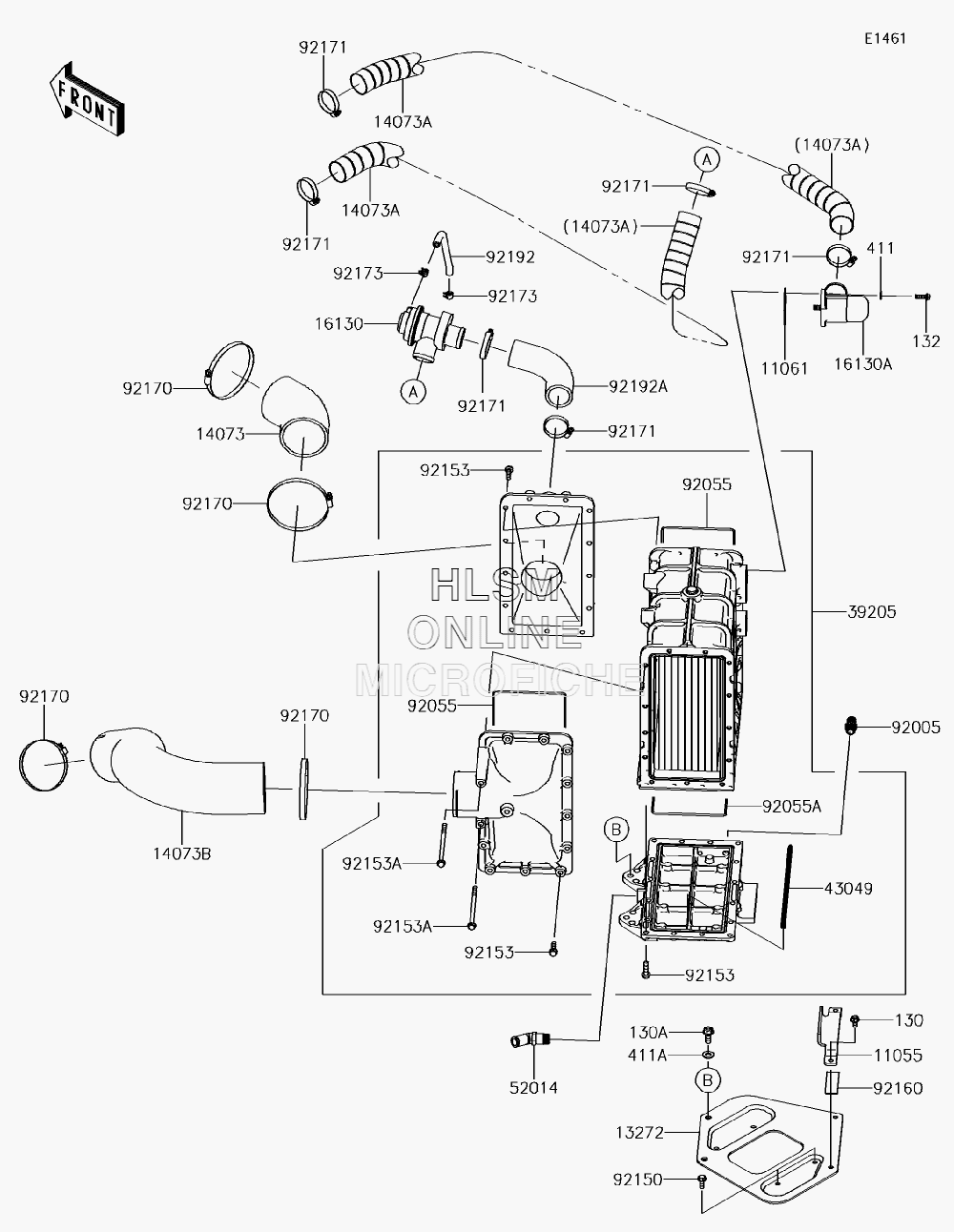

INTER COOLER для Kawasaki ULTRA 310X SE [JT1500PHF] - 2017 года выпуска
-
№АртикулНазвание
-
1105511055-3714 BRACKETBRACKET
-
1106111061-3765 GASKETGASKET
-
130130CD0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130CD0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
132132BC0618 BOLT-FLANGED-SMALL, 6X18BOLT-FLANGED-SMALL, 6X18
-
1327213272-3721 PLATEPLATE
-
1407314073-3823 DUCT, I/C-TH.DUCT, I/C-TH.
-
14073A14073-3834 DUCT, BYPASS VALVE-A/CDUCT, BYPASS VALVE-A/C
-
14073B14073-3839 DUCT, S/C-I/CDUCT, S/C-I/C
-
1613016130-3703 VALVE-ASSY-RELIEF, AIR BYPASSVALVE-ASSY-RELIEF, AIR BYPASS
-
16130A16130-3707 VALVE-ASSY-RELIEF, BLOW OFFVALVE-ASSY-RELIEF, BLOW OFF
-
3920539205-3702 HEAT EXCHANGER, INTER COOLERHEAT EXCHANGER, INTER COOLER
-
411411S0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
411A411S0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
4304943049-3719 PACKINGPACKING
-
5201452014-3714 ELBOWELBOW
-
9200592005-3714 FITTINGFITTING
-
9205592055-3779 RING-ORING-O
-
92055A92055-3780 RING-ORING-O
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
9215392153-3750 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92153A92153-3751 BOLT, FLANGED, 6X110BOLT, FLANGED, 6X110
-
9216092160-1075 DAMPERDAMPER
-
9217092170-3764 CLAMPCLAMP
-
9217192171-3725 CLAMPCLAMP
-
9217392173-1038 CLAMPCLAMP
-
9219292192-1512 TUBE, 5.8X10.8X140TUBE, 5.8X10.8X140
-
92192A92192-3784 TUBE, I/C-ABVTUBE, I/C-ABV
