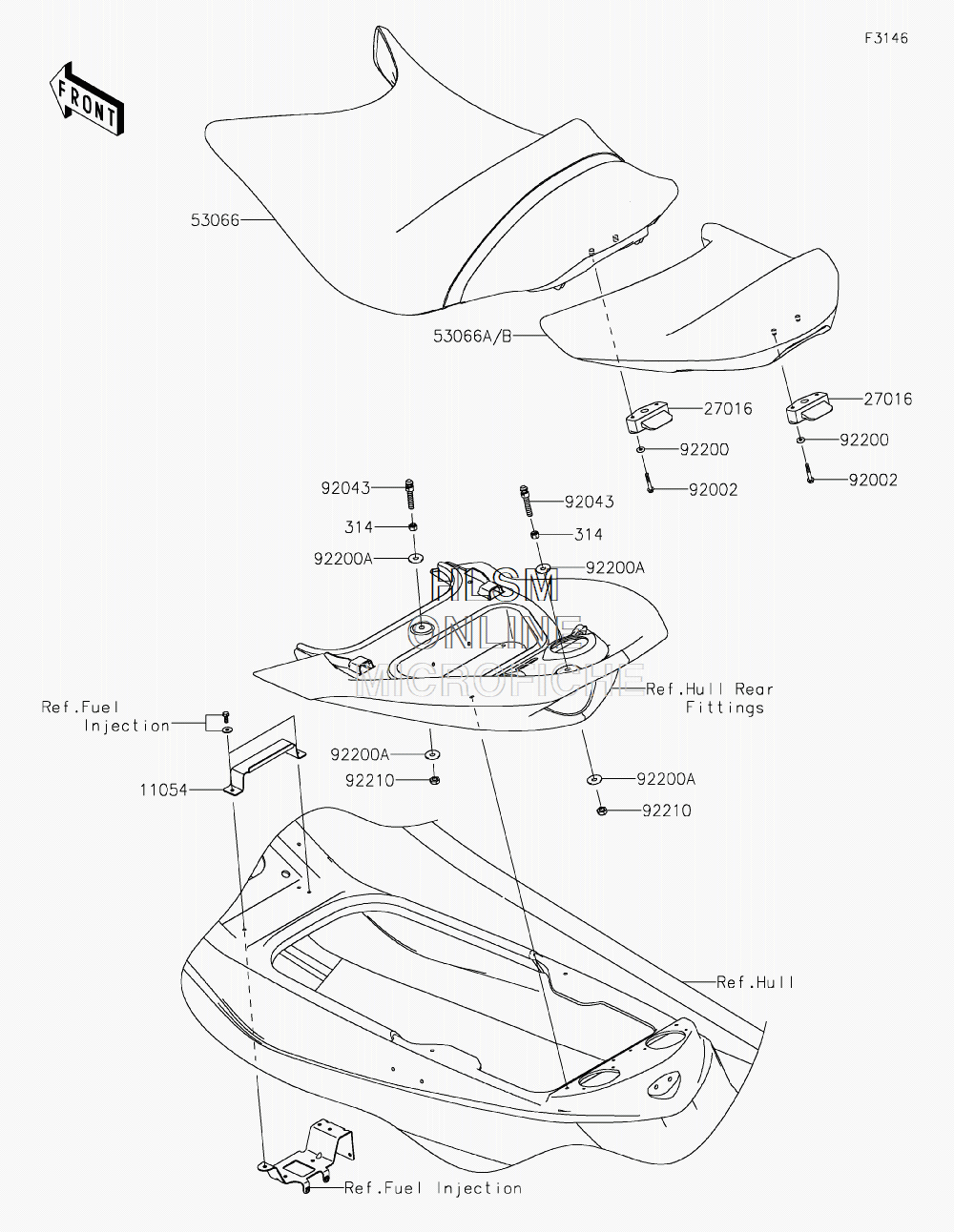

SEAT для Kawasaki ULTRA LX (JT1500KJF) - 2018 года выпуска
-
№АртикулНазвание
-
1105411054-3702 BRACKET, FRONT SEATBRACKET, FRONT SEAT
-
2701627016-3758 LOCK-ASSY, SEAT, FR & RRLOCK-ASSY, SEAT, FR & RR
-
314314R1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
5306653066-0379-41M SEAT-ASSY, FRONT, (BLACK)SEAT-ASSY, FRONT, (BLACK)
-
53066A53066-0388-41N SEAT-ASSY, REAR, (BLACK/SILVER) (CANADA ONLY)SEAT-ASSY, REAR, (BLACK/SILVER) (CANADA ONLY)
-
53066B53066-0389-41N SEAT-ASSY, REAR, (BLACK/SILVER) (USA ONLY)SEAT-ASSY, REAR, (BLACK/SILVER) (USA ONLY)
-
9200292002-3716 BOLT, 6X40BOLT, 6X40
-
9204392043-3763 PINPIN
-
9220092200-1543 WASHER, 6.5X16X2.0WASHER, 6.5X16X2.0
-
92200A92200-3762 WASHERWASHER
-
9221092210-3792 NUT, LOCK, 10MMNUT, LOCK, 10MM
