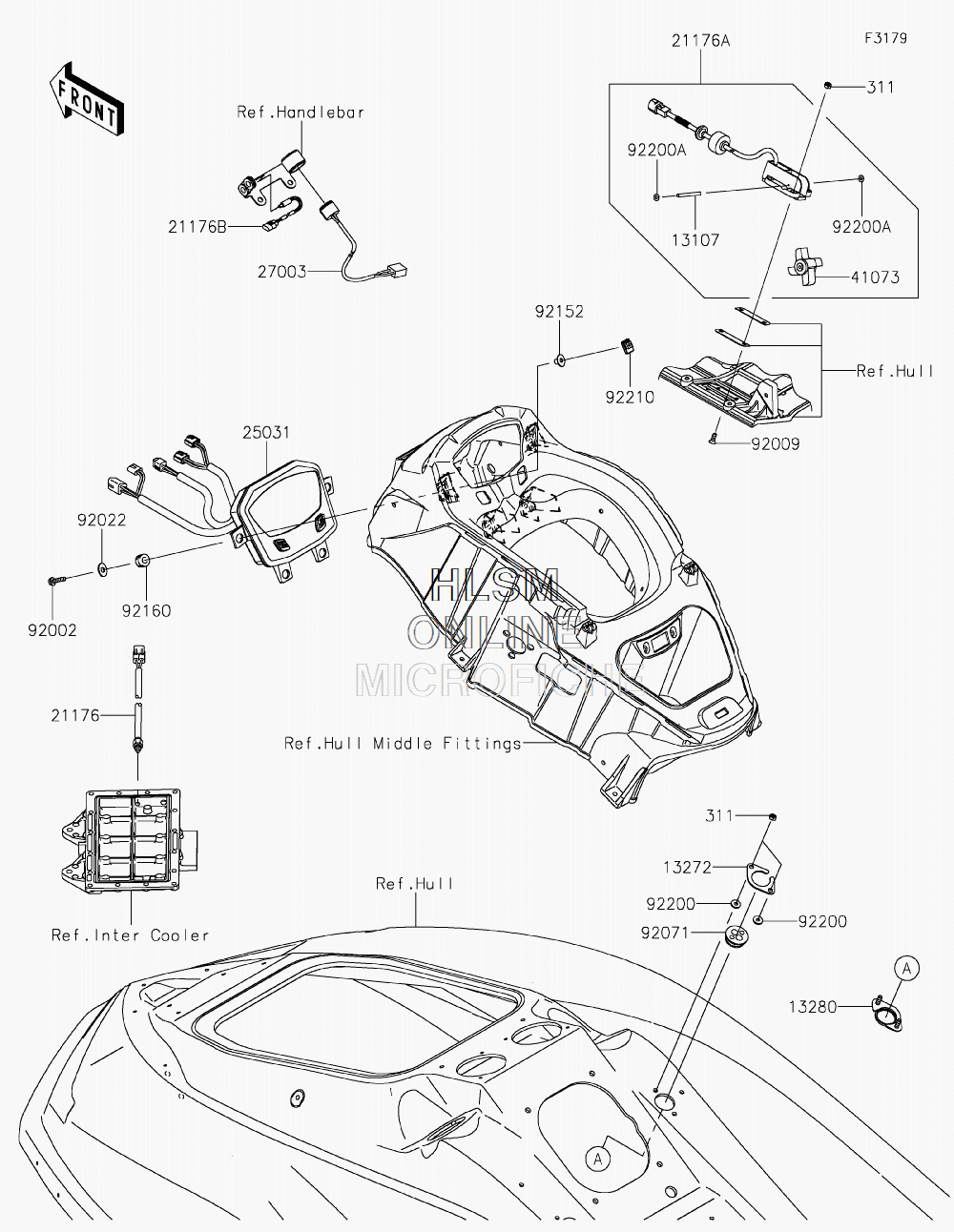

METERS для Kawasaki ULTRA 310R (JT1500NKF) - 2019 года выпуска
-
№АртикулНазвание
-
1310713107-3807 SHAFTSHAFT
-
1327213272-3729 PLATEPLATE
-
1328013280-0724 HOLDERHOLDER
-
2117621176-0072 SENSOR, TEMPSENSOR, TEMP
-
21176A21176-3775 SENSOR, SPEEDSENSOR, SPEED
-
21176B21176-3778 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
2503125031-0689 METER-ASSYMETER-ASSY
-
2700327003-3706 HORNHORN
-
311311R0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
4107341073-3701 WHEEL-ASSY, PADDLEWHEEL-ASSY, PADDLE
-
9200292002-3714 BOLT, 6X25BOLT, 6X25
-
9200992009-3703 SCREW, 6X16SCREW, 6X16
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9207192071-3790 GROMMET, HARNESSGROMMET, HARNESS
-
9215292152-3755 COLLARCOLLAR
-
9216092160-1167 DAMPER, 10X20X12DAMPER, 10X20X12
-
9220092200-1543 WASHER, 6.5X16X2.0WASHER, 6.5X16X2.0
-
92200A92200-3805 WASHERWASHER
-
9221092210-3768 NUT, 6MMNUT, 6MM
