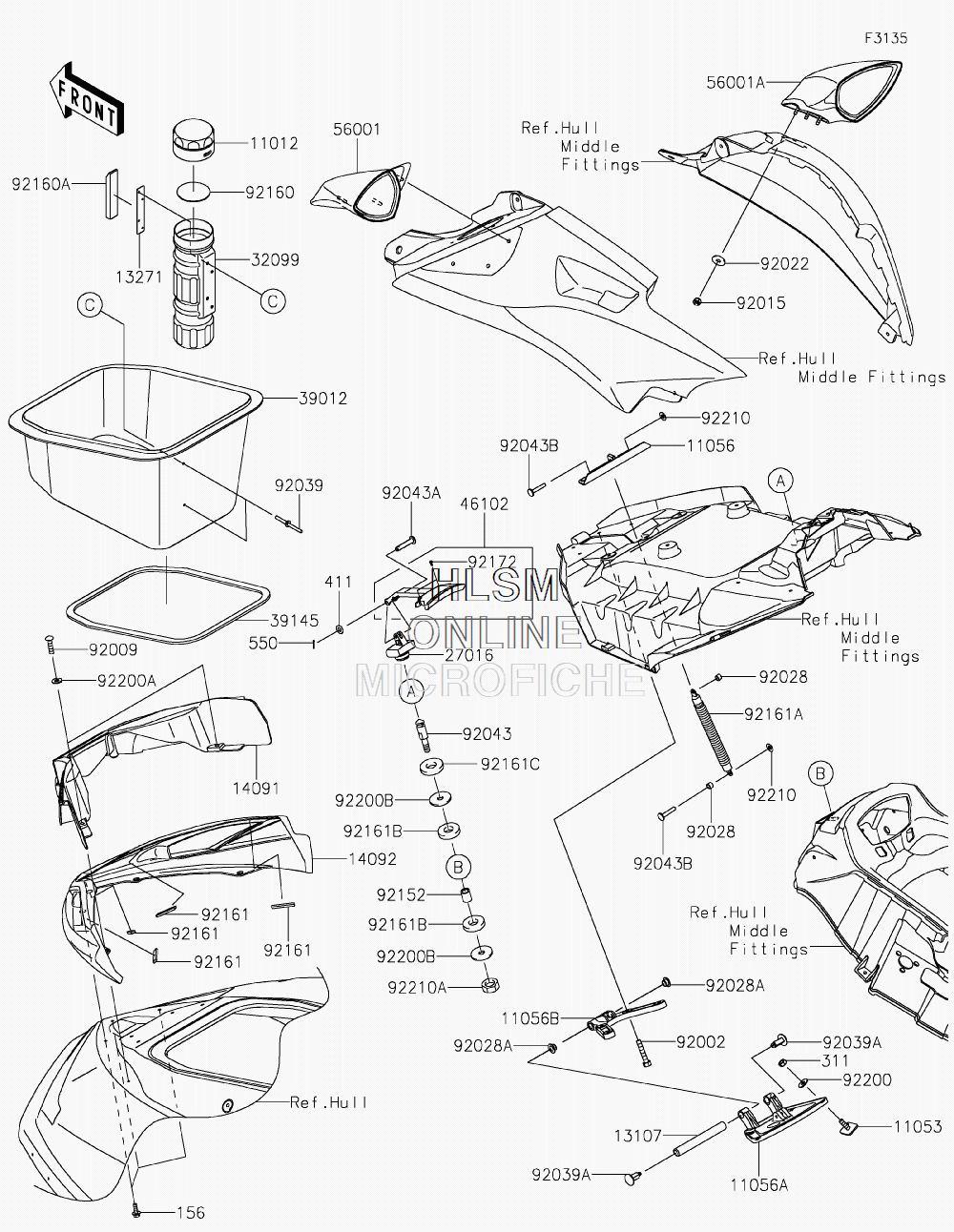

HULL FRONT FITTINGS для Kawasaki ULTRA 310X SE (JT1500PKF) - 2019 года выпуска
-
№АртикулНазвание
-
1101211012-3766 CAP, FIRE EXTINGUISHERCAP, FIRE EXTINGUISHER
-
1105311053-3776 BRACKETBRACKET
-
1105611056-3703 BRACKETBRACKET
-
11056A11056-3725 BRACKETBRACKET
-
11056B11056-3726 BRACKETBRACKET
-
1310713107-3802 SHAFT, FRONT HINGESHAFT, FRONT HINGE
-
1327113271-3775 PLATE, FIRE EXTINGUISHERPLATE, FIRE EXTINGUISHER
-
1409114091-3828 COVER, FRONT, INSIDECOVER, FRONT, INSIDE
-
1409214092-0775-57T COVER, FRONT, TOP, (C.S.F.ORANGE)COVER, FRONT, TOP, (C.S.F.ORANGE)
-
156156R0516 BOLT-WP, 5X16BOLT-WP, 5X16
-
2701627016-0085 LOCK-ASSY, HATCHLOCK-ASSY, HATCH
-
311311R0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
3209932099-3769 CASE, FIRE EXTINGUISHERCASE, FIRE EXTINGUISHER
-
3901239012-0034 CASE-STORAGECASE-STORAGE
-
3914539145-3807 TRIM-SEAL, L=1627TRIM-SEAL, L=1627
-
411411S0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
4610246102-3734 ROD, HATCH LOCKROD, HATCH LOCK
-
550550S1615 PIN-COTTER, 1.6X15PIN-COTTER, 1.6X15
-
5600156001-0263-6Z MIRROR-ASSY, LEFT HAND, (F.BLACK)MIRROR-ASSY, LEFT HAND, (F.BLACK)
-
56001A56001-0264-6Z MIRROR-ASSY, RIGHT HAND, (F.BLACK)MIRROR-ASSY, RIGHT HAND, (F.BLACK)
-
9200292002-3726 BOLT, 6X30BOLT, 6X30
-
9200992009-3842 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
9201592015-3766 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9202892028-3765 BUSHINGBUSHING
-
92028A92028-3770 BUSHINGBUSHING
-
9203992039-3783 RIVETRIVET
-
92039A92039-3788 RIVETRIVET
-
9204392043-0754 PINPIN
-
92043A92043-0795 PIN, 6X33PIN, 6X33
-
92043B92043-3748 PIN, 6X33PIN, 6X33
-
9215292152-0979 COLLAR, 8.2X14X16.2COLLAR, 8.2X14X16.2
-
9216092160-3814 DAMPERDAMPER
-
92160A92160-3821 DAMPERDAMPER
-
9216192161-1373 DAMPER, 10X50X4DAMPER, 10X50X4
-
92161A92161-1580 DAMPER, HATCHDAMPER, HATCH
-
92161B92161-3739 DAMPERDAMPER
-
92161C92161-3747 DAMPERDAMPER
-
9217292172-3716 SCREW, 3X8SCREW, 3X8
-
9220092200-3712 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92200A92200-3775 WASHER, 6.5X14.5X1.5WASHER, 6.5X14.5X1.5
-
92200B92200-3786 WASHER, 8.5X32X2WASHER, 8.5X32X2
-
9221092210-3739 NUT, SPEED, 6MMNUT, SPEED, 6MM
-
92210A92210-3742 NUT, LOCK, 8MMNUT, LOCK, 8MM
