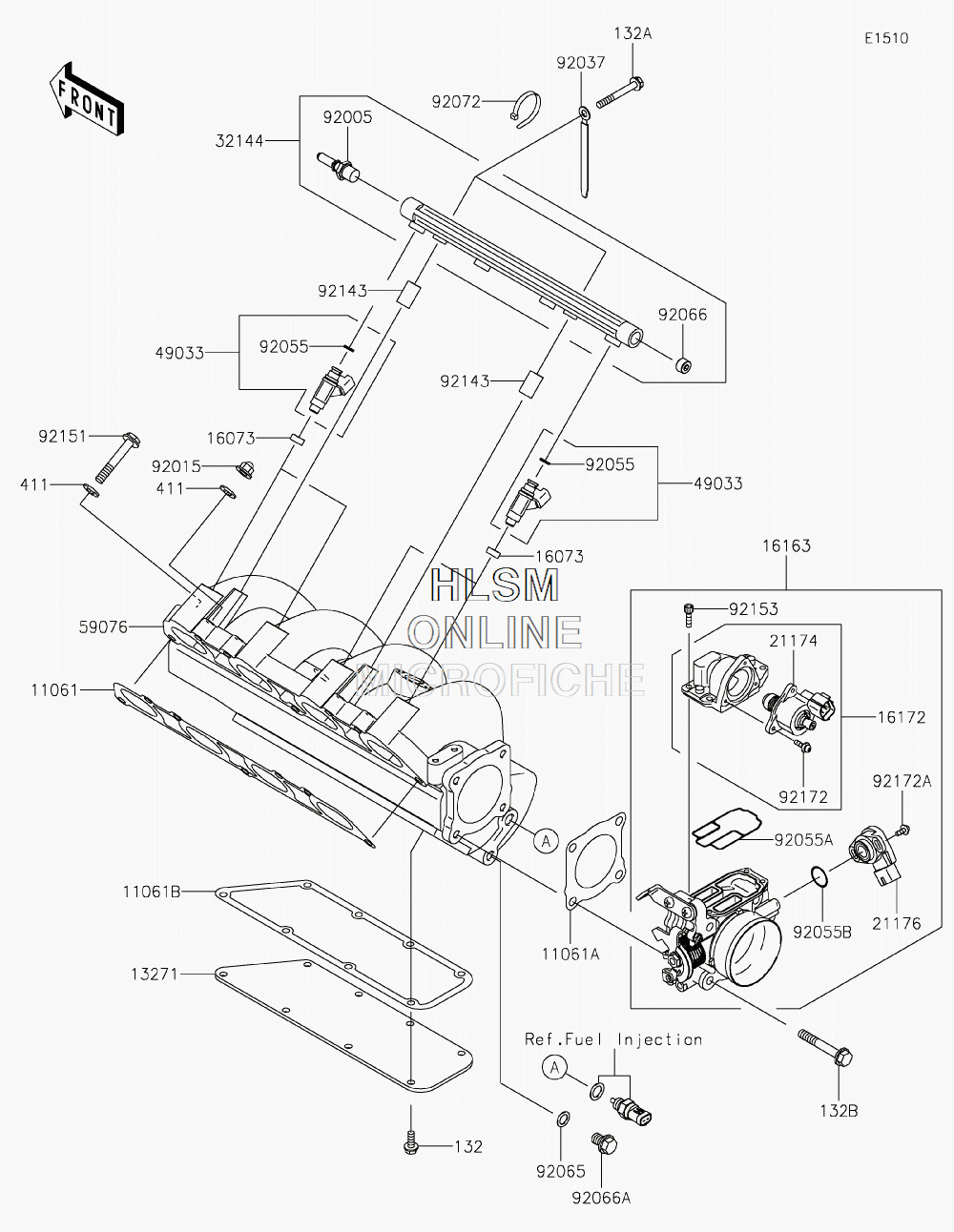

THROTTLE для Kawasaki ULTRA LX (JT1500KKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-0813 GASKET, MANIFOLDGASKET, MANIFOLD
-
11061A11061-0815 GASKET, THROTTLEGASKET, THROTTLE
-
11061B11061-3737 GASKET, PLATEGASKET, PLATE
-
132132BD0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
1327113271-3899 PLATE, MANIFOLDPLATE, MANIFOLD
-
132A132BD0650 BOLT-FLANGED-SMALL, 6X50BOLT-FLANGED-SMALL, 6X50
-
132B132BD0855 BOLT-FLANGED-SMALL, 8X55BOLT-FLANGED-SMALL, 8X55
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-0757 THROTTLE-ASSYTHROTTLE-ASSY
-
1617216172-0561 ACTUATORACTUATOR
-
2117421174-0555 MOTOR-ELECTRIC, STMMOTOR-ELECTRIC, STM
-
2117621176-3762 SENSOR, TPSSENSOR, TPS
-
3214432144-3706 PIPE-ASSYPIPE-ASSY
-
411411S0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
4903349033-3707 NOZZLE-INJECTIONNOZZLE-INJECTION
-
5907659076-3729 MANIFOLD-INTAKEMANIFOLD-INTAKE
-
9200592005-3754 FITTINGFITTING
-
9201592015-1371 NUT, CAP, 8MMNUT, CAP, 8MM
-
9203792037-3736 CLAMP, L=100CLAMP, L=100
-
9205592055-1622 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
92055A92055-3773 RING-ORING-O
-
92055B92055-3774 RING-ORING-O
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-3778 PLUGPLUG
-
92066A92066-3781 PLUGPLUG
-
9207292072-0105 BAND, L=188.85BAND, L=188.85
-
9214392143-3731 COLLARCOLLAR
-
9215192151-3730 BOLT, 8X60BOLT, 8X60
-
9215392153-3723 BOLTBOLT
-
9217292172-3710 SCREWSCREW
-
92172A92172-3711 SCREWSCREW
