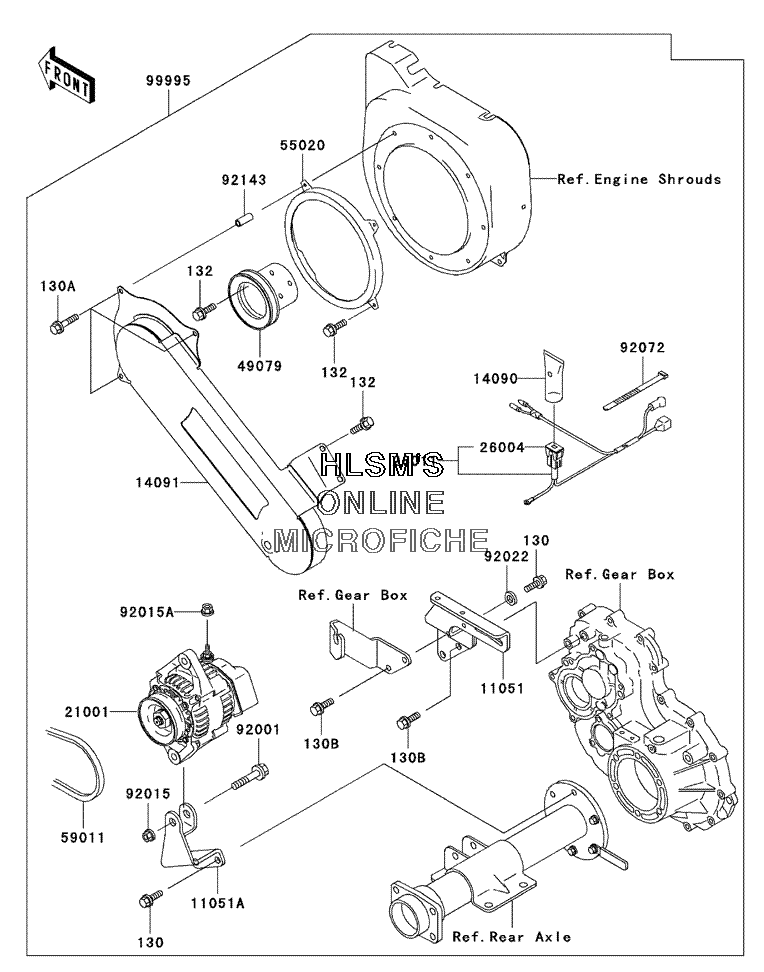

GENERATOR (OPTIONAL) для Kawasaki MULE 520 (KAF300-D1) - 2000 года выпуска
-
№АртикулНазвание
-
130130H0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
130A130J0635 BOLT-FLANGED,6X35BOLT-FLANGED,6X35
-
130B130J0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
132132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1105111051-1359 BRACKET,GENERATOR,UPPBRACKET,GENERATOR,UPP
-
11051A11051-1360 BRACKET,GENERATOR,LWRBRACKET,GENERATOR,LWR
-
1409014090-1362 COVER,FUSECOVER,FUSE
-
1409114091-1141 COVER,PULLEY BELTCOVER,PULLEY BELT
-
2100121001-1129 GENERATORGENERATOR
-
2600426004-1096 FUSE-ASSY,50AFUSE-ASSY,50A
-
2601126011-1586 WIRE-LEAD,GENERATORWIRE-LEAD,GENERATOR
-
4907949079-1060 PULLEY-BELTPULLEY-BELT
-
5502055020-2070 GUARD,FLYWHEEL SIDEGUARD,FLYWHEEL SIDE
-
5901159011-1064 BELTBELT
-
9200192001-1522 BOLT,BLACK,10X47BOLT,BLACK,10X47
-
9201592015-1189 NUT,LOCK,10MM,BLACKNUT,LOCK,10MM,BLACK
-
92015A92015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9202292022-1317 WASHER,8.5X20X1.6,BLACKWASHER,8.5X20X1.6,BLACK
-
9207292072-030 BAND,L=123BAND,L=123
-
9214392143-1046 COLLARCOLLAR
-
9999599995-1472 KIT.,ALTERNATORKIT.,ALTERNATOR
