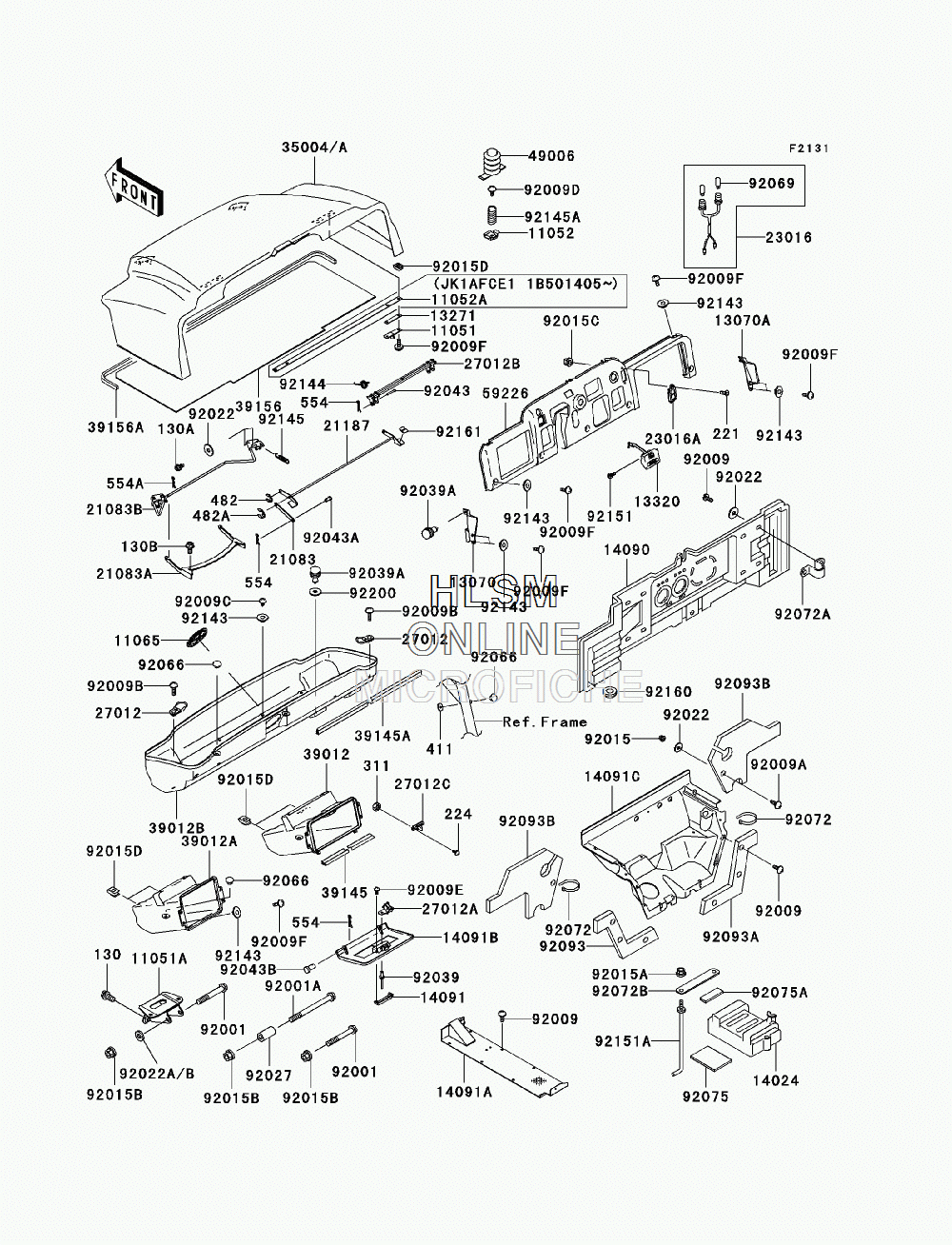

FRAME FITTINGS для Kawasaki MULE 3010 4x4 (KAF620-E1) - 2001 года выпуска
-
№АртикулНазвание
-
1105111051-1756 BRACKETBRACKET
-
11051A11051-1757 BRACKET, FRONT GEAR CASEBRACKET, FRONT GEAR CASE
-
1105211052-1258 BRACKETBRACKET
-
11052A11052-1369 BRACKET (JK1AFCE1 1B501405 AND ABOVE)BRACKET (JK1AFCE1 1B501405 AND ABOVE)
-
1106511065-1053-6Z CAP, (F.BLACK)CAP, (F.BLACK)
-
1307013070-1367 GUIDE, LEFT HANDGUIDE, LEFT HAND
-
13070A13070-1368 GUIDE, RIGHT HANDGUIDE, RIGHT HAND
-
1327113271-1663 PLATEPLATE
-
1332013320-1016 LEVER-ASSYLEVER-ASSY
-
1402414024-1792 COVER, BATTERYCOVER, BATTERY
-
1409014090-1271 COVER, SEAT UNDERCOVER, SEAT UNDER
-
1409114091-1228-AZ COVER, (GRAY)COVER, (GRAY)
-
14091A14091-1250 COVER, FLOOR, CENTERCOVER, FLOOR, CENTER
-
14091B14091-1360-AZ COVER, (GRAY)COVER, (GRAY)
-
14091C14091-1378 COVER, FLOORCOVER, FLOOR
-
2108321083-1146 ARMARM
-
21083A21083-1163 ARMARM
-
21083B21083-1164 ARMARM
-
2118721187-1085 ARM-ASSYARM-ASSY
-
2301623016-1188 LAMP-ASSY, INDICATORLAMP-ASSY, INDICATOR
-
23016A23016-1189 LAMP-ASSYLAMP-ASSY
-
2701227012-1577 HOOKHOOK
-
27012A27012-1607 HOOKHOOK
-
27012B27012-1608 HOOKHOOK
-
27012C27012-1612 HOOKHOOK
-
3500435004-1435-6A FENDER-FRONT, (HUNTER GREEN)FENDER-FRONT, (HUNTER GREEN)
-
35004A35004-1435-6L FENDER-FRONT, (FIRECRACKER RED)FENDER-FRONT, (FIRECRACKER RED)
-
3901239012-1061-AZ CASE-STORAGE, RIGHT HAND, (GRAY)CASE-STORAGE, RIGHT HAND, (GRAY)
-
39012A39012-1062-AZ CASE-STORAGE, LEFT HAND, (GRAY)CASE-STORAGE, LEFT HAND, (GRAY)
-
39012B39012-1066 CASE-STORAGE, CNTCASE-STORAGE, CNT
-
3914539145-1130 TRIM-SEAL, L=774TRIM-SEAL, L=774
-
39145A39145-1132 TRIM-SEAL, L=2805TRIM-SEAL, L=2805
-
3915639156-1684 PADPAD
-
39156A39156-1685 PADPAD
-
4900649006-1347 BOOTBOOT
-
5922659226-1060-AZ PANEL-CONTROL, (GRAY)PANEL-CONTROL, (GRAY)
-
9200192001-1600 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
92001A92001-1603 BOLT, FLANGED, 10X115BOLT, FLANGED, 10X115
-
9200992009-1166 SCREWSCREW
-
92009A92009-1181 SCREW, 6X18, (BLACK)SCREW, 6X18, (BLACK)
-
130130G1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130A130J0612 BOLT-FLANGEDBOLT-FLANGED
-
130B130J0816 BOLT-FLANGED, 8X16, (BLACK)BOLT-FLANGED, 8X16, (BLACK)
-
92009B92009-1256 SCREW, 6X22, (BLACK)SCREW, 6X22, (BLACK)
-
92009C92009-1261 SCREW, TAPPING, 6MMSCREW, TAPPING, 6MM
-
92009D92009-1288 SCREW, 6X14SCREW, 6X14
-
92009E92009-1444 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009F92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1386 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015B92015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015C92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015D92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202292022-1346 WASHER, 6.5X20X1.6, (BLACK)WASHER, 6.5X20X1.6, (BLACK)
-
92022A92022-1649 WASHER, 10.2X20X0.5WASHER, 10.2X20X0.5
-
92022B92022-239 WASHER, 10.5X20X1WASHER, 10.5X20X1
-
9202792027-1518 COLLAR, 11X20X39COLLAR, 11X20X39
-
9203992039-1041 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
9204392043-1625 PIN, 6X39PIN, 6X39
-
92043A92043-1626 PIN, 6X9PIN, 6X9
-
92043B92043-1627 PIN, 6X13PIN, 6X13
-
9206692066-1485 PLUGPLUG
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
9207292072-1197 BAND, L=365BAND, L=365
-
92072A92072-1252 BANDBAND
-
92072B92072-1399 BAND, L=159BAND, L=159
-
9207592075-1076 DAMPERDAMPER
-
92075A92075-1214 DAMPERDAMPER
-
9209392093-1293 SEAL, FRONT FENDER, LEFT HANDSEAL, FRONT FENDER, LEFT HAND
-
92093A92093-1294 SEAL, FRONT FENDER, RIGHT HANDSEAL, FRONT FENDER, RIGHT HAND
-
92093B92093-1295 SEAL, LOWER COVERSEAL, LOWER COVER
-
9214392143-1087 COLLARCOLLAR
-
9214492144-1174 SPRING, SEAT HOOKSPRING, SEAT HOOK
-
9214592145-1335 SPRINGSPRING
-
92145A92145-1402 SPRINGSPRING
-
9215192151-1305 BOLT, 5X12BOLT, 5X12
-
92151A92151-1897 BOLT, BATTERYBOLT, BATTERY
-
9216092160-1148 DAMPERDAMPER
-
9216192161-1197 DAMPERDAMPER
-
9220092200-1567 WASHER, 8.5X26X0.8WASHER, 8.5X26X0.8
-
221221C0616 SCREW-CSK-CROSSCREW-CSK-CROS
-
224224C0412 SCREW-PAN-WP-CROS, 4X12SCREW-PAN-WP-CROS, 4X12
-
311311C0400 NUT-HEXNUT-HEX
-
411411F1000 WASHER-PLAIN, 10MM, (BLACK)WASHER-PLAIN, 10MM, (BLACK)
-
482482L5000 CIRCLIP-TYPE-E, 5MMCIRCLIP-TYPE-E, 5MM
-
482A482L7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
554554A0600 PIN-SNAPPIN-SNAP
-
554A554A0800 PIN-SNAP, 8MMPIN-SNAP, 8MM
