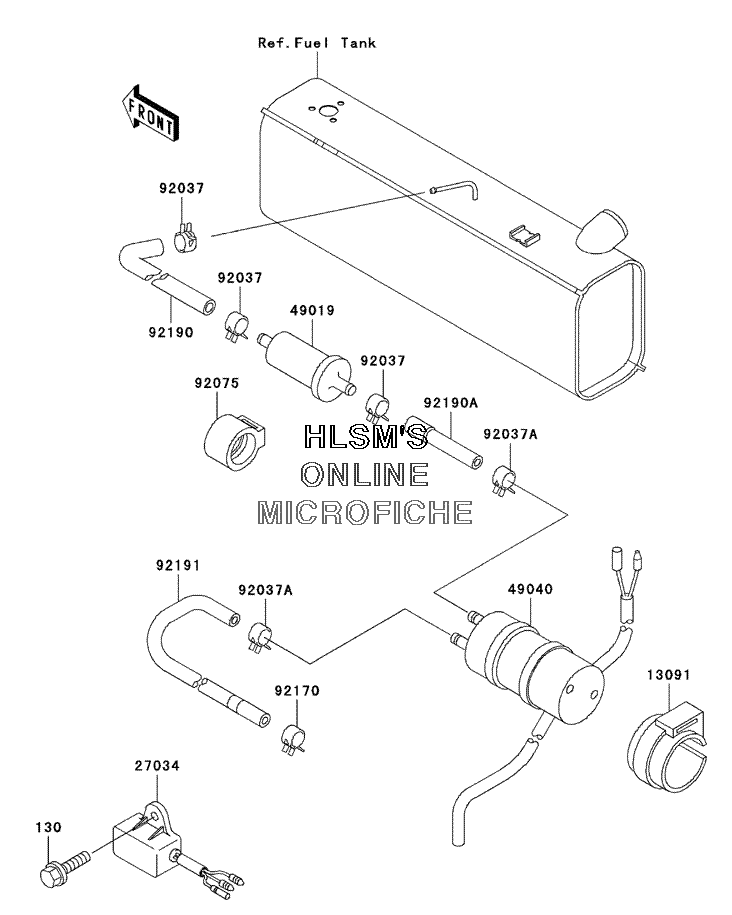

FUEL PUMP для Kawasaki MULE 3020 (KAF620-F1) - 2001 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT, FLANGED, 6X14 (BLACK)BOLT, FLANGED, 6X14 (BLACK)
-
1309113091-1512 HOLDERHOLDER
-
2703427034-1053 RELAY, FUEL CUTRELAY, FUEL CUT
-
4901949019-1055 FILTER, FUELFILTER, FUEL
-
4904049040-1055 PUMP, FUELPUMP, FUEL
-
9203792037-1181 CLAMPCLAMP
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
9207592075-1853 DAMPER, FUEL FILTERDAMPER, FUEL FILTER
-
9217092170-2082 CLAMPCLAMP
-
9219092190-1325 TUBE, 8X13X370TUBE, 8X13X370
-
92190A92190-1437 TUBE, FILTER, PUMPTUBE, FILTER, PUMP
-
9219192191-1479 TUBETUBE
