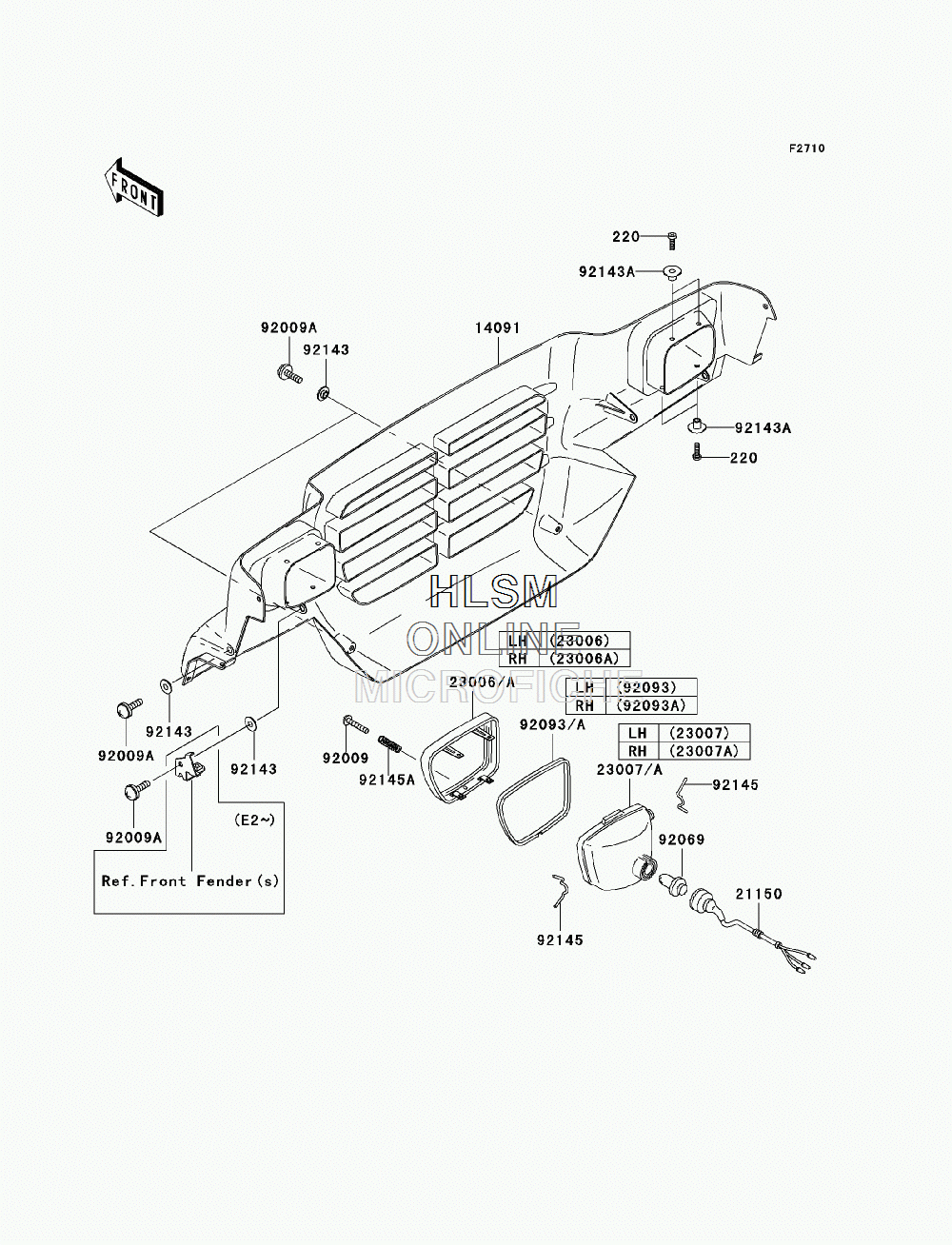

HEADLIGHT(S) для Kawasaki MULE 3010 4x4 (KAF620-E2) - 2002 года выпуска
-
№АртикулНазвание
-
220220F0516 SCREW-PAN-CROSSSCREW-PAN-CROSS
-
1409114091-1225-6Z COVER, FRONT GRIL, (F.BLACK)COVER, FRONT GRIL, (F.BLACK)
-
2115021150-1060 CORD-ASSY, HEAD LAMPCORD-ASSY, HEAD LAMP
-
2300623006-1075 RIM-LAMP, LEFT HANDRIM-LAMP, LEFT HAND
-
23006A23006-1076 RIM-LAMP, RIGHT HANDRIM-LAMP, RIGHT HAND
-
2300723007-1354 LENS-COMP, HEAD LAMP, LEFT HANDLENS-COMP, HEAD LAMP, LEFT HAND
-
23007A23007-1355 LENS-COMP, HEAD LAMP, RIGHT HANDLENS-COMP, HEAD LAMP, RIGHT HAND
-
9200992009-1139 SCREW, TAPPING, 4X30SCREW, TAPPING, 4X30
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9206992069-1080 BULB, 12V 30/30WBULB, 12V 30/30W
-
9209392093-1481 SEAL, HEAD LAMP, LEFT HANDSEAL, HEAD LAMP, LEFT HAND
-
92093A92093-1482 SEAL, HEAD LAMP, RIGHT HANDSEAL, HEAD LAMP, RIGHT HAND
-
9214392143-1087 COLLARCOLLAR
-
92143A92143-1234 COLLARCOLLAR
-
9214592145-1190 SPRINGSPRING
-
92145A92145-1230 SPRINGSPRING
