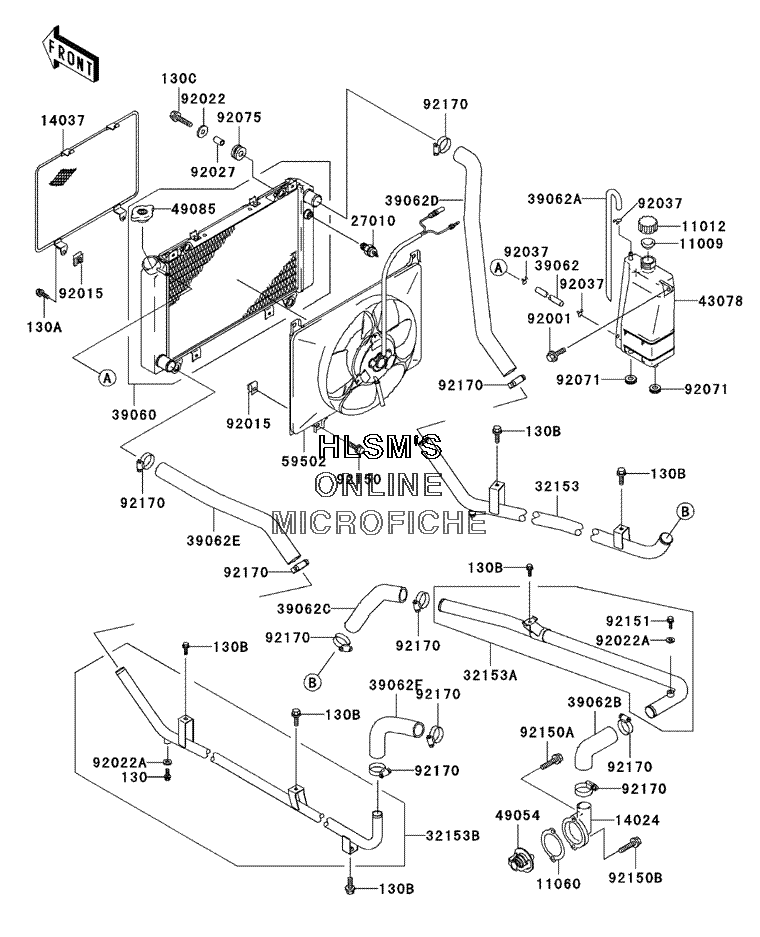

RADIATOR для Kawasaki MULE 3020 (KAF620-F2) - 2002 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT-FLANGEDBOLT-FLANGED
-
130A130J0612 BOLT-FLANGEDBOLT-FLANGED
-
130B130J0614 BOLT-FLANGED, 6X14, BLACKBOLT-FLANGED, 6X14, BLACK
-
130C130J0825 BOLT-FLANGED, 8X25, BLACKBOLT-FLANGED, 8X25, BLACK
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1106011060-2084 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
1402414024-2293 COVER, THERMOSTATCOVER, THERMOSTAT
-
1403714037-1284 SCREENSCREEN
-
2701027010-1317 SWITCH, FANSWITCH, FAN
-
3215332153-1056 PIPE (RIGHT)PIPE (RIGHT)
-
32153A32153-1325 PIPE (RIGHT)PIPE (RIGHT)
-
32153B32153-1326 PIPE (LEFT)PIPE (LEFT)
-
3906039060-1172 RADIATORRADIATOR
-
3906239062-1829 HOSE-COOLINGHOSE-COOLING
-
39062A39062-1830 HOSE-COOLINGHOSE-COOLING
-
39062B39062-1832 HOSE-COOLINGHOSE-COOLING
-
39062C39062-1833 HOSE-COOLINGHOSE-COOLING
-
39062D39062-1834 HOSE-COOLINGHOSE-COOLING
-
39062E39062-1835 HOSE-COOLINGHOSE-COOLING
-
39062F39062-1836 HOSE-COOLINGHOSE-COOLING
-
4307843078-1185 RESERVOIRRESERVOIR
-
4905449054-2056 THERMOSTATTHERMOSTAT
-
4908549085-1066 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5950259502-1137 FAN-ASSYFAN-ASSY
-
9200192001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9201592015-1487 NUTNUT
-
9202292022-1317 WASHER, 8.5X20X1.6, BLACKWASHER, 8.5X20X1.6, BLACK
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202792027-102 COLLAR, 8.8X12X10.7COLLAR, 8.8X12X10.7
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9207192071-1115 GROMMETGROMMET
-
9207592075-294 DAMPERDAMPER
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
92150A92150-2230 BOLT, 6X40BOLT, 6X40
-
92150B92150-2231 BOLT, 6X20BOLT, 6X20
-
9215192151-1832 BOLT, 6X10BOLT, 6X10
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
