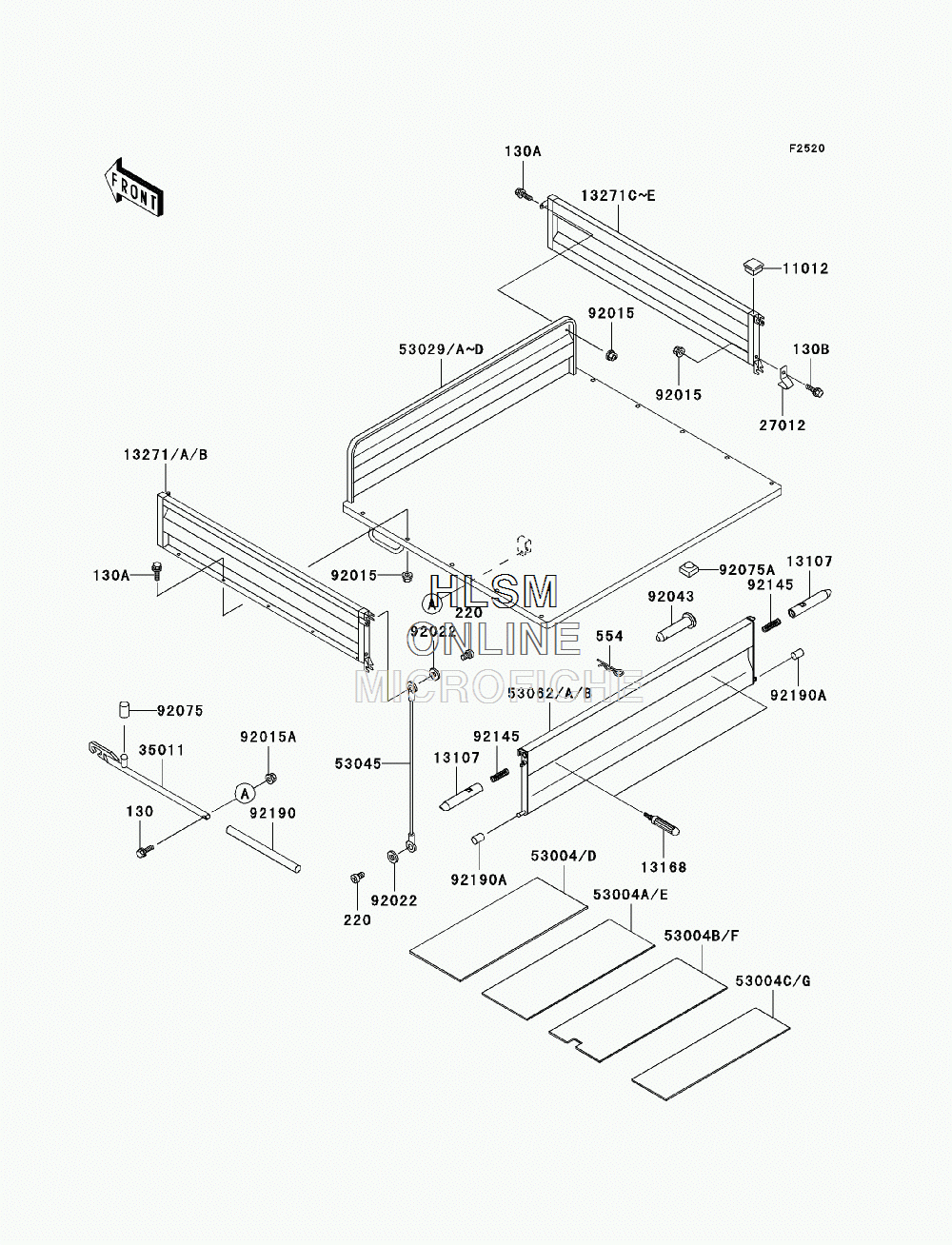

CARRIER(S) для Kawasaki MULE 3010 4x4 (KAF620-E3) - 2003 года выпуска
-
№АртикулНазвание
-
130130H0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
130A130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130J0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
220220F0610 SCREW-PAN-CROS, 6X10, (BLACK)SCREW-PAN-CROS, 6X10, (BLACK)
-
554554A1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
-
1101211012-1784 CAPCAP
-
1310713107-1453 SHAFTSHAFT
-
1316813168-1695 LEVERLEVER
-
13271A13271-1430-B9 PLATE, CAREARIER, SIDE, LEFT HAND, (H.GREEN) (FOR B9 HUNTER GREEN)PLATE, CAREARIER, SIDE, LEFT HAND, (H.GREEN) (FOR B9 HUNTER GREEN)
-
13271B13271-1430-46 PLATE, CAREARIER, SIDE, LEFT HAND, (A.RED)PLATE, CAREARIER, SIDE, LEFT HAND, (A.RED)
-
13271D13271-1433-B9 PLATE, CAREARIER, SIDE, RIGHT HAND, (H.GREEN) (FOR B9 HUNTER GREEN)PLATE, CAREARIER, SIDE, RIGHT HAND, (H.GREEN) (FOR B9 HUNTER GREEN)
-
13271E13271-1433-46 PLATE, CAREARIER, SIDE, RIGHT HAND, (A.RED)PLATE, CAREARIER, SIDE, RIGHT HAND, (A.RED)
-
2701227012-1406 HOOK, TAIL GATEHOOK, TAIL GATE
-
3501135011-1648 STAY, CAREARIER STOPPERSTAY, CAREARIER STOPPER
-
53004D53004-1157 MATMAT
-
53004E53004-1158 MATMAT
-
53004F53004-1159 MATMAT
-
53004G53004-1160 MATMAT
-
53029C53029-1246-B9 CAREARIER, (H.GREEN)CAREARIER, (H.GREEN)
-
53029D53029-1246-46 CAREARIER, (A.RED)CAREARIER, (A.RED)
-
5304553045-1065 HOOK-ASSY, TAIL GATEHOOK-ASSY, TAIL GATE
-
53062A53062-1006-B9 GATE-TAIL, (H.GREEN)GATE-TAIL, (H.GREEN)
-
53062B53062-1006-46 GATE-TAIL, (A.RED)GATE-TAIL, (A.RED)
-
9201592015-1408 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9204392043-1428 PIN, 12X65PIN, 12X65
-
9207592075-1817 DAMPERDAMPER
-
92075A92075-1882 DAMPERDAMPER
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9219092190-1401 TUBE, 13X16X200TUBE, 13X16X200
-
92190A92190-1467 TUBE, 8X10X15TUBE, 8X10X15
