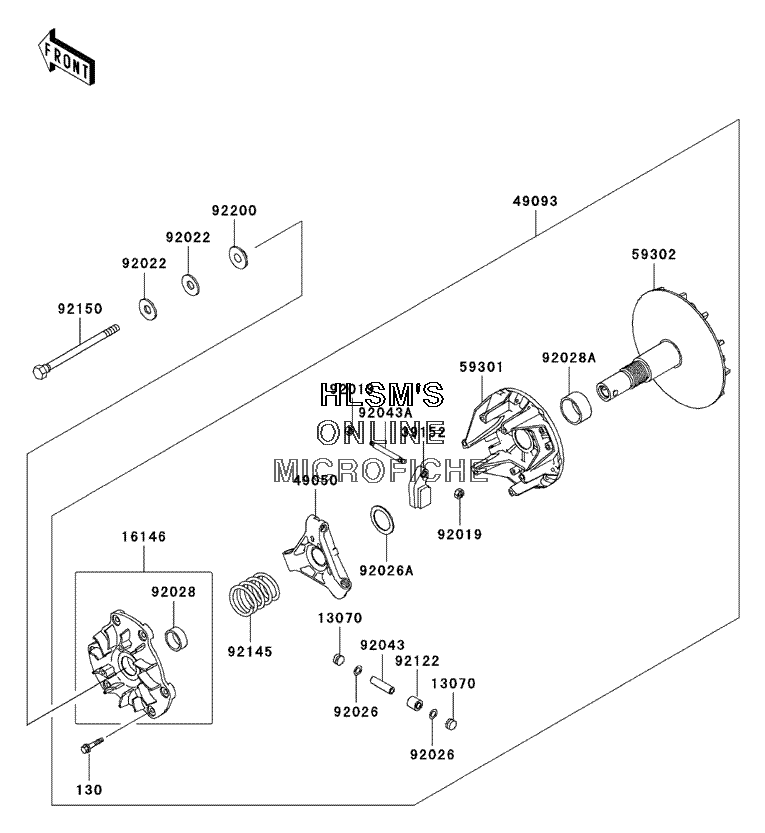

DRIVE CONVERTER для Kawasaki MULE 3000 (KAF620-G4) - 2004 года выпуска
-
№АртикулНазвание
-
130130P0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
1307013070-1330 GUIDEGUIDE
-
1614616146-1219 COVER-ASSYCOVER-ASSY
-
3915239152-1078 WEIGHT-RAMPWEIGHT-RAMP
-
4905049050-1076 SPIDERSPIDER
-
4909349093-1069 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
5930159301-1060 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-1085 SHEAVE-COMPSHEAVE-COMP
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-1901 WASHER, SPECIAL CONICALWASHER, SPECIAL CONICAL
-
9202692026-1512 SPACERSPACER
-
92026A92026-1591 SPACERSPACER
-
9202892028-1861 BUSHINGBUSHING
-
92028A92028-1864 BUSHINGBUSHING
-
9204392043-1572 PINPIN
-
92043A92043-1573 PINPIN
-
9212292122-1204 ROLLERROLLER
-
9214592145-1388 SPRINGSPRING
-
9215092150-1008 BOLT, 12X163.5BOLT, 12X163.5
-
9220092200-1401 WASHERWASHER
