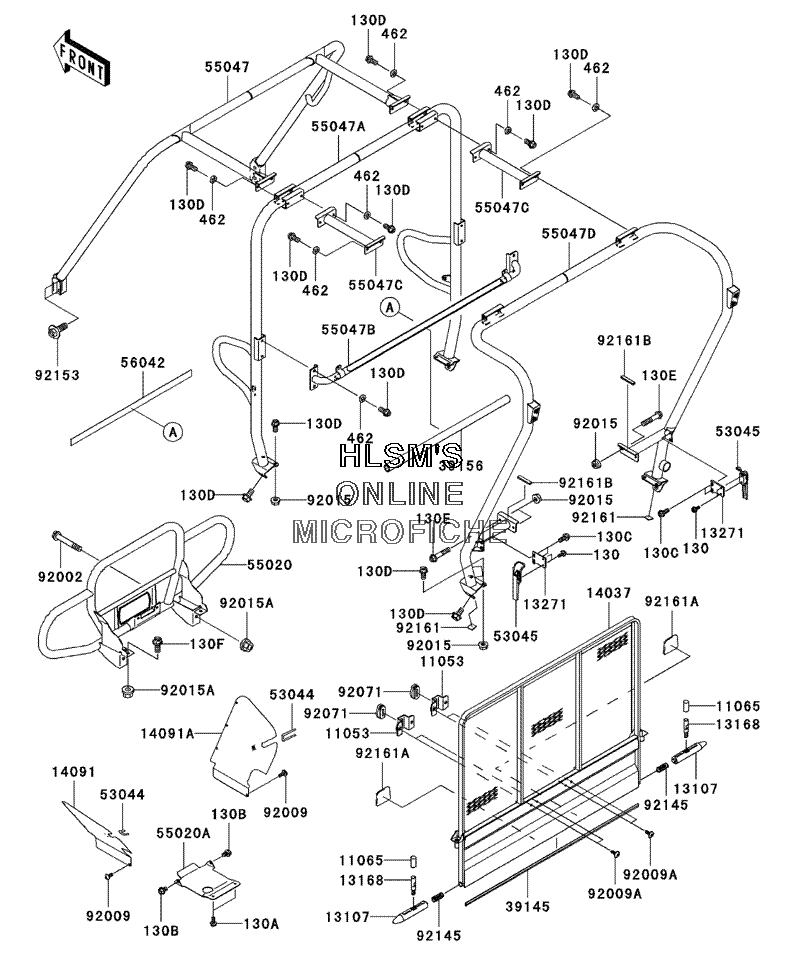

GUARD(S) / CAB FRAME для Kawasaki MULE 3010 Trans4x4 (KAF620-J1) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
130A130J0616 BOLT-FLANGED, 6X16 (BLACK)BOLT-FLANGED, 6X16 (BLACK)
-
130B130J0812 BOLT-FLANGEDBOLT-FLANGED
-
130C130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130D130J1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130E130J1050 BOLT-FLANGEDBOLT-FLANGED
-
130F130P1225 BOLT-FLANGEDBOLT-FLANGED
-
462462K1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
1105311053-7528 BRACKET, SCREENBRACKET, SCREEN
-
1106511065-7503 CAPCAP
-
1310713107-7501 SHAFTSHAFT
-
1316813168-7506 LEVERLEVER
-
1327113271-7540 PLATE, HOOKPLATE, HOOK
-
1403714037-7501 SCREEN, REAR CABSCREEN, REAR CAB
-
1409114091-1142 COVER, FRONT (LEFT)COVER, FRONT (LEFT)
-
14091A14091-1143 COVER, FRONT (RIGHT)COVER, FRONT (RIGHT)
-
3914539145-7502 TRIM-SEAL, L=1157TRIM-SEAL, L=1157
-
3915639156-7502 PADPAD
-
5304453044-1137 TRIMTRIM
-
5304553045-7501 HOOK-ASSYHOOK-ASSY
-
5502055020-7505 GUARD, FRONTGUARD, FRONT
-
55020A55020-7506 GUARD, GEAR CASEGUARD, GEAR CASE
-
5504755047-7501 BAR-COMP, FRONTBAR-COMP, FRONT
-
55047A55047-7502 BAR-COMP, CENTERBAR-COMP, CENTER
-
55047B55047-7503 BAR-COMP, FRONT SEATBAR-COMP, FRONT SEAT
-
55047C55047-7504 BAR-COMP, TOPBAR-COMP, TOP
-
55047D55047-7507 BAR-COMP, REARBAR-COMP, REAR
-
5604256042-7501 ADHESIVEADHESIVE
-
9200292002-1661 BOLT, FLANGED, 12X75BOLT, FLANGED, 12X75
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1662 SCREW, 6X14SCREW, 6X14
-
9201592015-1366 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9207192071-7505 GROMMETGROMMET
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9215392153-1282 BOLT, FLANGED, 14X36BOLT, FLANGED, 14X36
-
9216192161-0020 DAMPERDAMPER
-
92161A92161-0061 DAMPERDAMPER
-
92161B92161-7514 DAMPERDAMPER
