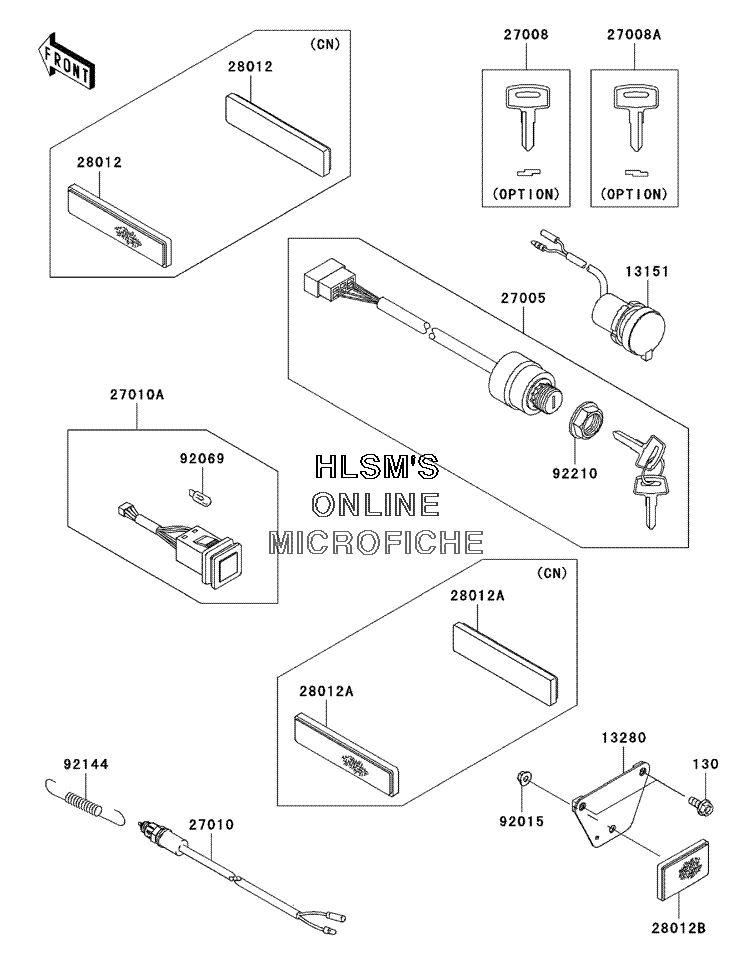

SWITCHES для Kawasaki MULE 610 4x4 (KAF400-A1) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
1315113151-0003 SWITCH-COMP, D.C.TERMINALSWITCH-COMP, D.C.TERMINAL
-
1328013280-0146 HOLDER, REFLECTORHOLDER, REFLECTOR
-
2700527005-0011 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1153 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
27008A27008-1157 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-1475 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-1498 SWITCH, HEAD LAMPSWITCH, HEAD LAMP
-
2801228012-1086 REFLECTOR-REFLEX, FRONT (CANADA ONLY)REFLECTOR-REFLEX, FRONT (CANADA ONLY)
-
28012A28012-1087 REFLECTOR-REFLEX, REAR (CANADA ONLY)REFLECTOR-REFLEX, REAR (CANADA ONLY)
-
28012B28012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9206992069-1118 BULB, 12V 1.7W, T6.5BULB, 12V 1.7W, T6.5
-
9214492144-1143 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9221092210-1264 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
