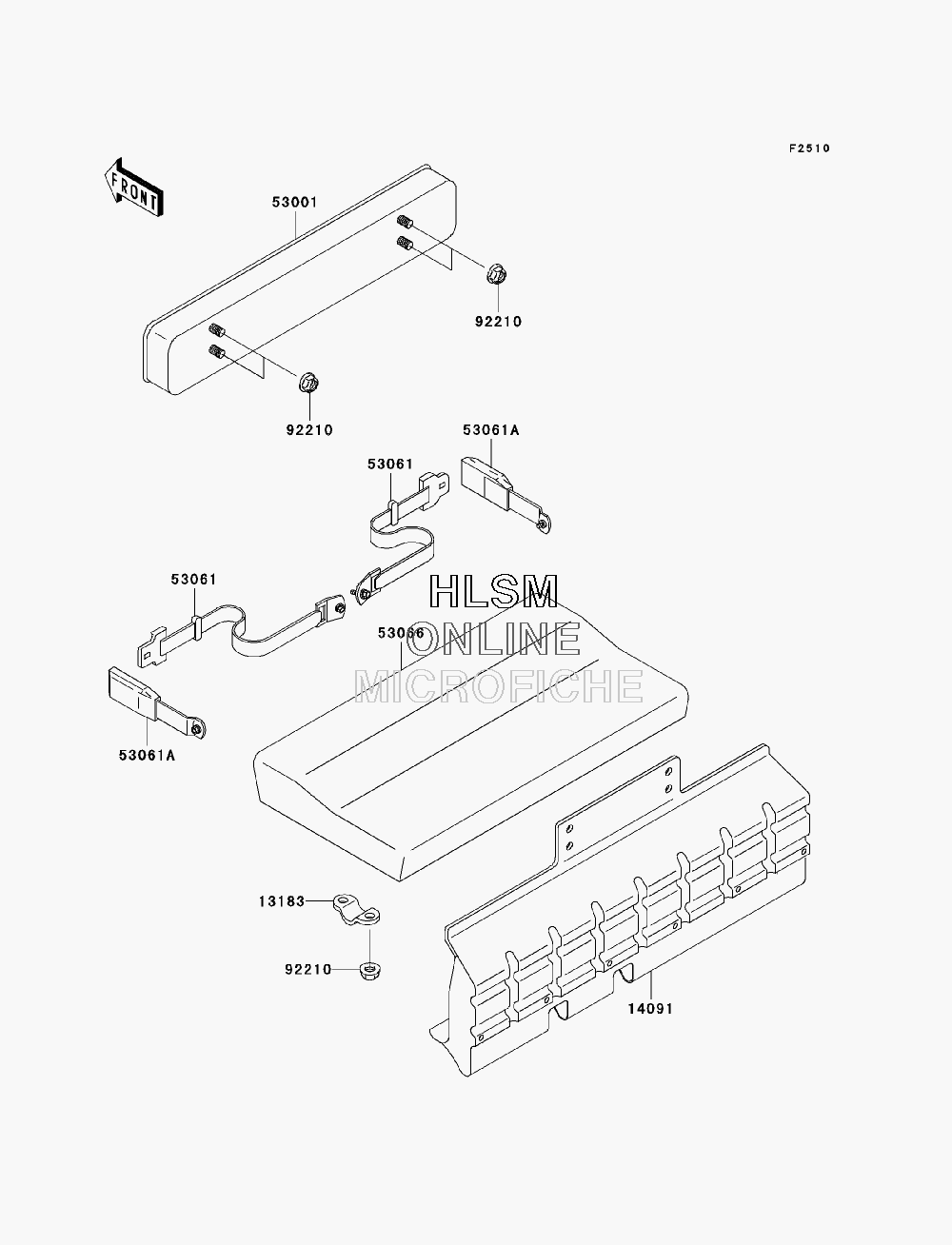

SEAT для Kawasaki MULE 3010 4X4 HARDWOODS GREEN HD (KAF620H6F) - 2006 года выпуска
-
№АртикулНазвание
-
1318313183-1400 PLATE, SEATPLATE, SEAT
-
1409114091-0529 COVER, SEAT BACKCOVER, SEAT BACK
-
5300153001-1584-MB SEAT-ASSY, BACK, S. M. BROWNSEAT-ASSY, BACK, S. M. BROWN
-
5306153061-1013 BELT-SEAT, CATCH PLATEBELT-SEAT, CATCH PLATE
-
53061A53061-1014 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
5306653066-7501-MB SEAT-ASSY, CUSHION, S. M. BROWNSEAT-ASSY, CUSHION, S. M. BROWN
-
9221092210-0005 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
