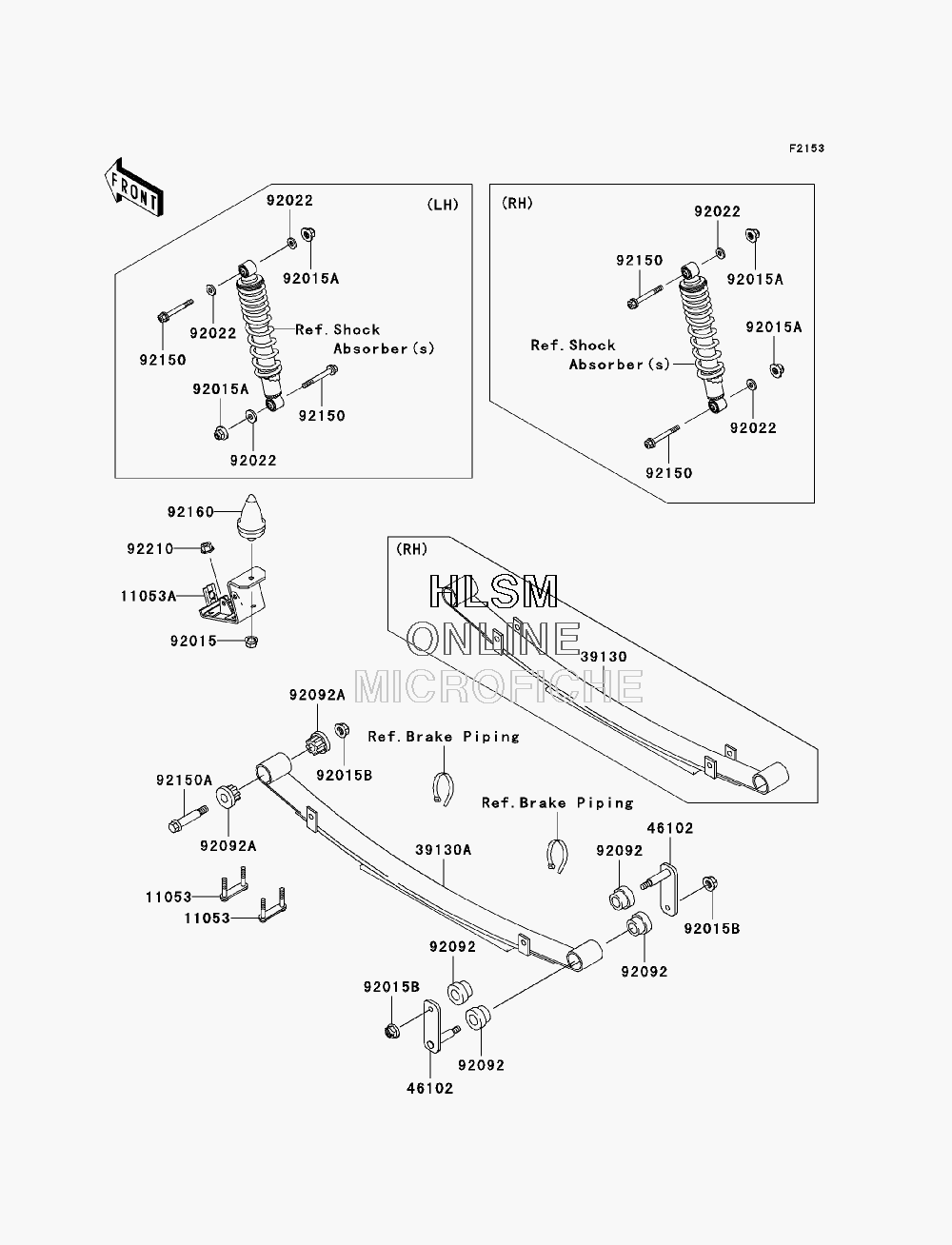

SUSPENSION - REAR для Kawasaki MULE 3010 Diesel 4x4 (KAF950B6F) - 2006 года выпуска
-
№АртикулНазвание
-
1105311053-7564 BRACKET, LEAF SPRINGBRACKET, LEAF SPRING
-
11053A11053-7567 BRACKET, LEAF SPRINGBRACKET, LEAF SPRING
-
3913039130-1066 SPRING-LEAFSPRING-LEAF
-
39130A39130-1077 SPRING-LEAF, LEFT HANDSPRING-LEAF, LEFT HAND
-
4610246102-1338 ROD, LEAF SPRING, REARROD, LEAF SPRING, REAR
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015B92015-1706 NUT, 12MMNUT, 12MM
-
9202292022-1768 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
9209292092-1083 BUSHING-RUBBERBUSHING-RUBBER
-
92092A92092-1084 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1227 BOLT, FLANGED, 10X57BOLT, FLANGED, 10X57
-
92150A92150-1284 BOLT, 12MMBOLT, 12MM
-
9216092160-1136 DAMPER, BUMP STOPPERDAMPER, BUMP STOPPER
-
9221092210-1204 NUT, LOCK, 10MMNUT, LOCK, 10MM
