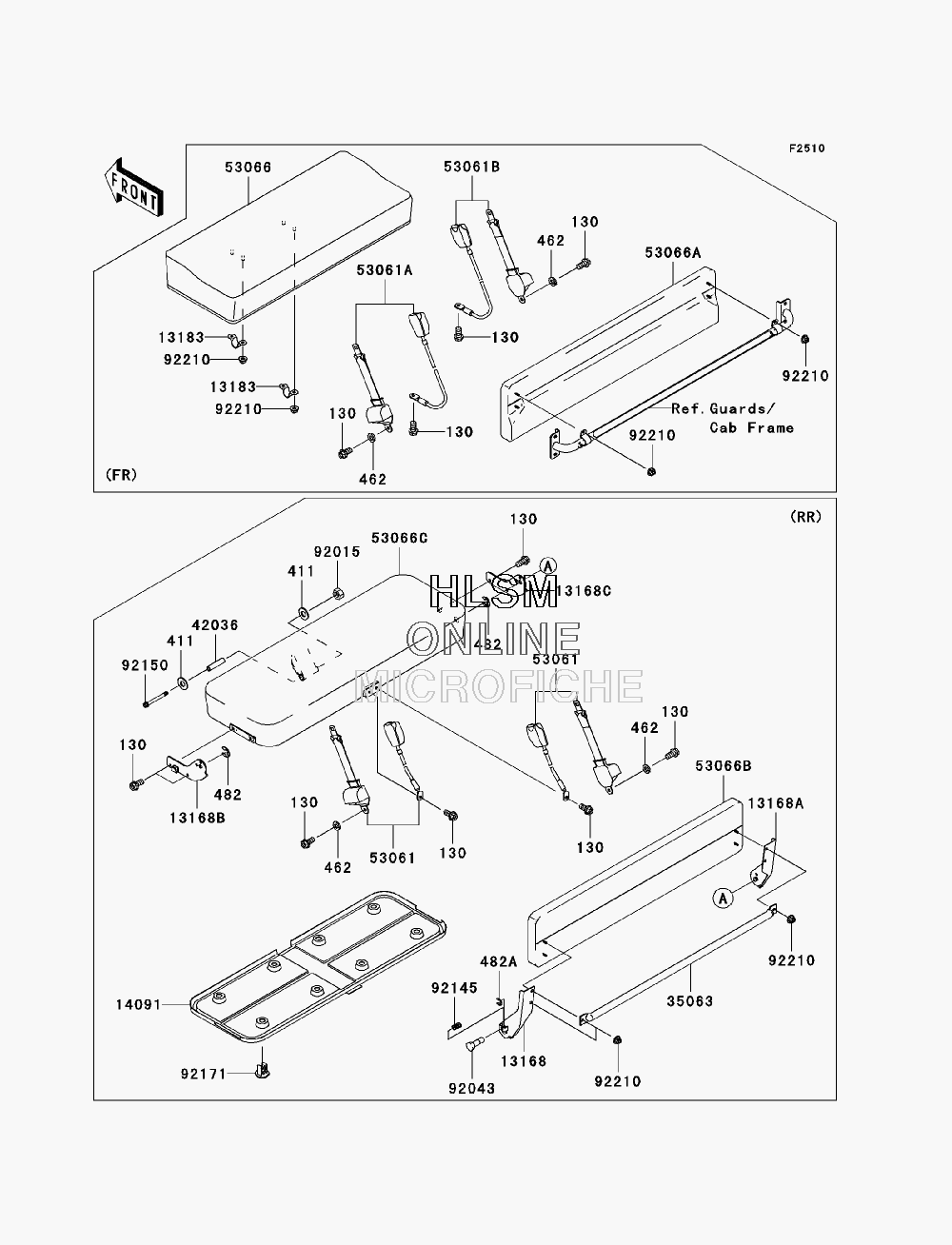

SEAT для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620K6F) - 2006 года выпуска
-
№АртикулНазвание
-
130130BB1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
411411F1200 WASHER-PLAINWASHER-PLAIN
-
462462K1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
482482L0200 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
482A482L8000 CIRCLIP-TYPE-E, 8MMCIRCLIP-TYPE-E, 8MM
-
1316813168-7502 LEVER, SEAT, TOP, LEFT HANDLEVER, SEAT, TOP, LEFT HAND
-
13168A13168-7503 LEVER, SEAT, TOP, RIGHT HANDLEVER, SEAT, TOP, RIGHT HAND
-
13168B13168-7504 LEVER, SEAT, LWR, LEFT HANDLEVER, SEAT, LWR, LEFT HAND
-
13168C13168-7505 LEVER, SEAT, LWR, RIGHT HANDLEVER, SEAT, LWR, RIGHT HAND
-
1318313183-1400 PLATE, SEATPLATE, SEAT
-
1409114091-7528 COVER, REAR SEAT, BOTTOMCOVER, REAR SEAT, BOTTOM
-
3506335063-7510 STAY, REAR BACKSTAY, REAR BACK
-
4203642036-7501 SLEEVE, 12.1X20X85SLEEVE, 12.1X20X85
-
5306153061-7502 BELT-SEAT, REARBELT-SEAT, REAR
-
53061A53061-7503 BELT-SEAT, FRONT, LEFT HANDBELT-SEAT, FRONT, LEFT HAND
-
53061B53061-7504 BELT-SEAT, FRONT, RIGHT HANDBELT-SEAT, FRONT, RIGHT HAND
-
5306653066-7502-MB SEAT-ASSY, FRONT, LWR, S. M. BROWNSEAT-ASSY, FRONT, LWR, S. M. BROWN
-
53066A53066-7503-MB SEAT-ASSY, FRONT, BACK, S. M. BROWNSEAT-ASSY, FRONT, BACK, S. M. BROWN
-
53066B53066-7507-MB SEAT-ASSY, REAR, BACK, S. M. BROWNSEAT-ASSY, REAR, BACK, S. M. BROWN
-
53066C53066-7508-MB SEAT-ASSY, REAR, LWR, S. M. BROWNSEAT-ASSY, REAR, LWR, S. M. BROWN
-
9201592015-1190 NUT, LOCK, 12MM, BLACKNUT, LOCK, 12MM, BLACK
-
9204392043-7503 PINPIN
-
9214592145-7507 SPRINGSPRING
-
9215092150-1895 BOLT, FLANGED, 12X117BOLT, FLANGED, 12X117
-
9217192171-7509 CLAMPCLAMP
-
9221092210-0005 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
