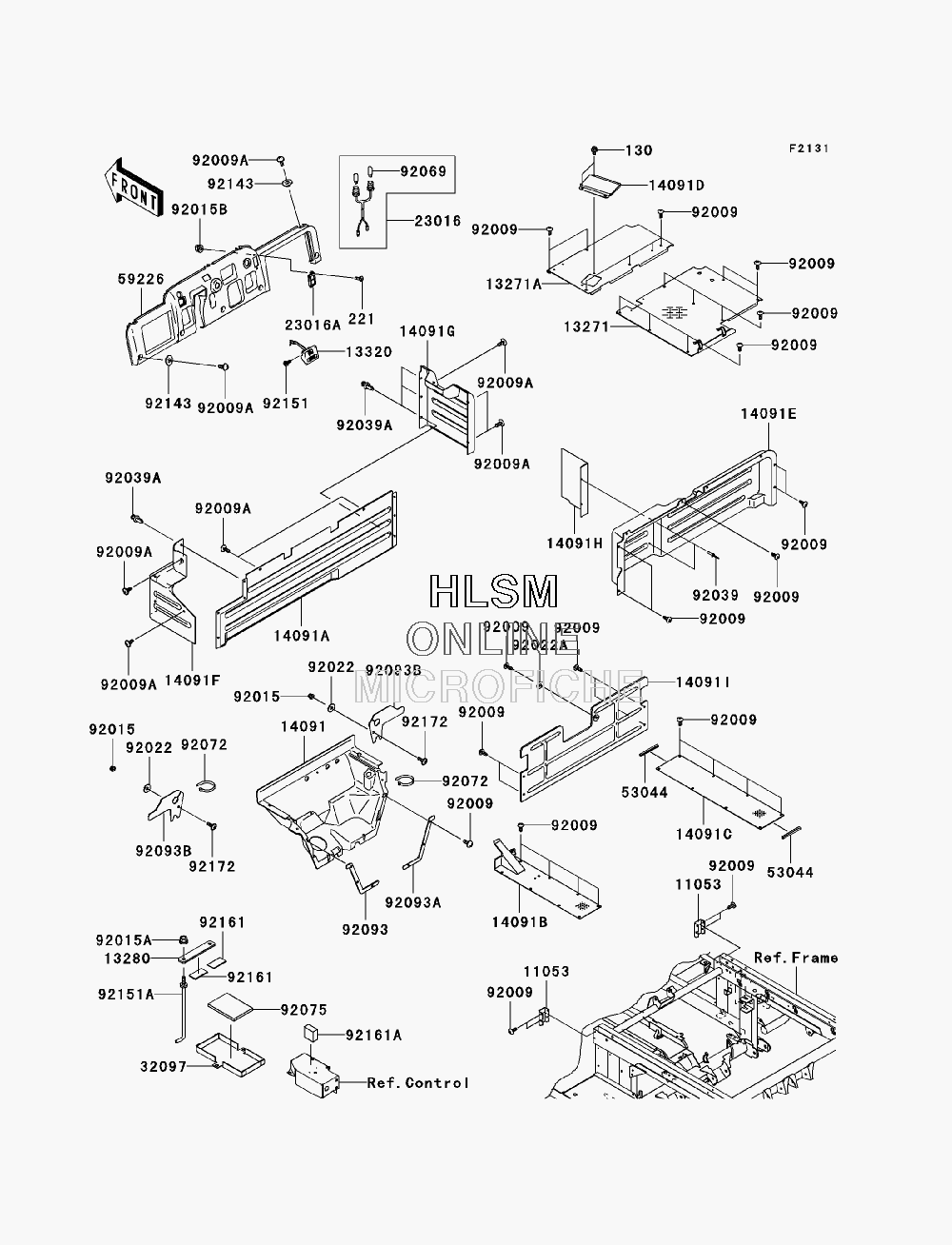

FRAME FITTINGS для Kawasaki MULE 3010 Trans4x4 (KAF620J6F) - 2006 года выпуска
-
№АртикулНазвание
-
1105311053-7539 BRACKET, PUMP BREEZER COVERBRACKET, PUMP BREEZER COVER
-
1327113271-7573 PLATE, FLOOR, RIGHT HANDPLATE, FLOOR, RIGHT HAND
-
13271A13271-7576 PLATE, FLOOR, RIGHT HANDPLATE, FLOOR, RIGHT HAND
-
1328013280-7505 HOLDER, BATTERYHOLDER, BATTERY
-
1332013320-1016 LEVER-ASSYLEVER-ASSY
-
1409114091-1378 COVER, FLOORCOVER, FLOOR
-
14091A14091-7531 COVER, FRONT SEAT, CNTCOVER, FRONT SEAT, CNT
-
14091B14091-7534 COVER, FLOOR, CNT, FRONTCOVER, FLOOR, CNT, FRONT
-
14091C14091-7535 COVER, FLOOR, CNT, REARCOVER, FLOOR, CNT, REAR
-
14091D14091-7536 COVERCOVER
-
14091E14091-7540 COVER, FRONT SEAT, REAR, LWRCOVER, FRONT SEAT, REAR, LWR
-
14091F14091-7541 COVER, FRONT SEAT, LEFT HANDCOVER, FRONT SEAT, LEFT HAND
-
14091G14091-7542 COVER, FRONT SEAT, RIGHT HANDCOVER, FRONT SEAT, RIGHT HAND
-
14091H14091-7543 COVER, FUEL TANKCOVER, FUEL TANK
-
14091I14091-7552 COVER, REAR SEAT, LWRCOVER, REAR SEAT, LWR
-
2301623016-1188 LAMP-ASSY, INDICATORLAMP-ASSY, INDICATOR
-
23016A23016-1189 LAMP-ASSYLAMP-ASSY
-
3209732097-7501 CASE-BATTERYCASE-BATTERY
-
5304453044-7502 TRIM, L=111TRIM, L=111
-
5922659226-1060-284 PANEL-CONTROL, GRAYPANEL-CONTROL, GRAY
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1233 NUT, FLANGED, 6MM, BLACKNUT, FLANGED, 6MM, BLACK
-
92015A92015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015B92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1346 WASHER, 6.5X20X1.6, BLACKWASHER, 6.5X20X1.6, BLACK
-
92022A92022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9203992039-1150 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
9207292072-1197 BAND, L=365BAND, L=365
-
9207592075-1076 DAMPERDAMPER
-
9209392093-1293 SEAL, FRONT FENDER, LEFT HANDSEAL, FRONT FENDER, LEFT HAND
-
92093A92093-1294 SEAL, FRONT FENDER, RIGHT HANDSEAL, FRONT FENDER, RIGHT HAND
-
92093B92093-1295 SEAL, LOWER COVERSEAL, LOWER COVER
-
9214392143-1087 COLLARCOLLAR
-
9215192151-1305 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
92151A92151-1897 BOLT, BATTERYBOLT, BATTERY
-
130130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
221221AB0616 SCREW-CSK-CROSS, 6X16SCREW-CSK-CROSS, 6X16
-
9216192161-0032 DAMPERDAMPER
-
92161A92161-7515 DAMPERDAMPER
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
