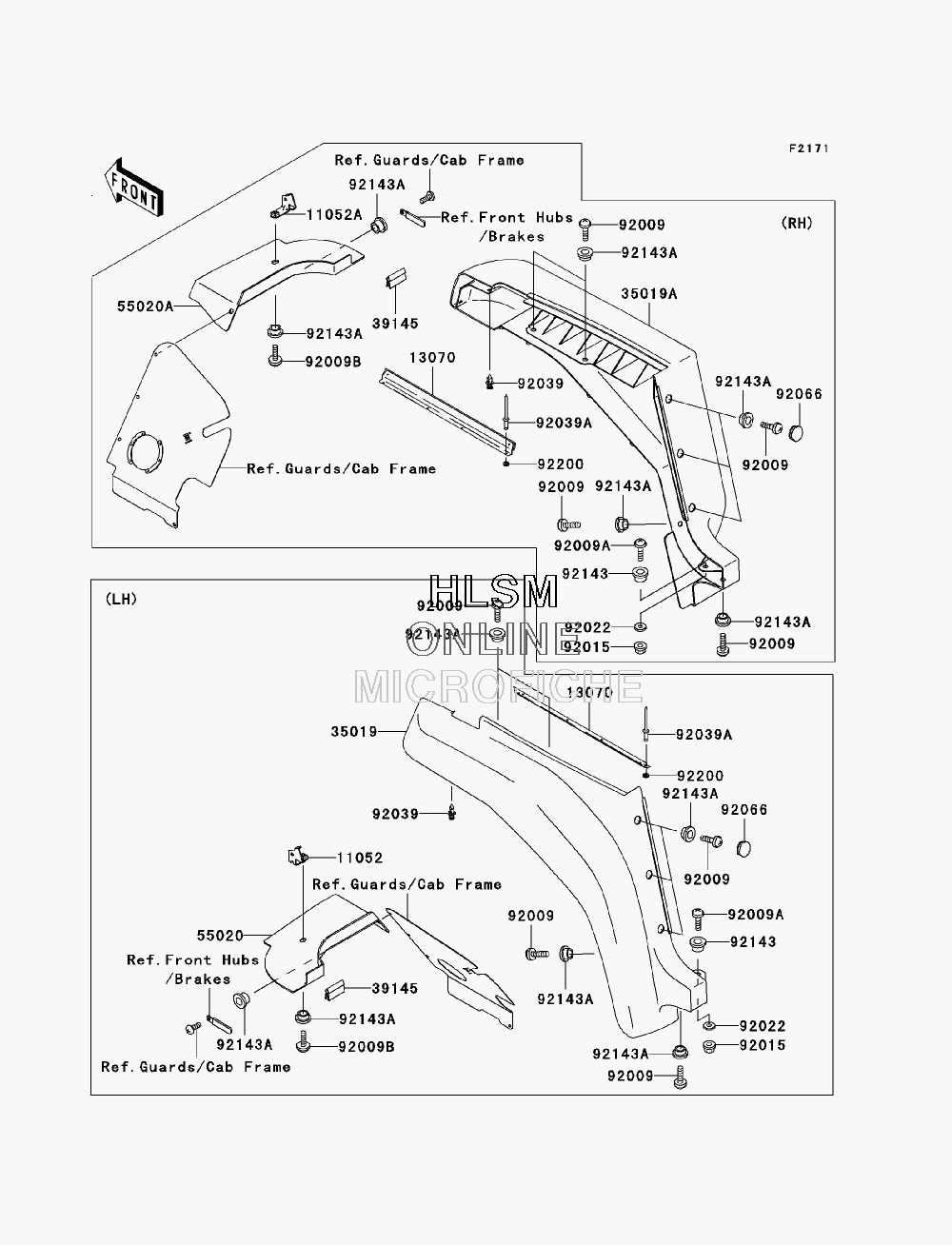

FENDER - FRONT для Kawasaki MULE 3000 (KAF620G7F) - 2007 года выпуска
-
№АртикулНазвание
-
1105211052-1446 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
11052A11052-1447 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1307013070-1403 GUIDE, FRONT FLAPGUIDE, FRONT FLAP
-
3501935019-7508-6Z FLAP, FRONT, LEFT HAND, F. BLACKFLAP, FRONT, LEFT HAND, F. BLACK
-
35019A35019-7509-6Z FLAP, FRONT, RIGHT HAND, F. BLACKFLAP, FRONT, RIGHT HAND, F. BLACK
-
3914539145-1136 TRIM-SEAL, L=45TRIM-SEAL, L=45
-
5502055020-1775 GUARD, LWR, LEFT HANDGUARD, LWR, LEFT HAND
-
55020A55020-1776 GUARD, LWR, RIGHT HANDGUARD, LWR, RIGHT HAND
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1346 WASHER, 6.5X20X1.6, BLACKWASHER, 6.5X20X1.6, BLACK
-
9203992039-1229 RIVETRIVET
-
92039A92039-1244 RIVETRIVET
-
9206692066-1231 PLUGPLUG
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9220092200-7505 WASHER, 3.7X6X1WASHER, 3.7X6X1
