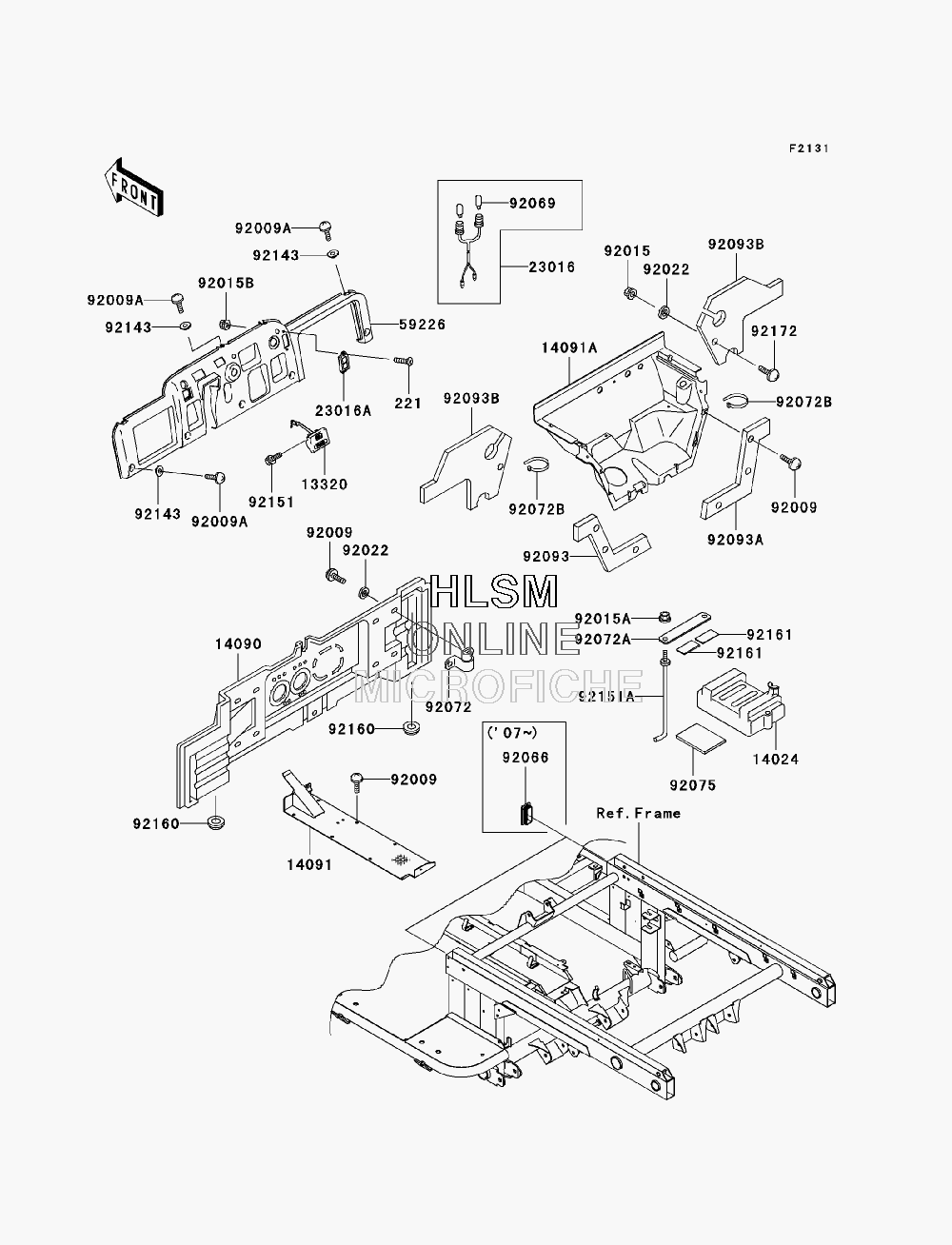

FRAME FITTINGS для Kawasaki MULE 3010 4X4 HARDWOODS GREEN HD (KAF620H7F) - 2007 года выпуска
-
№АртикулНазвание
-
221221AB0616 SCREW-CSK-CROS, 6X16SCREW-CSK-CROS, 6X16
-
1332013320-1016 LEVER-ASSYLEVER-ASSY
-
1402414024-1792 COVER, BATTERYCOVER, BATTERY
-
1409014090-1247 COVER, SEAT UNDERCOVER, SEAT UNDER
-
1409114091-0118 COVER, FLOOR, CNTCOVER, FLOOR, CNT
-
14091A14091-1378 COVER, FLOORCOVER, FLOOR
-
2301623016-1188 LAMP-ASSY, INDICATORLAMP-ASSY, INDICATOR
-
23016A23016-1189 LAMP-ASSYLAMP-ASSY
-
5922659226-7502-396 PANEL-CONTROL, C. H. GREENPANEL-CONTROL, C. H. GREEN
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1233 NUT, FLANGED, 6MM, BLACKNUT, FLANGED, 6MM, BLACK
-
92015A92015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015B92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1346 WASHER, 6.5X20X1.6, BLACKWASHER, 6.5X20X1.6, BLACK
-
9206692066-7505 PLUGPLUG
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
9207292072-1252 BANDBAND
-
92072A92072-1399 BAND, L=159BAND, L=159
-
92072B92072-3872 BAND, L=368.3BAND, L=368.3
-
9207592075-1076 DAMPERDAMPER
-
9209392093-1293 SEAL, FRONT FENDER, LEFT HANDSEAL, FRONT FENDER, LEFT HAND
-
92093A92093-1294 SEAL, FRONT FENDER, RIGHT HANDSEAL, FRONT FENDER, RIGHT HAND
-
92093B92093-1295 SEAL, LOWER COVERSEAL, LOWER COVER
-
9214392143-1087 COLLARCOLLAR
-
9215192151-1305 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
92151A92151-1897 BOLT, BATTERYBOLT, BATTERY
-
9216092160-1148 DAMPERDAMPER
-
9216192161-0032 DAMPERDAMPER
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
