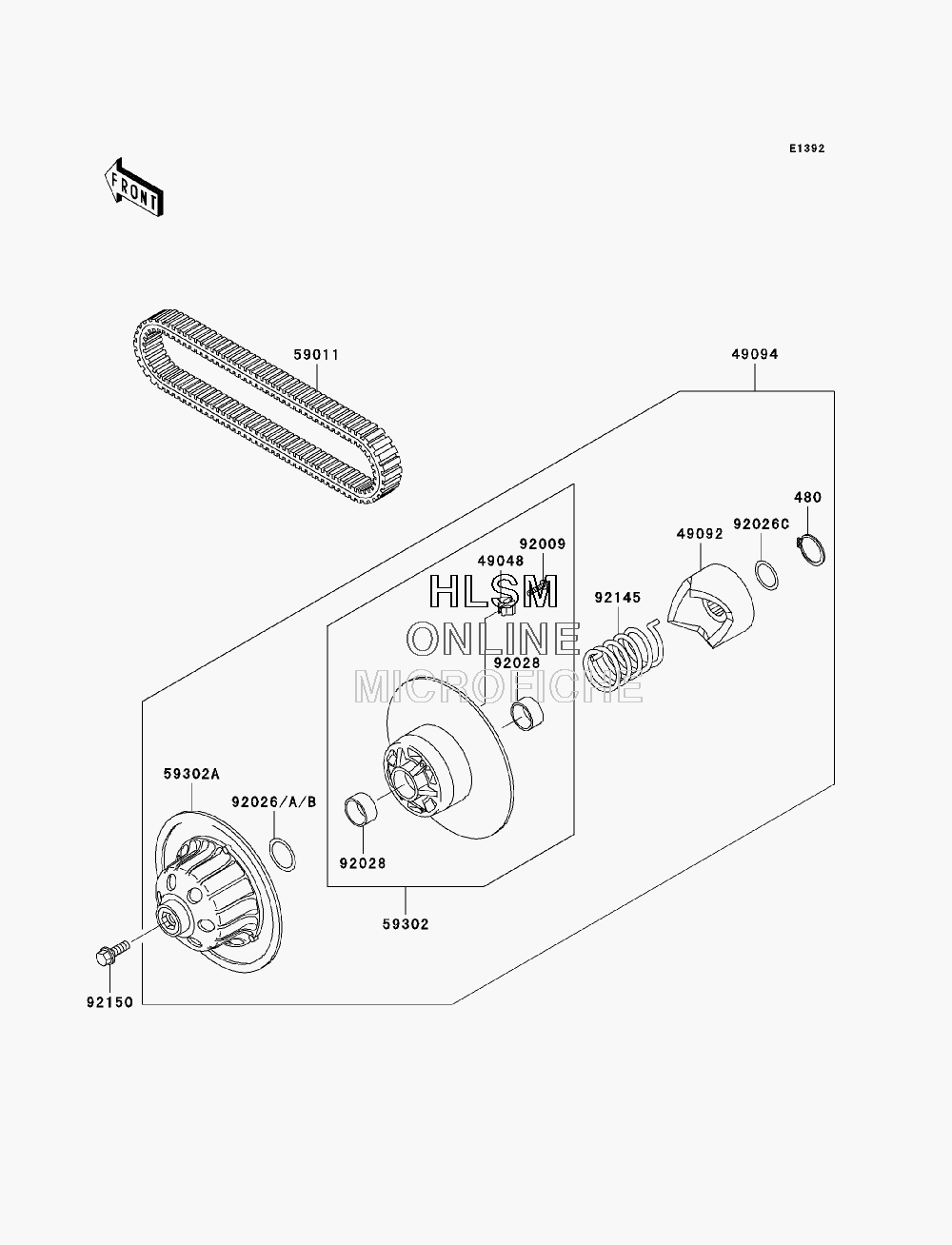

DRIVEN CONVERTER W/ DRIVE BELT для Kawasaki MULE 3010 4X4 (KAF620E7F) - 2007 года выпуска
-
№АртикулНазвание
-
480480J3400 CIRCLIPCIRCLIP
-
4904849048-1060 SHOESHOE
-
4909249092-1068 RAMPRAMP
-
4909449094-1084 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-1077 BELT, CONVERTERBELT, CONVERTER
-
5930259302-1072 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
59302A59302-1092 SHEAVE-COMPSHEAVE-COMP
-
9200992009-1849 SCREW, SHOESCREW, SHOE
-
9202692026-1507 SPACER, 39X50X0.50SPACER, 39X50X0.50
-
92026A92026-1508 SPACER, 39X50X0.60SPACER, 39X50X0.60
-
92026B92026-1510 SPACER, 39X50X0.80SPACER, 39X50X0.80
-
92026C92026-1521 SPACER, 34X44X0.80SPACER, 34X44X0.80
-
9202892028-1864 BUSHINGBUSHING
-
9214592145-1404 SPRINGSPRING
-
9215092150-1009 BOLT, 12X35BOLT, 12X35
