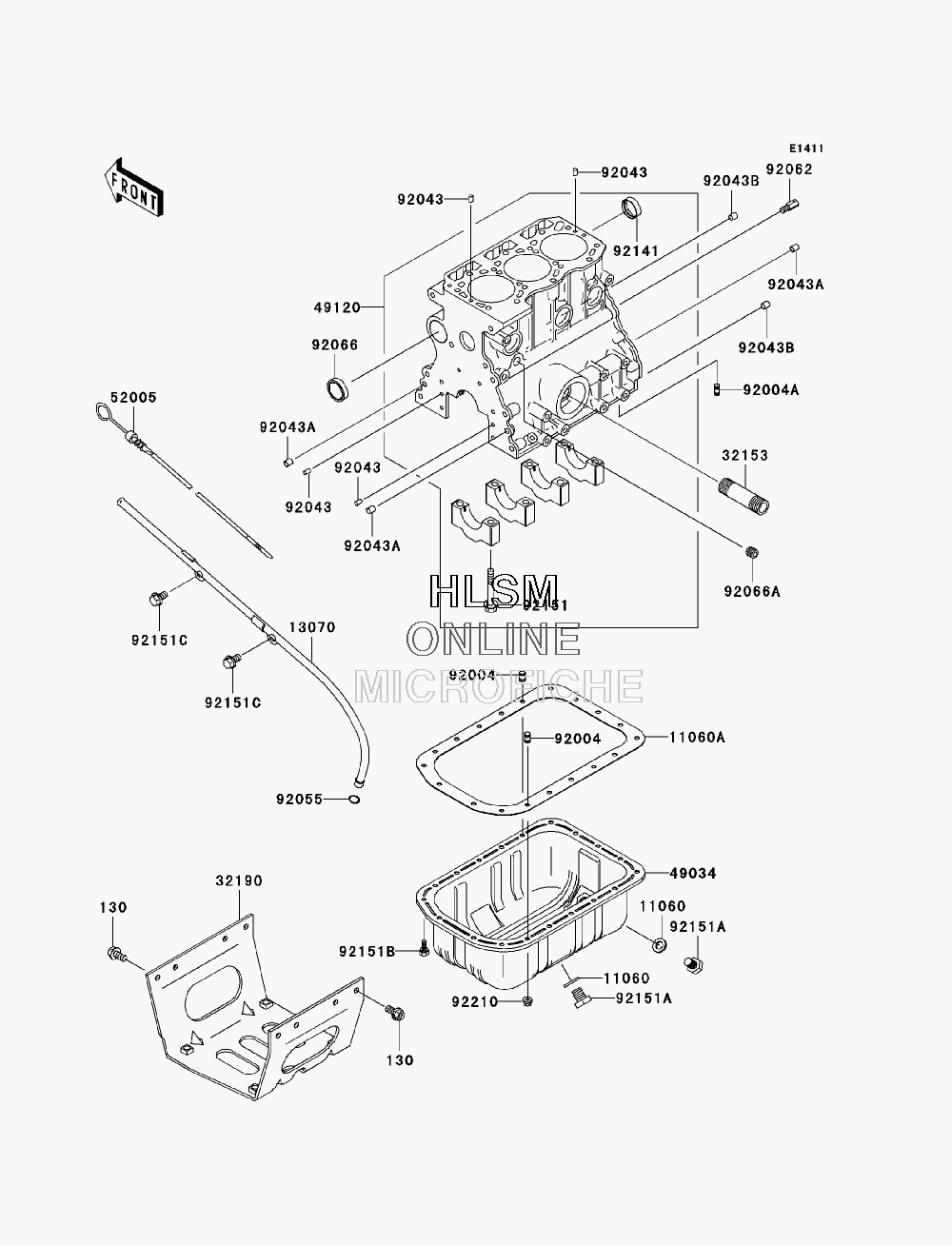

CRANKCASE для Kawasaki MULE 3010 DIESEL 4X4 (KAF950B7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130J0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1106011060-1942 GASKET, OIL DRAIN BOLTGASKET, OIL DRAIN BOLT
-
11060A11060-1943 GASKET, OIL PANGASKET, OIL PAN
-
1307013070-1350 GUIDE, GAUGEGUIDE, GAUGE
-
3215332153-1355 PIPE, OIL FILTERPIPE, OIL FILTER
-
3219032190-1187 BRACKET-ENGINEBRACKET-ENGINE
-
4903449034-1135 PAN-OILPAN-OIL
-
4912049120-0008 CRANKCASE-COMPCRANKCASE-COMP
-
5200552005-1139 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200492004-1261 STUD, 6X10STUD, 6X10
-
92004A92004-1262 STUD, 6X14STUD, 6X14
-
9204392043-1609 PIN, 6MMPIN, 6MM
-
92043A92043-1610 PIN, 8MMPIN, 8MM
-
92043B92043-1611 PIN, 8MMPIN, 8MM
-
9205592055-1625 RING-ORING-O
-
9206292062-1088 NOZZLENOZZLE
-
9206692066-1526 PLUGPLUG
-
92066A92066-1527 PLUG, CRANKCASEPLUG, CRANKCASE
-
9214192141-1053 BUSHING, CRANKCASEBUSHING, CRANKCASE
-
9215192151-1655 BOLT, CRANKSHAFTBOLT, CRANKSHAFT
-
92151A92151-1656 BOLT, OIL DRAINBOLT, OIL DRAIN
-
92151B92151-1657 BOLT, 6X12BOLT, 6X12
-
92151C92151-1658 BOLT, 8X14BOLT, 8X14
-
9221092210-1208 NUT, 6MMNUT, 6MM
