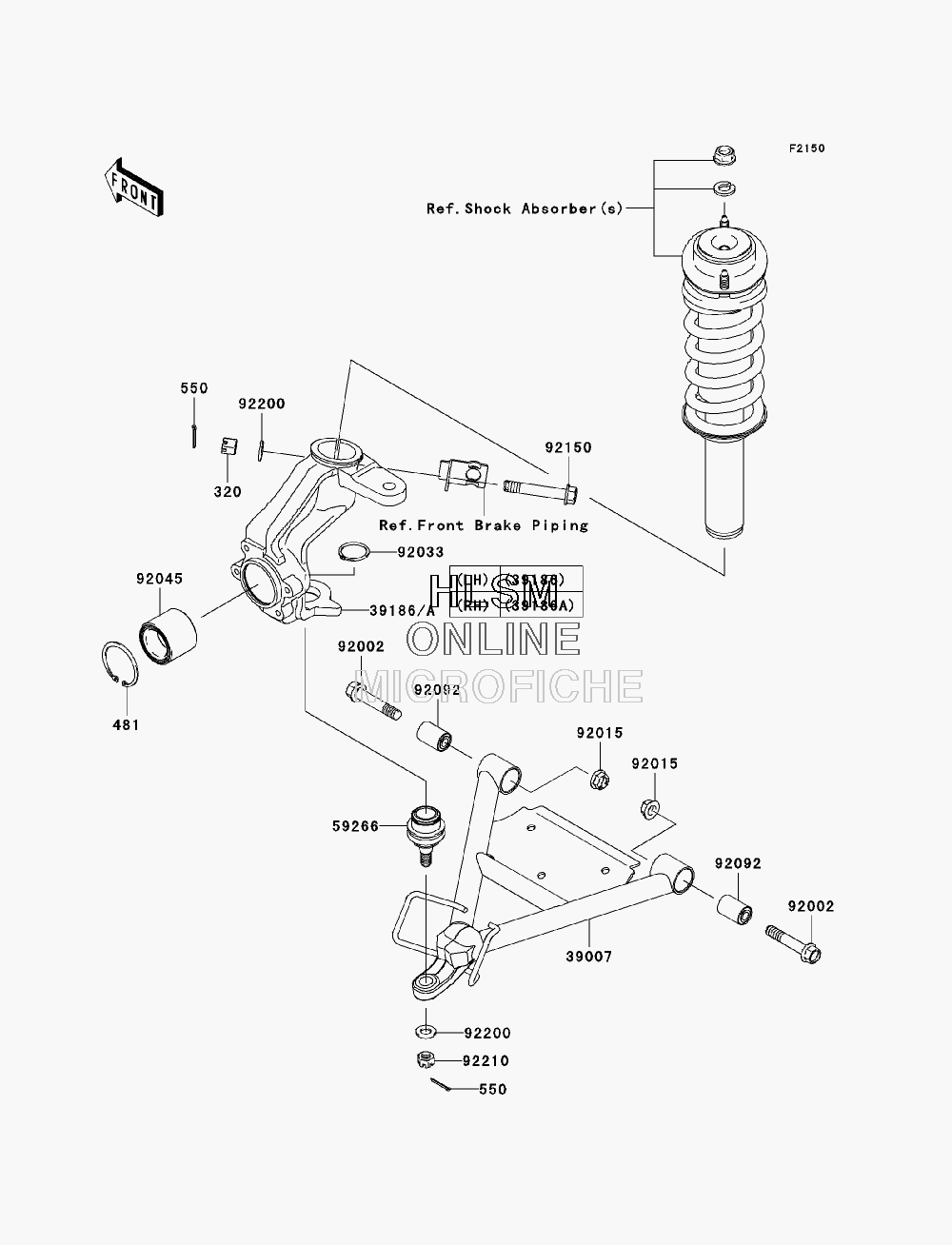

SUSPENSION для Kawasaki MULE 610 4X4 HARDWOODS GREEN HD (KAF400C8F) - 2008 года выпуска
-
№АртикулНазвание
-
320320BA1200 NUT-CASTLENUT-CASTLE
-
481481J5200 CIRCLIPCIRCLIP
-
550550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
3900739007-0029 ARM-SUSPARM-SUSP
-
3918639186-0061 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
39186A39186-0062 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
-
5926659266-1080 JOINT-BALLJOINT-BALL
-
9200292002-1757 BOLT, ROD, 12MMBOLT, ROD, 12MM
-
9201592015-1706 NUT, 12MMNUT, 12MM
-
9203392033-1262 RING-SNAP, C-TYPE, 32MMRING-SNAP, C-TYPE, 32MM
-
9204592045-0102 BEARING-BALL, DAC2552W-7CS31BEARING-BALL, DAC2552W-7CS31
-
9209292092-005 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1356 BOLT, FLANGED, 12X72BOLT, FLANGED, 12X72
-
9220092200-1004 WASHER, 12.3X23X2.3WASHER, 12.3X23X2.3
-
9221092210-0395 NUT, CASTLE, 12MMNUT, CASTLE, 12MM
