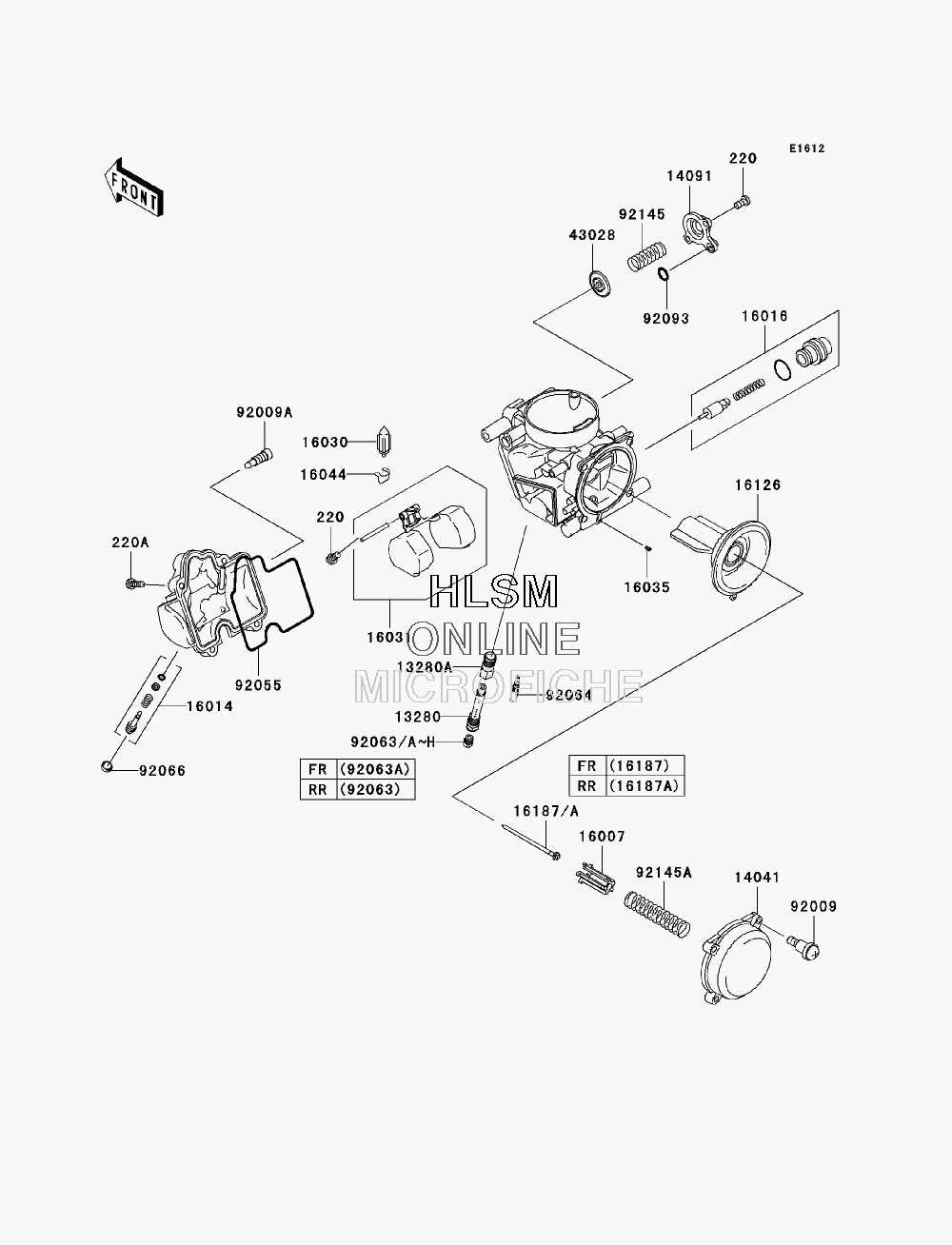

CARBURETOR PARTS для Kawasaki TERYX 750 4X4 LE (KRF750D8F) - 2008 года выпуска
-
№АртикулНазвание
-
220220AA0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
220A220AA0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
-
1328013280-0115 HOLDERHOLDER
-
13280A13280-1096 HOLDER, JETHOLDER, JET
-
1404114041-1091 CAP-CHAMBER, MIXINGCAP-CHAMBER, MIXING
-
1409114091-1246 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1600716007-1117 SEAT-SPRING, VALVESEAT-SPRING, VALVE
-
1601416014-0009 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1117 PLUNGERPLUNGER
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1097 FLOATFLOAT
-
1603516035-1055 JET-AIR, LEAKJET-AIR, LEAK
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-0015 VALVEVALVE
-
1618716187-0281 NEEDLE-JET, N3RL, FRONTNEEDLE-JET, N3RL, FRONT
-
16187A16187-0282 NEEDLE-JET, NFCH, REARNEEDLE-JET, NFCH, REAR
-
4302843028-1085 DIAPHRAGM, AIR CUT VALVEDIAPHRAGM, AIR CUT VALVE
-
9200992009-1549 SCREW, 4X4.4SCREW, 4X4.4
-
92009A92009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
9205592055-1589 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
9206392063-1013 JET-MAIN, #140, REARJET-MAIN, #140, REAR
-
92063A92063-1014 JET-MAIN, #135, FRONTJET-MAIN, #135, FRONT
-
92063B92063-1015 JET-MAIN, #138 (OPTION)JET-MAIN, #138 (OPTION)
-
92063C92063-1016 JET-MAIN, #142 (OPTION)JET-MAIN, #142 (OPTION)
-
92063D92063-1017 JET-MAIN, #145 (OPTION)JET-MAIN, #145 (OPTION)
-
92063E92063-1069 JET-MAIN, #125 (OPTION)JET-MAIN, #125 (OPTION)
-
92063F92063-1074 JET-MAIN, #128 (OPTION)JET-MAIN, #128 (OPTION)
-
92063G92063-1075 JET-MAIN, #130 (OPTION)JET-MAIN, #130 (OPTION)
-
92063H92063-1076 JET-MAIN, #132 (OPTION)JET-MAIN, #132 (OPTION)
-
9206492064-0011 JET-PILOT, #38JET-PILOT, #38
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9209392093-1046 SEAL, "U"RINGSEAL, "U"RING
-
9214592145-0097 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
92145A92145-1064 SPRING, VACUUM VALVESPRING, VACUUM VALVE
