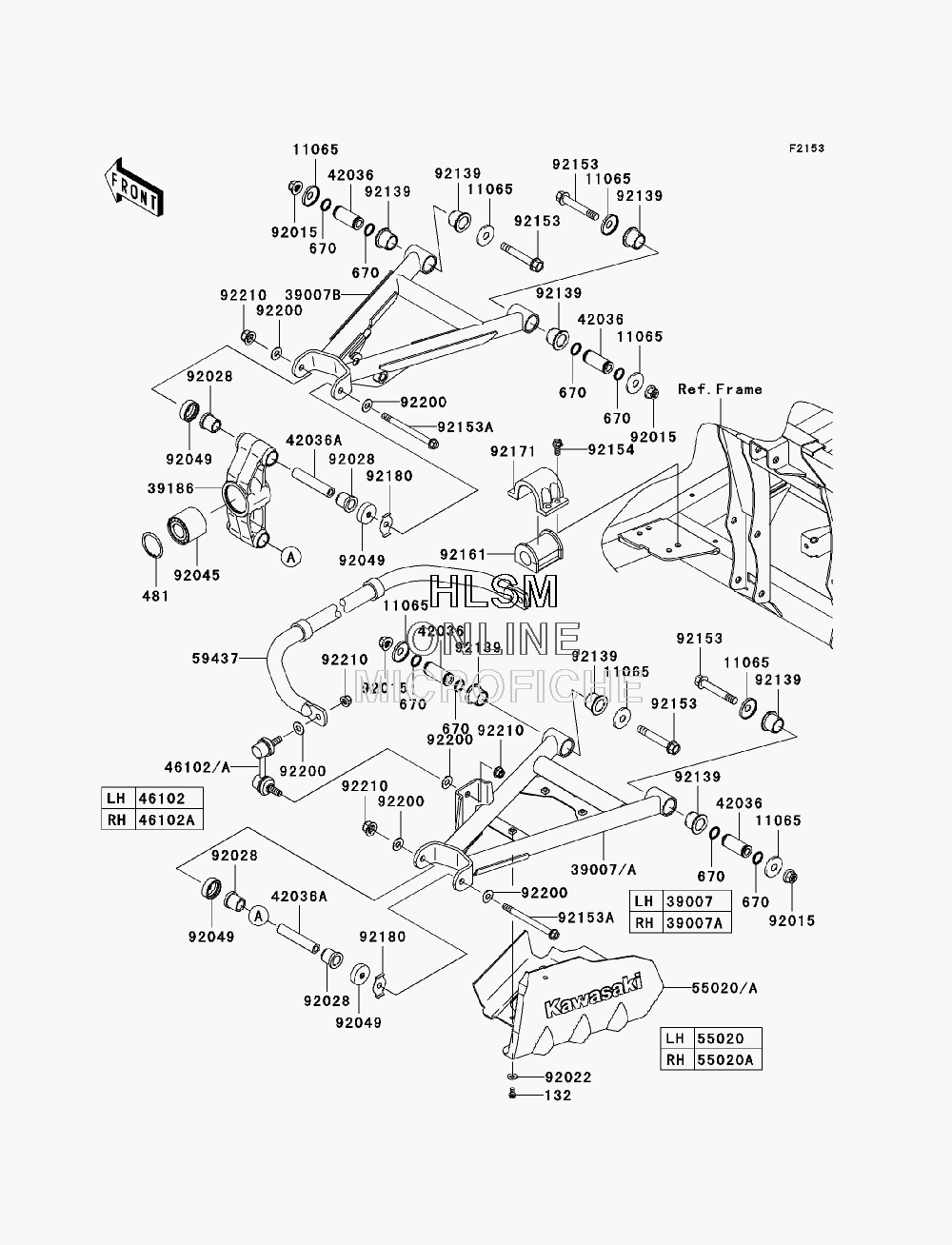

SUSPENSION - REAR для Kawasaki TERYX 750 4X4 LE (KRF750D8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132BB0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
481481J5200 CIRCLIPCIRCLIP
-
670670B2018 O RING, 18MMO RING, 18MM
-
1106511065-0253 CAPCAP
-
3900739007-0128 ARM-SUSP, REAR, LWR, LEFT HANDARM-SUSP, REAR, LWR, LEFT HAND
-
39007A39007-0129 ARM-SUSP, REAR, LWR, RIGHT HANDARM-SUSP, REAR, LWR, RIGHT HAND
-
39007B39007-0143 ARM-SUSP, REAR, UPP, LEFT HAND & RIGHT HANDARM-SUSP, REAR, UPP, LEFT HAND & RIGHT HAND
-
3918639186-0071 KNUCKLE, REAR, LEFT HAND & RIGHT HANDKNUCKLE, REAR, LEFT HAND & RIGHT HAND
-
4203642036-0062 SLEEVESLEEVE
-
42036A42036-1190 SLEEVE, 10X17X85.6SLEEVE, 10X17X85.6
-
4610246102-0100 ROD, STABILIZER, LEFT HANDROD, STABILIZER, LEFT HAND
-
46102A46102-0101 ROD, STABILIZER, RIGHT HANDROD, STABILIZER, RIGHT HAND
-
5502055020-0310 GUARD, REAR, LEFT HANDGUARD, REAR, LEFT HAND
-
55020A55020-0311 GUARD, REAR, RIGHT HANDGUARD, REAR, RIGHT HAND
-
5943759437-0006 STABILIZERSTABILIZER
-
9201592015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9202292022-1344 WASHER, 7X16X1.2WASHER, 7X16X1.2
-
9202892028-1466 BUSHINGBUSHING
-
9204592045-0102 BEARING-BALL, DAC2552W-7CS31BEARING-BALL, DAC2552W-7CS31
-
9204992049-1198 SEAL-OIL, KNUCKLESEAL-OIL, KNUCKLE
-
9213992139-0231 BUSHINGBUSHING
-
9215392153-1733 BOLT, FLANGED, 12X76.5BOLT, FLANGED, 12X76.5
-
92153A92153-1966 BOLT, FLANGED, 10X117BOLT, FLANGED, 10X117
-
9215492154-0100 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
9216192161-0539 DAMPERDAMPER
-
9217192171-1695 CLAMPCLAMP
-
9218092180-0292 SHIMSHIM
-
9220092200-2009 WASHER, 10.3X23X1.6WASHER, 10.3X23X1.6
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
