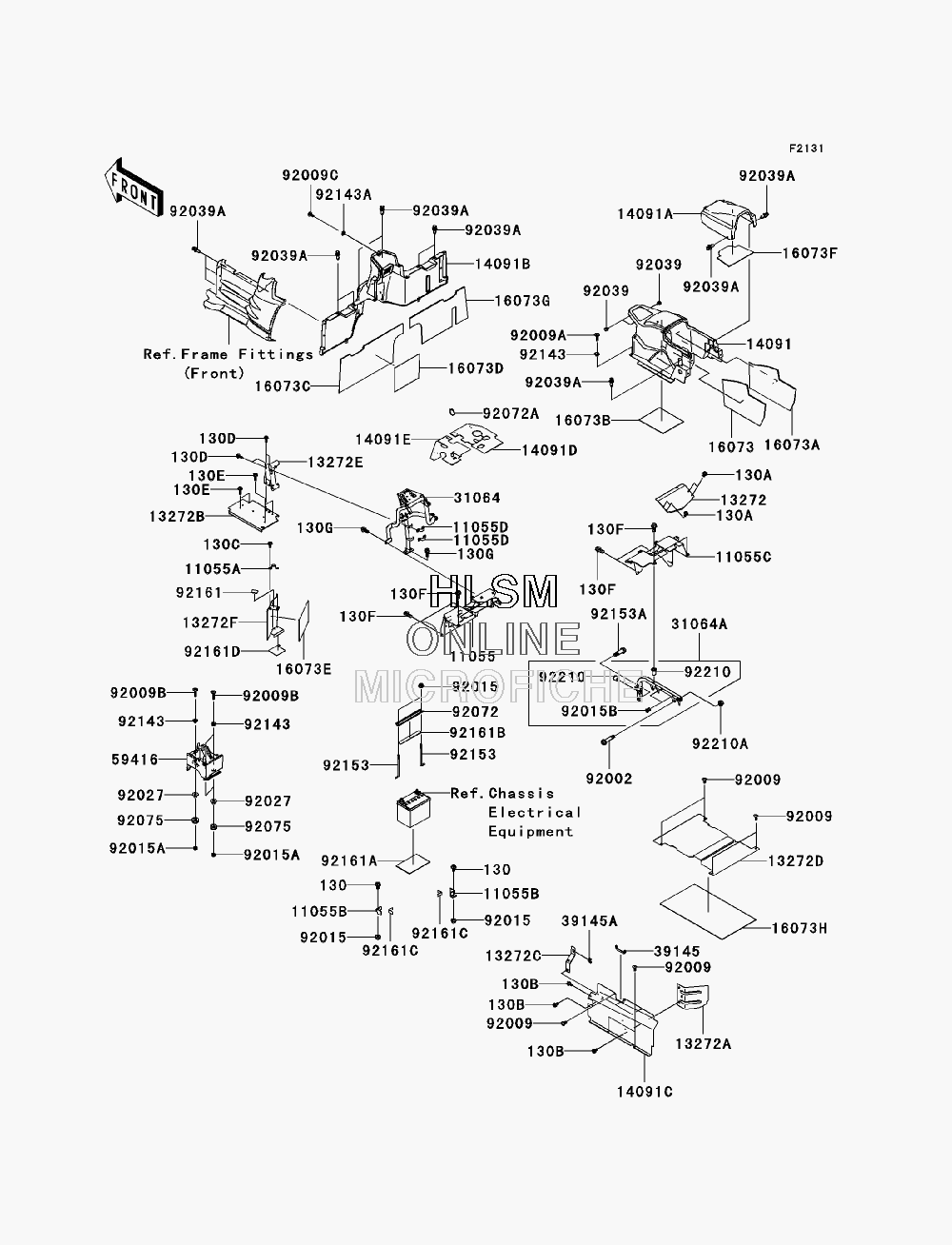

FRAME FITTINGS (REAR) для Kawasaki TERYX 750 4X4 NRA OUTDOORS (KRF750F8F) - 2008 года выпуска
-
№АртикулНазвание
-
1105511055-0384 BRACKETBRACKET
-
11055A11055-0419 BRACKETBRACKET
-
11055B11055-0433 BRACKETBRACKET
-
11055C11055-0518 BRACKET, SEAT LOCK PLATEBRACKET, SEAT LOCK PLATE
-
11055D11055-0896 BRACKETBRACKET
-
1327213272-0276 PLATEPLATE
-
13272A13272-0318 PLATEPLATE
-
13272B13272-0336 PLATE, TUNNEL PLATEPLATE, TUNNEL PLATE
-
13272C13272-0351 PLATEPLATE
-
13272D13272-0390 PLATE, FRONT FENDERPLATE, FRONT FENDER
-
13272E13272-0434 PLATEPLATE
-
13272F13272-0448 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
1409114091-0692-6Z COVER, CONSOLE CENTER, F. BLACK (FOR 16P)COVER, CONSOLE CENTER, F. BLACK (FOR 16P)
-
14091A14091-0975 COVER, CONSOLE CENTERCOVER, CONSOLE CENTER
-
14091B14091-0982-6Z COVER, SEAT, F. BLACK (FOR 16P)COVER, SEAT, F. BLACK (FOR 16P)
-
14091C14091-0987 COVERCOVER
-
14091D14091-1643 COVERCOVER
-
14091E14091-1644 COVERCOVER
-
1607316073-0042 INSULATORINSULATOR
-
16073A16073-0043 INSULATORINSULATOR
-
16073B16073-0044 INSULATORINSULATOR
-
16073C16073-0050 INSULATORINSULATOR
-
16073D16073-0060 INSULATORINSULATOR
-
16073E16073-0062 INSULATORINSULATOR
-
16073F16073-0066 INSULATORINSULATOR
-
16073G16073-0070 INSULATORINSULATOR
-
16073H16073-0075 INSULATORINSULATOR
-
3106431064-0136 PIPE-COMPPIPE-COMP
-
31064A31064-0145 PIPE-COMPPIPE-COMP
-
3914539145-0034 TRIM-SEAL, L=110TRIM-SEAL, L=110
-
39145A39145-0035 TRIM-SEAL, L=53TRIM-SEAL, L=53
-
5941659416-0017 CASE-ELECTRICCASE-ELECTRIC
-
9200292002-1740 BOLT, FLANGED, 10X46BOLT, FLANGED, 10X46
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
-
92009B92009-1342 SCREW, 6X28, WHITESCREW, 6X28, WHITE
-
92009C92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015B92015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
130130BA0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
130A130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130B130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130C130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130D130BB0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130E130BB0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130F130BB1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130G130CA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
9202792027-194 COLLAR, L=11.1COLLAR, L=11.1
-
9203992039-0046 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
9207292072-0097 BAND, BATTERYBAND, BATTERY
-
92072A92072-3509 BAND, L=292.1BAND, L=292.1
-
9207592075-277 DAMPERDAMPER
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9215392153-1737 BOLTBOLT
-
92153A92153-1742 BOLT, FLANGED, 10X38BOLT, FLANGED, 10X38
-
9216192161-0273 DAMPERDAMPER
-
92161A92161-0578 DAMPERDAMPER
-
92161B92161-0579 DAMPERDAMPER
-
92161C92161-0580 DAMPERDAMPER
-
92161D92161-0669 DAMPERDAMPER
-
9221092210-0352 NUT, POP, 10MMNUT, POP, 10MM
-
92210A92210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
