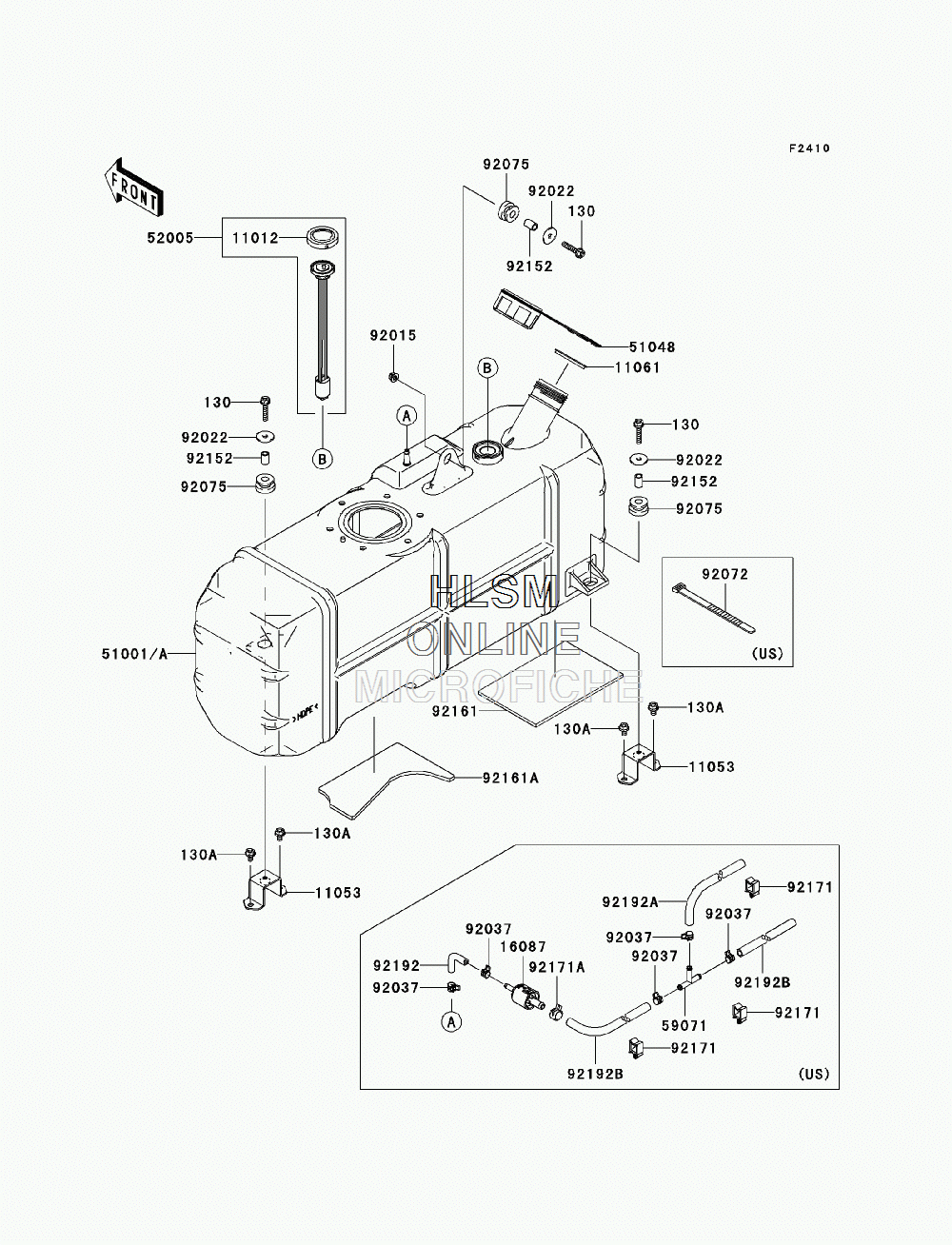

FUEL TANK для Kawasaki MULE 4000 (KAF620P9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BA0630 BOLT-FLANGED,6X30BOLT-FLANGED,6X30
-
130A130BB0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
1101211012-1627 CAP,FUEL GAUGECAP,FUEL GAUGE
-
1105311053-7512 BRACKETBRACKET
-
1106111061-0395 GASKET,FUEL TANK CAPGASKET,FUEL TANK CAP
-
1608716087-0002 VALVE-CHECK (EXCEPT CALIF.)VALVE-CHECK (EXCEPT CALIF.)
-
5100151001-0292 TANK-COMP-FUEL (EXCEPT CALIF.)TANK-COMP-FUEL (EXCEPT CALIF.)
-
51001A51001-0293 TANK-COMP-FUEL (CALIF. ONLY)TANK-COMP-FUEL (CALIF. ONLY)
-
5104851048-0026 CAP-ASSY-TANK,FUELCAP-ASSY-TANK,FUEL
-
5200552005-7501 GAUGE,FUELGAUGE,FUEL
-
5907159071-3705 JOINT (EXCEPT CALIF.)JOINT (EXCEPT CALIF.)
-
9201592015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9202292022-1690 WASHER,6.5X24X2WASHER,6.5X24X2
-
9203792037-1461 CLAMP,TUBE (EXCEPT CALIF.)CLAMP,TUBE (EXCEPT CALIF.)
-
9207292072-030 BAND,L=123 (EXCEPT CALIF.)BAND,L=123 (EXCEPT CALIF.)
-
9207592075-1787 DAMPERDAMPER
-
9215292152-7511 COLLAR,7.02X10.32X15.3COLLAR,7.02X10.32X15.3
-
9216192161-7508 DAMPER,92X35X4.76DAMPER,92X35X4.76
-
92161A92161-7513 DAMPER,92X19X4.76DAMPER,92X19X4.76
-
9217192171-0290 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
92171A92171-0515 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
9219292192-0067 TUBE,FUEL TANK-CHECK VALVE (EXCEPT CALIF.)TUBE,FUEL TANK-CHECK VALVE (EXCEPT CALIF.)
-
92192A92192-7512 TUBE,7X11X370 (EXCEPT CALIF.)TUBE,7X11X370 (EXCEPT CALIF.)
-
92192B92192-7513 TUBE,7X11X225 (EXCEPT CALIF.)TUBE,7X11X225 (EXCEPT CALIF.)
