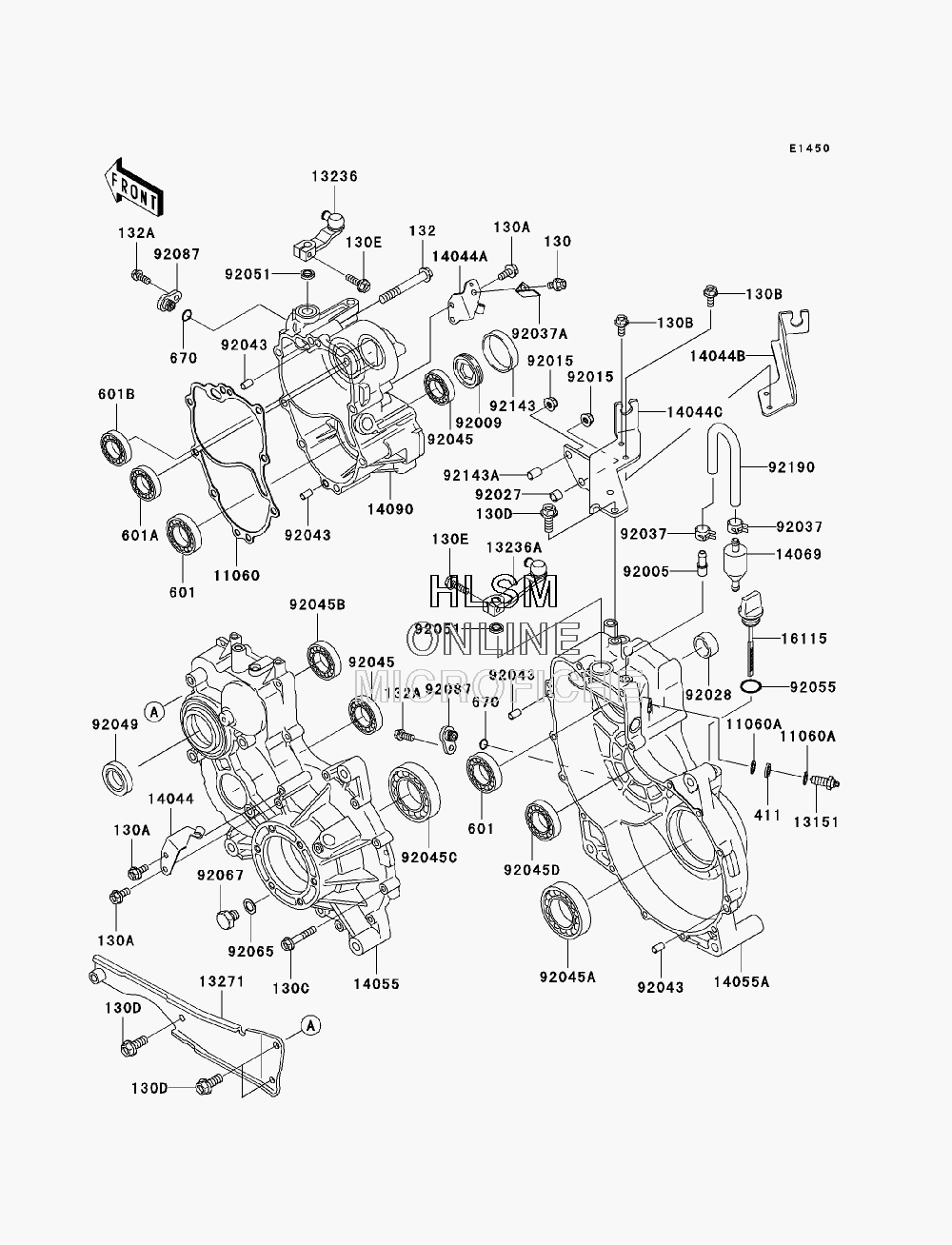

GEAR BOX для Kawasaki MULE 4010 4X4 HARDWOODS GREEN HD (KAF620N9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130AA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130AA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130B130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
1106011060-1310 GASKET, GEAR CASE COVERGASKET, GEAR CASE COVER
-
11060A11060-1966 GASKETGASKET
-
1315113151-1093 SWITCH-COMPSWITCH-COMP
-
1323613236-1363 LEVER-COMPLEVER-COMP
-
13236A13236-1372 LEVER-COMPLEVER-COMP
-
1327113271-1604 PLATEPLATE
-
1404414044-0003 HOLDER-CABLEHOLDER-CABLE
-
14044A14044-0004 HOLDER-CABLEHOLDER-CABLE
-
14044B14044-1075 HOLDER-CABLE, HI/LOWHOLDER-CABLE, HI/LOW
-
14044C14044-1098 HOLDER-CABLEHOLDER-CABLE
-
1405514055-0035 CASE-GEAR, LEFT HANDCASE-GEAR, LEFT HAND
-
14055A14055-1110 CASE-GEAR, RIGHT HANDCASE-GEAR, RIGHT HAND
-
1406914069-1051 BREATHERBREATHER
-
1409014090-1238 COVER, GEAR CASE, HI/LOWCOVER, GEAR CASE, HI/LOW
-
1611516115-1060 CAP-OIL FILLERCAP-OIL FILLER
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9200992009-1290 SCREW, 55MMSCREW, 55MM
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9202792027-1568 COLLAR, 8.8X12X9COLLAR, 8.8X12X9
-
9202892028-132 BUSHING, 23X30X13BUSHING, 23X30X13
-
9203792037-1505 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1680 CLAMPCLAMP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1142 BEARING-BALL, TMB304CCMBEARING-BALL, TMB304CCM
-
92045A92045-1162 BEARING-BALL, 6010CMBEARING-BALL, 6010CM
-
92045B92045-1207 BEARING-BALL, 62/28BEARING-BALL, 62/28
-
92045C92045-1213 BEARING-BALL, 6210CMBEARING-BALL, 6210CM
-
92045D92045-1285 BEARING-BALL, TMB205JR2BEARING-BALL, TMB205JR2
-
9204992049-1297 SEAL-OIL, TC28X47X7SEAL-OIL, TC28X47X7
-
9205192051-005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
9205592055-2185 RING-O, 20X3RING-O, 20X3
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
-
9208792087-1058 BUSHING-METER GEARBUSHING-METER GEAR
-
9214392143-1120 COLLAR, 66X70X11COLLAR, 66X70X11
-
92143A92143-1642 COLLAR, 8.5X15X9COLLAR, 8.5X15X9
-
9219092190-3807 TUBETUBE
-
130C130BA0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
130D130BA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130E130CA0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
132132BA0860 BOLT-FLANGED-SMALL, 8X60BOLT-FLANGED-SMALL, 8X60
-
132A132BB0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
411411AA1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
601601B6007 BEARING-BALL, #6007C3BEARING-BALL, #6007C3
-
601A601B6303 BEARING-BALL, #6303C3BEARING-BALL, #6303C3
-
601B601B6303U BEARING-BALLBEARING-BALL
-
670670D1510 O RING, 10MMO RING, 10MM
