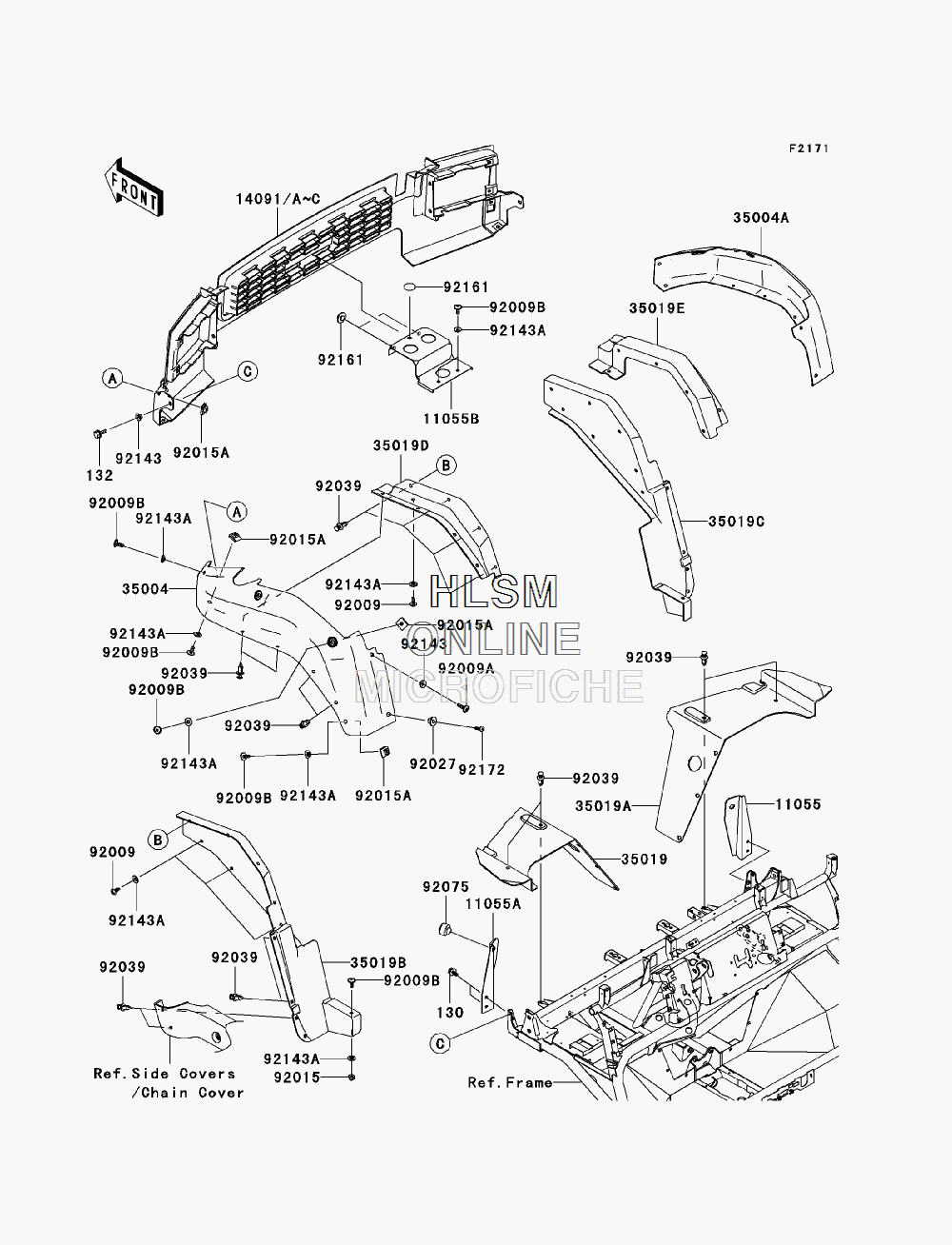

FENDER - FRONT для Kawasaki MULE 4010 4X4 (KAF620M9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BB0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
132132BB0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
1105511055-0917 BRACKETBRACKET
-
11055A11055-0918 BRACKETBRACKET
-
11055B11055-0954 BRACKETBRACKET
-
1409114091-0818-16L COVER, FRONT GRILL,D.R.RED (FOR 16M)COVER, FRONT GRILL,D.R.RED (FOR 16M)
-
14091B14091-0818-286 COVER, FRONT GRILL,W.GREEN (FOR 398)COVER, FRONT GRILL,W.GREEN (FOR 398)
-
3500435004-0123-6Z FENDER-FRONT,SIDE, LEFT HAND,F.BLACKFENDER-FRONT,SIDE, LEFT HAND,F.BLACK
-
35004A35004-0124-6Z FENDER-FRONT,SIDE, RIGHT HAND,F.BLACKFENDER-FRONT,SIDE, RIGHT HAND,F.BLACK
-
3501935019-0062 FLAP, FRONT, LEFT HANDFLAP, FRONT, LEFT HAND
-
35019A35019-0063 FLAP, FRONT, RIGHT HANDFLAP, FRONT, RIGHT HAND
-
35019B35019-0064 FLAP,SIDE, REAR, LEFT HANDFLAP,SIDE, REAR, LEFT HAND
-
35019C35019-0065 FLAP,SIDE, REAR, RIGHT HANDFLAP,SIDE, REAR, RIGHT HAND
-
35019D35019-0068 FLAP,SIDE,MIDDLE, LEFT HANDFLAP,SIDE,MIDDLE, LEFT HAND
-
35019E35019-0069 FLAP,SIDE,MIDDLE, RIGHT HANDFLAP,SIDE,MIDDLE, RIGHT HAND
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
92009A92009-1256 SCREW,6X22,BLACKSCREW,6X22,BLACK
-
92009B92009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92015A92015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9202792027-1767 COLLARCOLLAR
-
9203992039-1229 RIVETRIVET
-
9207592075-015 DAMPERDAMPER
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9216192161-1200 DAMPER,RUBBERDAMPER,RUBBER
-
9217292172-1072 SCREWSCREW
