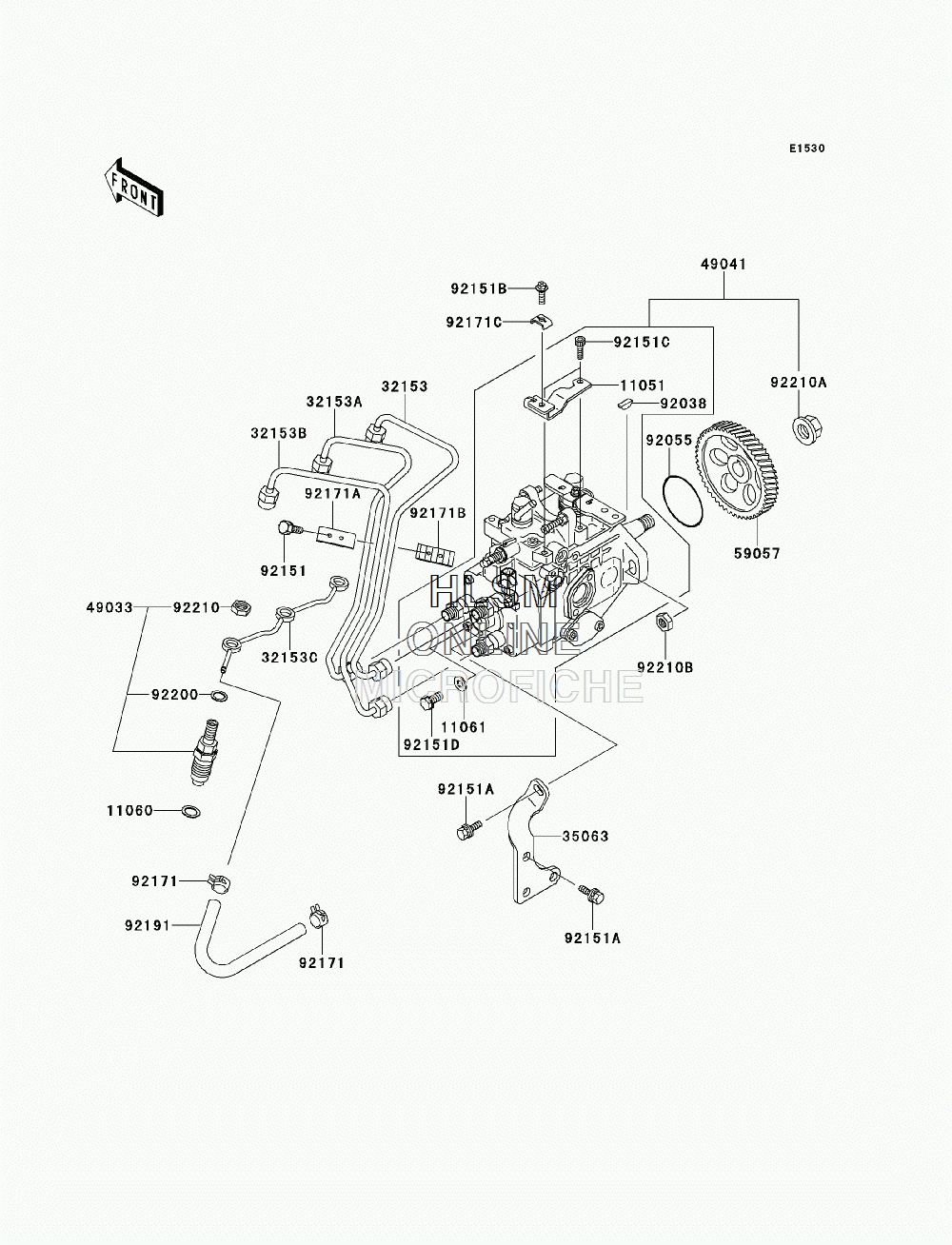

FUEL INJECTION для Kawasaki MULE 4010 DIESEL 4X4 (KAF950F9F) - 2009 года выпуска
-
№АртикулНазвание
-
1105111051-1570 BRACKET, THROTTLEBRACKET, THROTTLE
-
1106011060-1962 GASKET, INJECTION NOZZLEGASKET, INJECTION NOZZLE
-
1106111061-1052 GASKET, INJECTION PUMPGASKET, INJECTION PUMP
-
3215332153-1190 PIPE, RIGHT HANDPIPE, RIGHT HAND
-
32153A32153-1191 PIPE, CNTPIPE, CNT
-
32153B32153-1192 PIPE, LEFT HANDPIPE, LEFT HAND
-
32153C32153-1194 PIPE, NOZZLE LEAKAGEPIPE, NOZZLE LEAKAGE
-
3506335063-1097 STAY, INJECTION PUMPSTAY, INJECTION PUMP
-
4903349033-0018 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4904149041-0001 PUMP-INJECTIONPUMP-INJECTION
-
5905759057-1003 GEAR-HELICAL, INJECTION PUMPGEAR-HELICAL, INJECTION PUMP
-
9203892038-1065 KEYKEY
-
9205592055-1629 RING-O, INJECTION PUMPRING-O, INJECTION PUMP
-
9215192151-1667 BOLT, 6X20BOLT, 6X20
-
92151A92151-1697 BOLT, 8X20BOLT, 8X20
-
92151B92151-1698 BOLT, 5X20BOLT, 5X20
-
92151C92151-1718 BOLT, SOCKETBOLT, SOCKET
-
92151D92151-1885 BOLT, INJECTION PUMPBOLT, INJECTION PUMP
-
9217192171-1165 CLAMP, TUBECLAMP, TUBE
-
92171A92171-1166 CLAMP, INJECTION PIPECLAMP, INJECTION PIPE
-
92171B92171-1167 CLAMP, INJECTION PIPECLAMP, INJECTION PIPE
-
92171C92171-1168 CLAMP, THROTTLECLAMP, THROTTLE
-
9219192191-1450 TUBE, FUELTUBE, FUEL
-
9220092200-1507 WASHER, INJECTION NOZZLEWASHER, INJECTION NOZZLE
-
9221092210-1220 NUT, INJECTION NOZZLENUT, INJECTION NOZZLE
-
92210A92210-1221 NUT, 14MMNUT, 14MM
-
92210B92210-1222 NUT, 8MMNUT, 8MM
