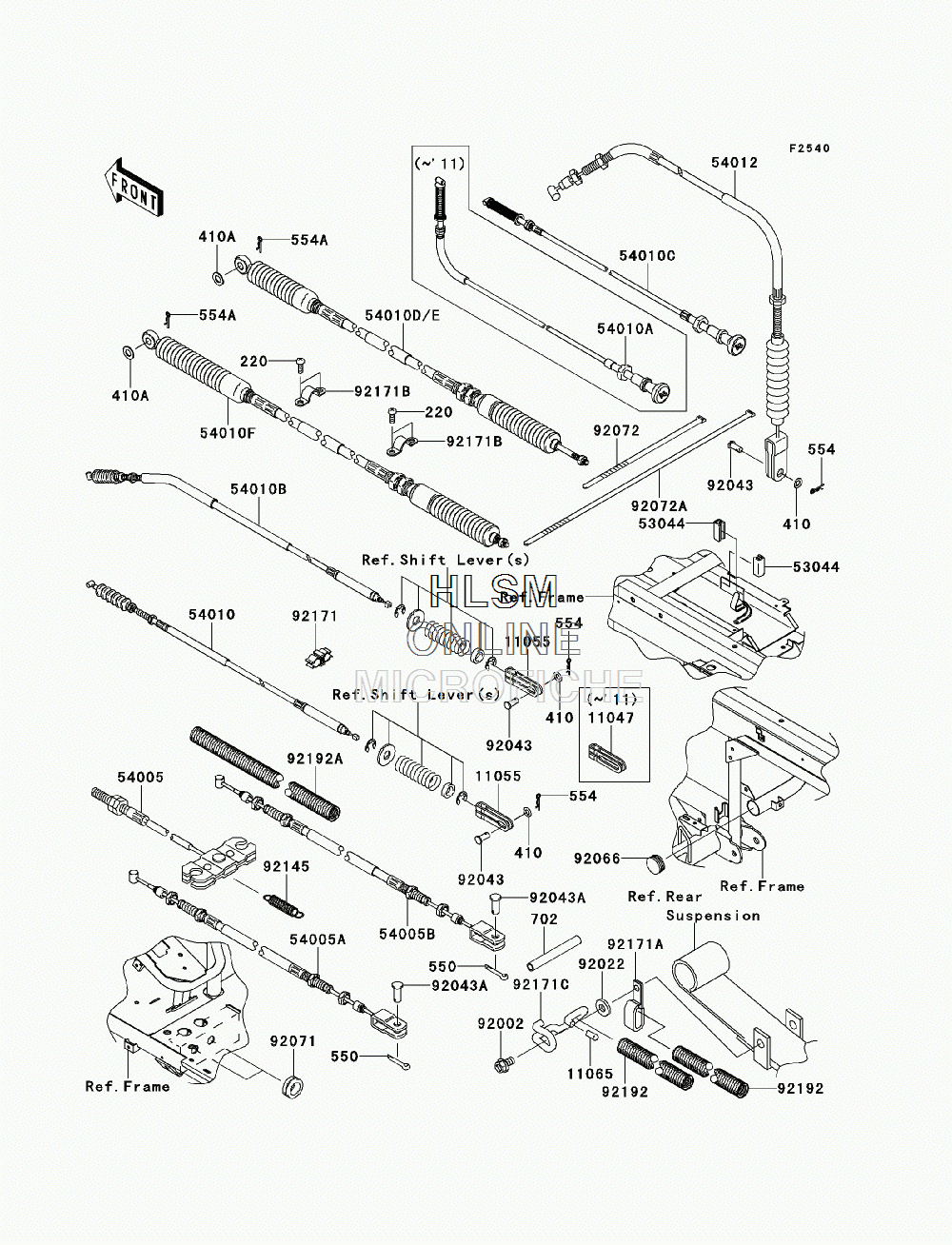

CABLES для Kawasaki MULE 4010 TRANS4X4 DIESEL (KAF950G9F) - 2009 года выпуска
-
№АртикулНазвание
-
220220AA0514 SCREW-PAN-CROS, 5X14SCREW-PAN-CROS, 5X14
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
410A410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
550550AA2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
554554DA0600 PIN-SNAPPIN-SNAP
-
554A554DA0800 PIN-SNAPPIN-SNAP
-
702702A0555 TUBE-RUBBER, 5X8X55TUBE-RUBBER, 5X8X55
-
1104711047-1043 BRACKET, DIFF LOCKBRACKET, DIFF LOCK
-
1106511065-7505 CAPCAP
-
5304453044-7503 TRIM, L=22TRIM, L=22
-
5400554005-1198 CABLE-BRAKE, PARKING, FRONTCABLE-BRAKE, PARKING, FRONT
-
54005A54005-7503 CABLE-BRAKE, PARKING, REAR, LEFT HANDCABLE-BRAKE, PARKING, REAR, LEFT HAND
-
54005B54005-7504 CABLE-BRAKE, PARKING, REAR, RIGHT HANDCABLE-BRAKE, PARKING, REAR, RIGHT HAND
-
5401054010-0045 CABLE, 2-4WDCABLE, 2-4WD
-
54010A54010-0089 CABLE, HOODCABLE, HOOD
-
54010B54010-0111 CABLE, DIFF LOCKCABLE, DIFF LOCK
-
54010E54010-7506 CABLE, HI-LOWCABLE, HI-LOW
-
54010F54010-7508 CABLE, SHIFT CONTROLCABLE, SHIFT CONTROL
-
5401254012-7506 CABLE-THROTTLECABLE-THROTTLE
-
9200292002-1589 BOLT, 8X14BOLT, 8X14
-
9202292022-1317 WASHER, 8.5X20X1.6, (BLACK)WASHER, 8.5X20X1.6, (BLACK)
-
9204392043-092 PIN, 6X11PIN, 6X11
-
92043A92043-1039 PINPIN
-
9206692066-7503 PLUGPLUG
-
9207192071-1027 GROMMETGROMMET
-
9207292072-1239 BAND, L=188BAND, L=188
-
92072A92072-3872 BAND, L=368.3BAND, L=368.3
-
9214592145-7506 SPRINGSPRING
-
9217192171-0129 CLAMPCLAMP
-
92171A92171-0176 CLAMP, CABLECLAMP, CABLE
-
92171B92171-1203 CLAMPCLAMP
-
92171C92171-1210 CLAMP, BRAKE CABLECLAMP, BRAKE CABLE
-
9219292192-1243 TUBE, CORRUGATED, 13X16.7X240TUBE, CORRUGATED, 13X16.7X240
-
92192A92192-3715 TUBE, PROTECTOR, 13.2X17.5X350TUBE, PROTECTOR, 13.2X17.5X350
