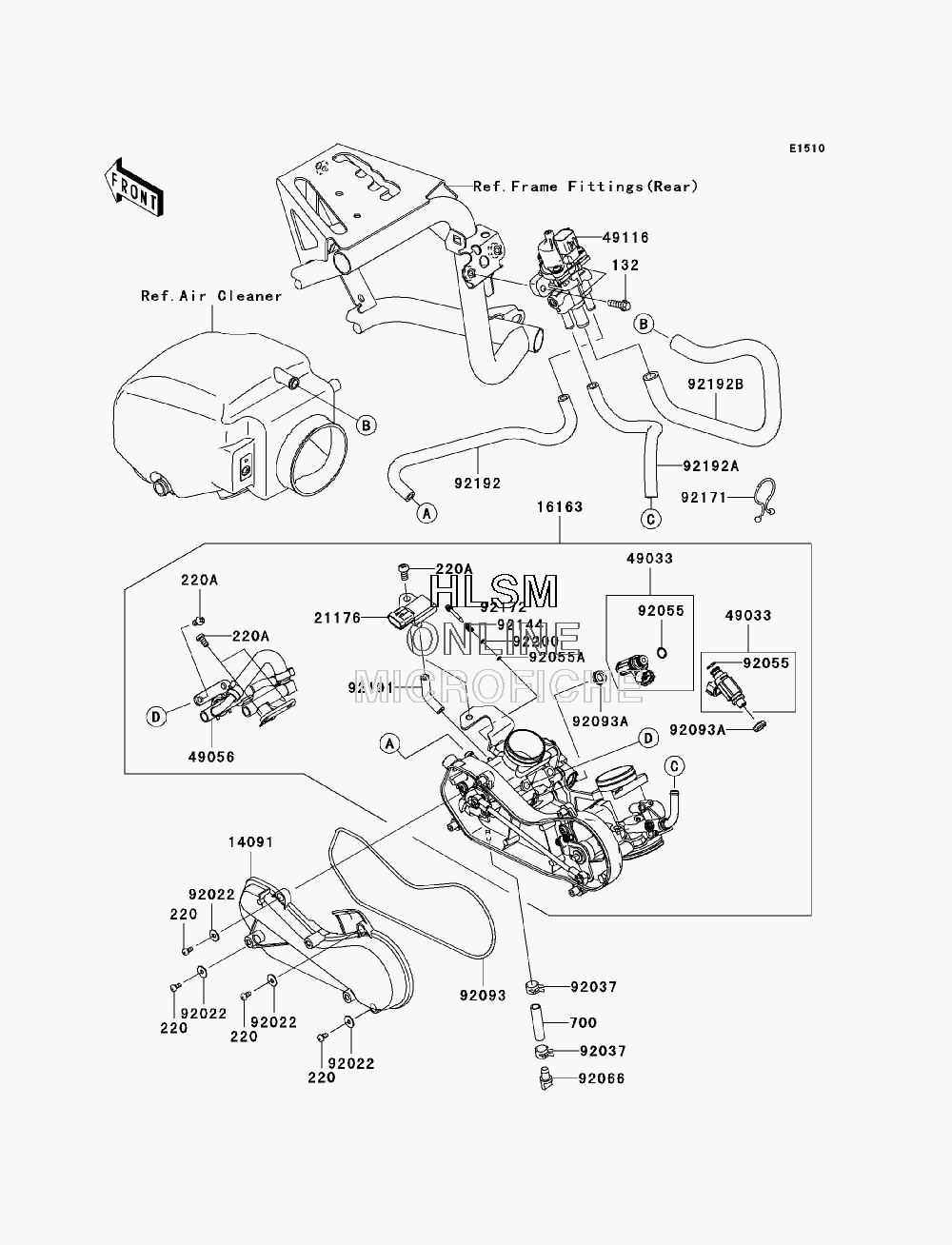

THROTTLE BODY для Kawasaki TERYX 750 FI 4X4 (KRF750G9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BD0618 BOLT-FLANGED-SMALL, 6X18BOLT-FLANGED-SMALL, 6X18
-
220220AA0408 SCREW-PAN-CROSS, 4X8SCREW-PAN-CROSS, 4X8
-
220A220AA0612 SCREW-PAN-CROSS, 6X12SCREW-PAN-CROSS, 6X12
-
700700Q0740 TUBE-PVCTUBE-PVC
-
1409114091-1731 COVER, THROTTLE LINKCOVER, THROTTLE LINK
-
1616316163-0137 THROTTLE-ASSY, 34EISTHROTTLE-ASSY, 34EIS
-
2117621176-0058 SENSOR, PRESSURESENSOR, PRESSURE
-
4903349033-1060 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0028 PIPE-INJECTIONPIPE-INJECTION
-
4911649116-0026 VALVE-ASSY, ISCVALVE-ASSY, ISC
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9203792037-2113 CLAMPCLAMP
-
9205592055-1622 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
92055A92055-1658 RING-O, AIR SCREWRING-O, AIR SCREW
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9209392093-0082 SEALSEAL
-
92093A92093-0127 SEALSEAL
-
9214492144-1674 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
9217192171-0876 CLAMPCLAMP
-
9217292172-0156 SCREWSCREW
-
9219192191-1552 TUBE, 3.2X7.4X70TUBE, 3.2X7.4X70
-
9219292192-0765 TUBE, ISC-FRONT THROBOTUBE, ISC-FRONT THROBO
-
92192A92192-0766 TUBE, ISC-REAR THROBOTUBE, ISC-REAR THROBO
-
92192B92192-0767 TUBE, ISC-DUCTTUBE, ISC-DUCT
-
9220092200-1564 WASHER, PILOT AIR SCREWWASHER, PILOT AIR SCREW
