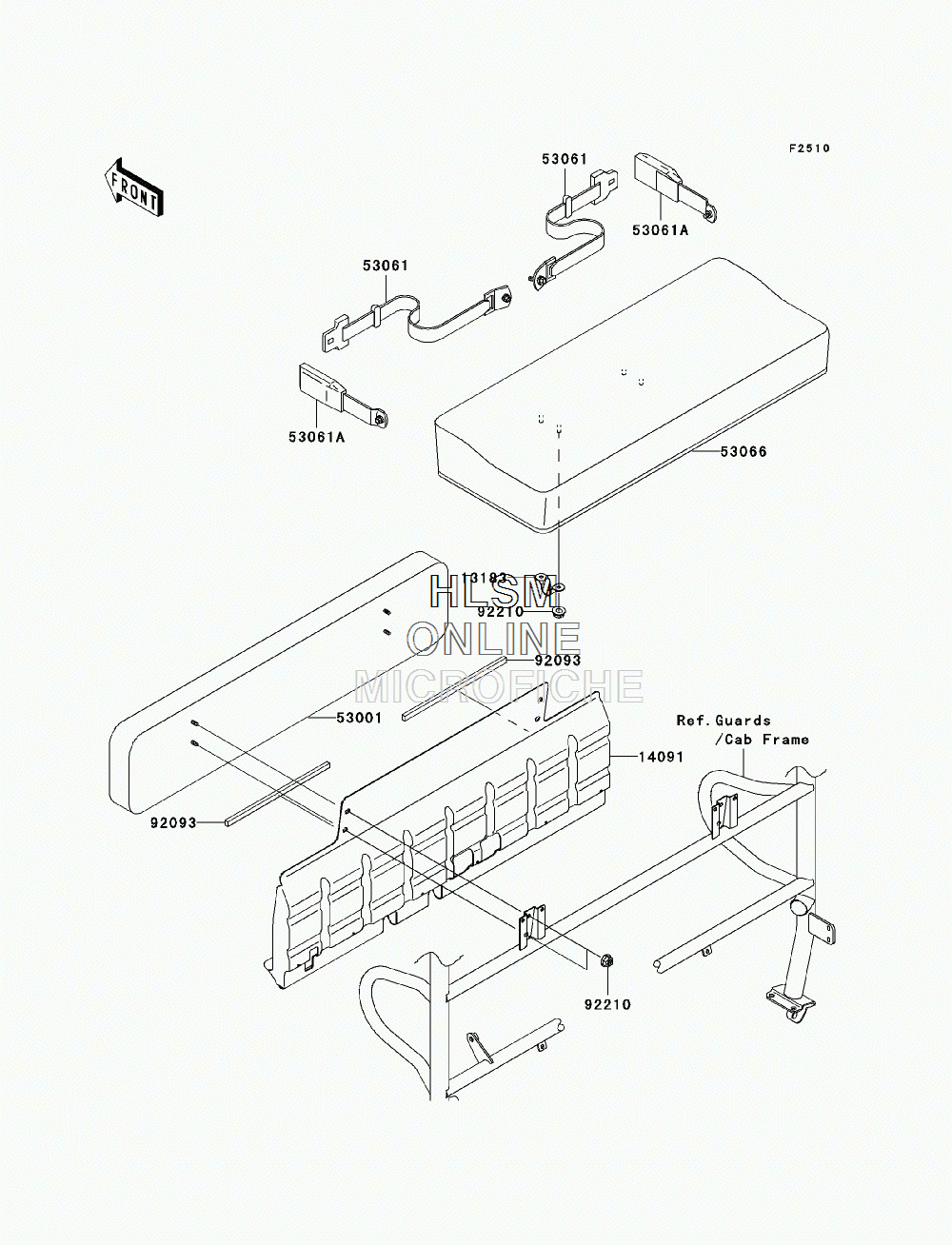

SEAT для Kawasaki MULE 4000 (KAF620PAF) - 2010 года выпуска
-
№АртикулНазвание
-
1318313183-1400 PLATE,SEATPLATE,SEAT
-
1409114091-0529 COVER,SEAT BACKCOVER,SEAT BACK
-
5300153001-1584-MA SEAT-ASSY,BACK,BLACKSEAT-ASSY,BACK,BLACK
-
5306153061-1013 BELT-SEAT,CATCH PLATEBELT-SEAT,CATCH PLATE
-
53061A53061-1014 BELT-SEAT,BUCKLEBELT-SEAT,BUCKLE
-
5306653066-7502-MA SEAT-ASSY, FRONT,LWR,BLACKSEAT-ASSY, FRONT,LWR,BLACK
-
9209392093-0024 SEAL,L=408SEAL,L=408
-
9221092210-0005 NUT,FLANGED,LOCK,8MMNUT,FLANGED,LOCK,8MM
