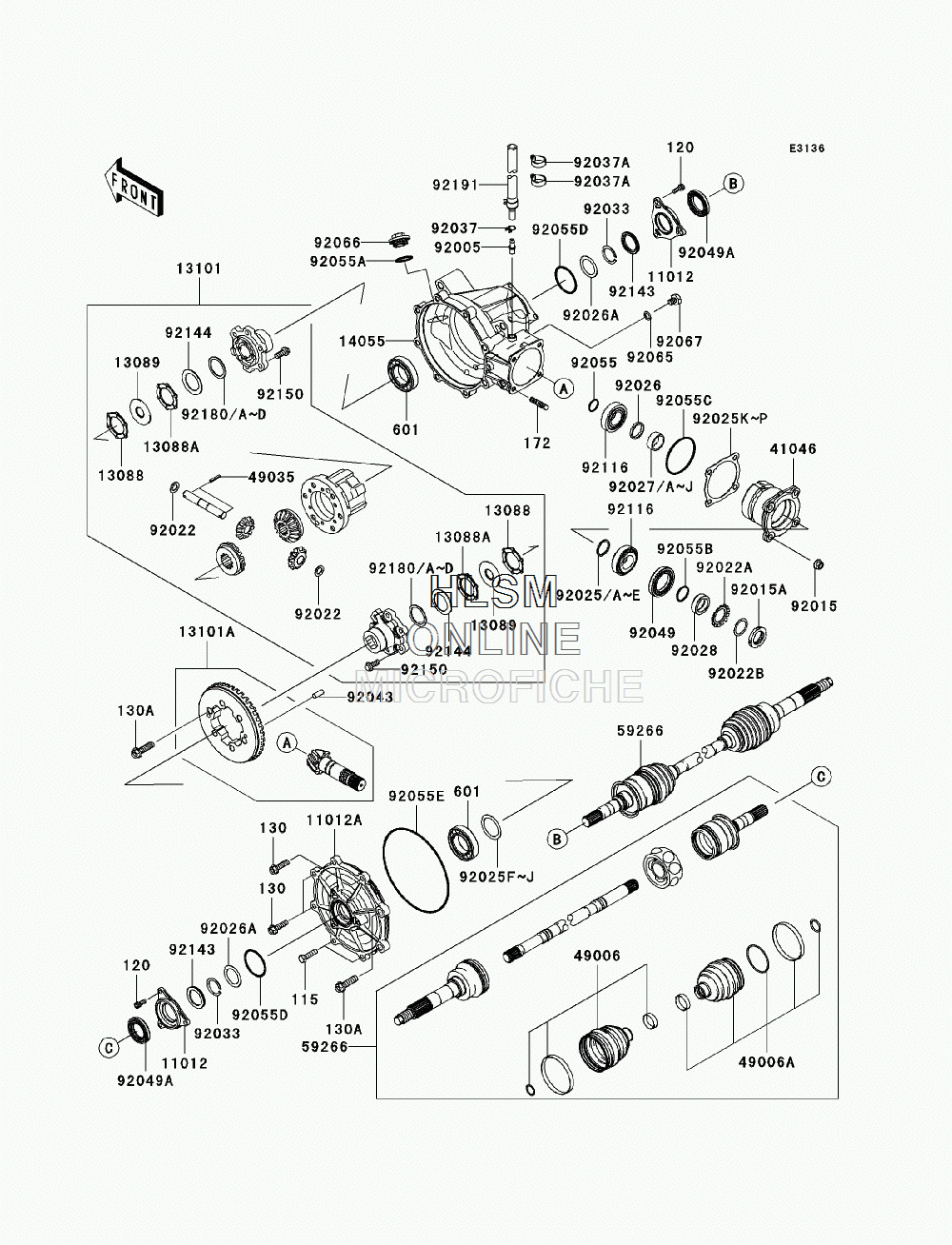

DRIVE SHAFT (FRONT) для Kawasaki MULE 4010 TRANS4X4 (KAF620RAFA) - 2010 года выпуска
-
№АртикулНазвание
-
1101211012-1648 CAPCAP
-
11012A11012-1649 CAP,GEAR CASECAP,GEAR CASE
-
1308813088-1075 PLATE-FRICTION,T=2.8PLATE-FRICTION,T=2.8
-
13088A13088-1078 PLATE-FRICTION,T=2.4PLATE-FRICTION,T=2.4
-
1308913089-1083 PLATE-CLUTCHPLATE-CLUTCH
-
1310113101-1190 GEAR-ASSYGEAR-ASSY
-
13101A13101-5081 GEAR-ASSY,BEVELGEAR-ASSY,BEVEL
-
1405514055-1114 CASE-GEAR, FRONTCASE-GEAR, FRONT
-
4104641046-1089 HOUSING-BEARINGHOUSING-BEARING
-
4900649006-0086 BOOT,UJBOOT,UJ
-
49006A49006-0087 BOOT,DOJBOOT,DOJ
-
4903549035-1056 PIN-SPRINGPIN-SPRING
-
5926659266-0034 JOINT-BALLJOINT-BALL
-
9200592005-1127 FITTING,BREATHERFITTING,BREATHER
-
9201592015-1402 NUT,8MMNUT,8MM
-
92015A92015-1768 NUT,25MMNUT,25MM
