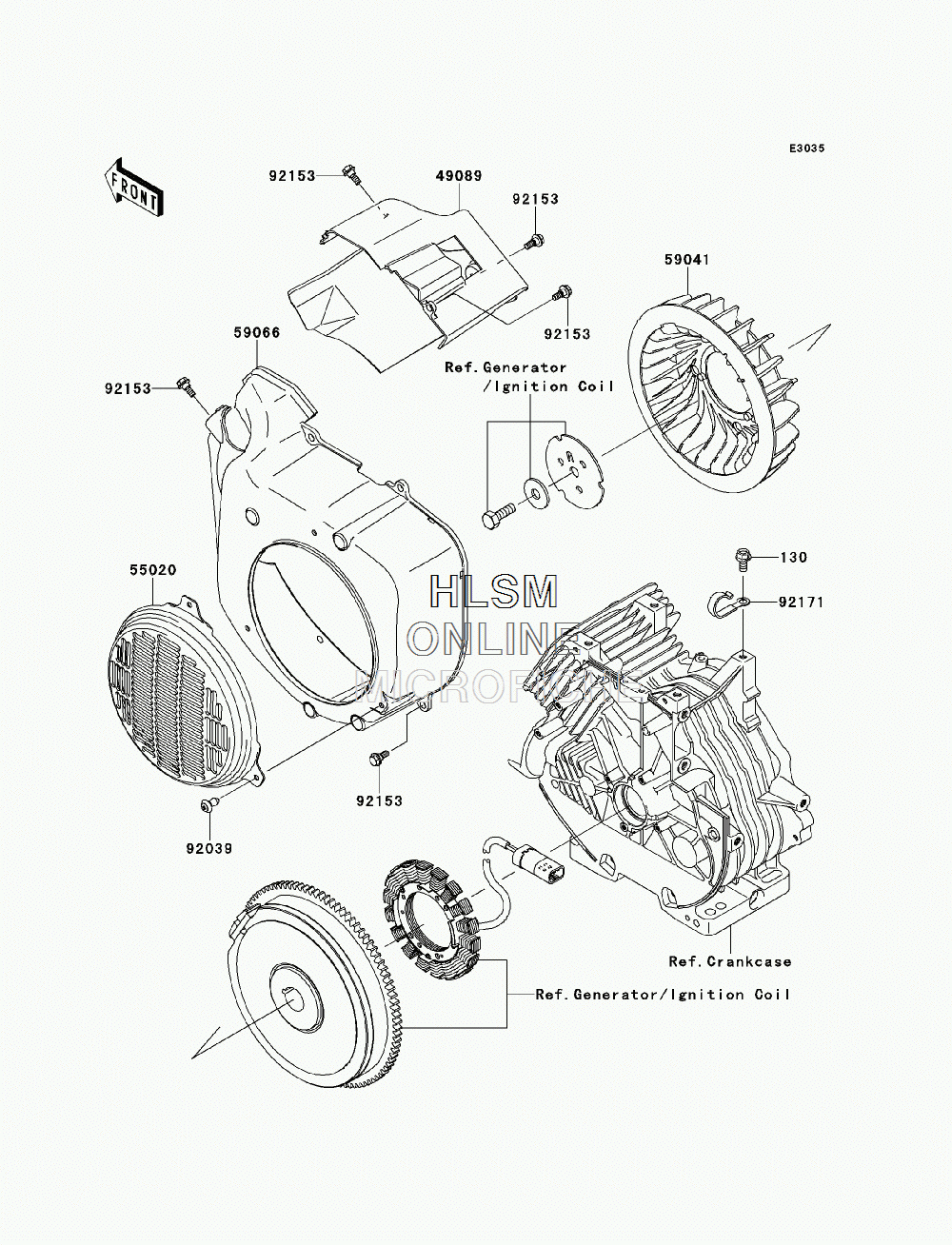

COOLING для Kawasaki MULE 610 4X4 XC (KAF400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130AA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
4908949089-7089 SHROUD-ENGINESHROUD-ENGINE
-
5502055020-7008 GUARDGUARD
-
5904159041-0007 FANFAN
-
5906659066-7059 HOUSING-FANHOUSING-FAN
-
9203992039-7004 RIVET, GUARDRIVET, GUARD
-
9215392153-7007 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9217192171-7005 CLAMPCLAMP
